Park/Neutral Switch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. The park/neutral switch is located on transaxle, just below shift cable and manual control lever. See Fig 1.
  2. Apply parking brake. Disconnect shift cable from manual control lever. Remove bolt and manual control lever. Remove bolts and the park/neutral switch.

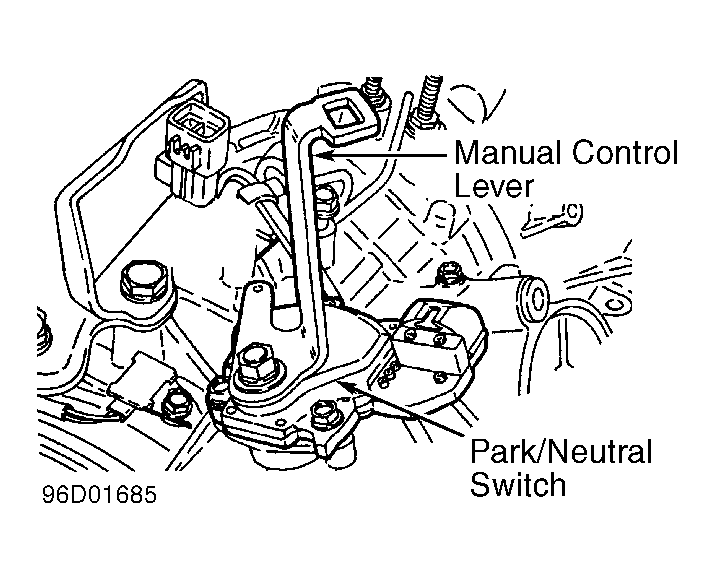

Fig 1: Identifying Manual Control Lever & Park/Neutral Switch
G96D01685Courtesy of CHRYSLER CORP.
