Fuel Pump (Front-Wheel Drive): Removal
- Fuel pump is located inside fuel tank. Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE

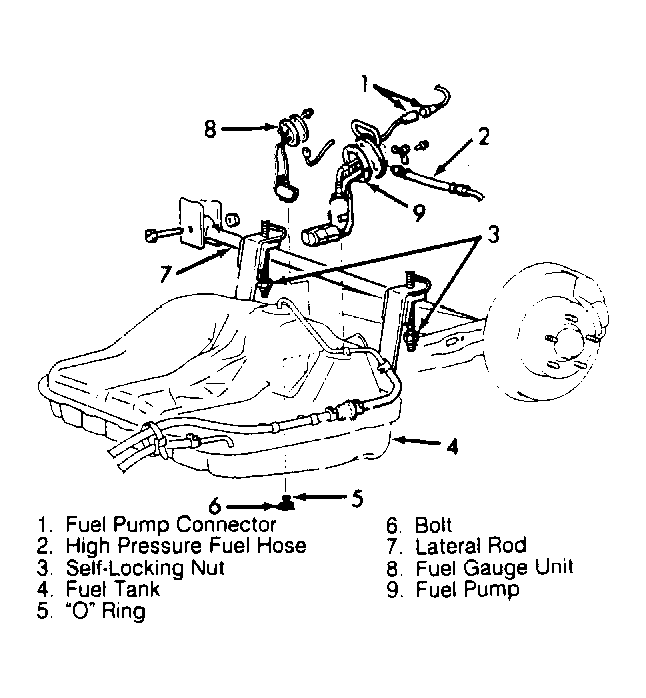

. Drain fuel from tank. Disconnect high pressure fuel hose. See Fig 1
. Disconnect fuel pump connector.
- Lower fuel tank by loosening tank strap self-locking nuts to end of stud bolt. DO NOT
remove self-locking nuts completely. See Fig 1
. Remove lateral rod bolt. Disconnect lateral rod from body bracket. Remove bolt and "O" ring from bottom of fuel tank. Remove bolts and fuel pump.
