Circuit Schematic

WARNING: This page is about a different car, the 2009 Dodge Durango and 2009 Chrysler Aspen. However, it is still accessible from the selected car via links, so may be relevant.

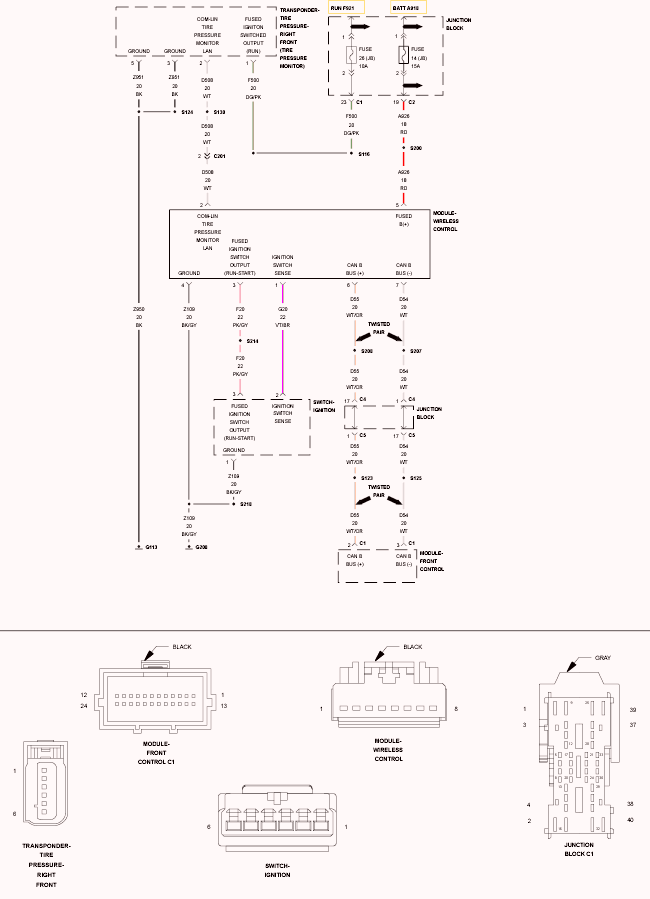

Fig 1: Right Front Tire Pressure Trigger Module Schematic
GC0106996Courtesy of CHRYSLER LLC
