No Response From PEM (Passive Entry Module): Notes

WARNING: This page is about a different car, the 2012 Dodge Challenger. However, it is still accessible from the selected car via links, so may be relevant.

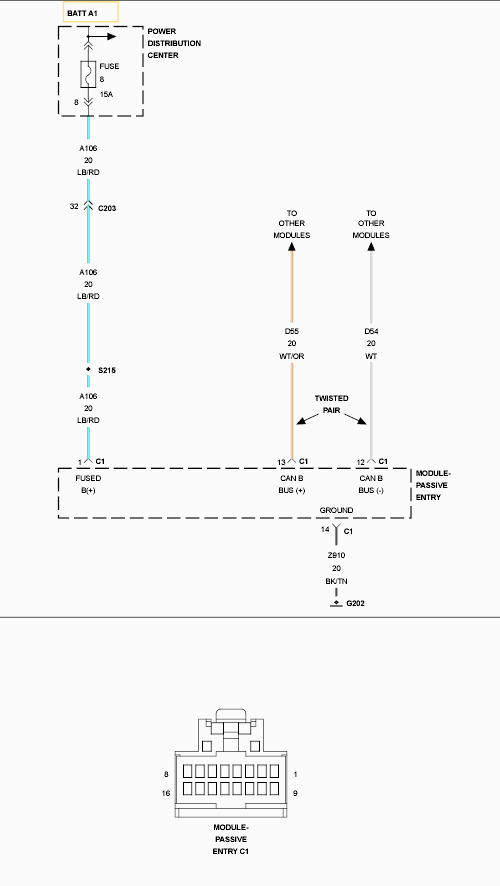

Fig 1: Passive Entry Module Circuit Schematic

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

NOTE:

The Keyless Go Security Module feature is a function of the Passive Entry Module (PEM). The diagnostic procedures for the Keyless Go Security Module are performed on the PEM.
