No Response From Orc (Occupant Restraint Controller Module): Notes

WARNING: This page is about a different car, the 2012 Dodge Challenger. However, it is still accessible from the selected car via links, so may be relevant.

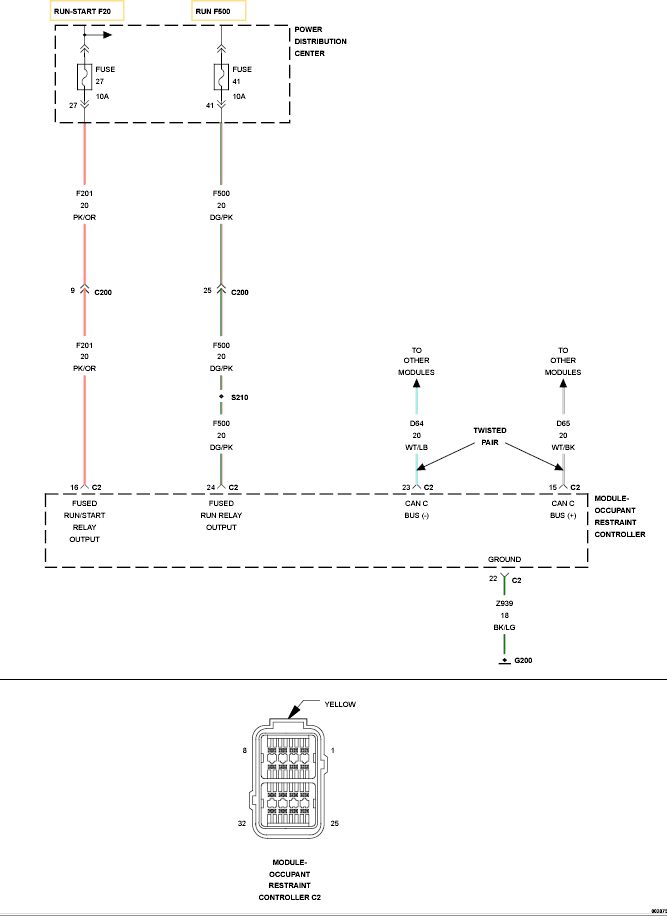

Fig 1: Occupant Restraint Controller Module Circuit Schematic

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
