Diagnosis And Testing - Power Mirror Switch: Notes
- Remove the power mirror switch (Refer to REMOVAL
).
- Disconnect wiring harness connector from switch.

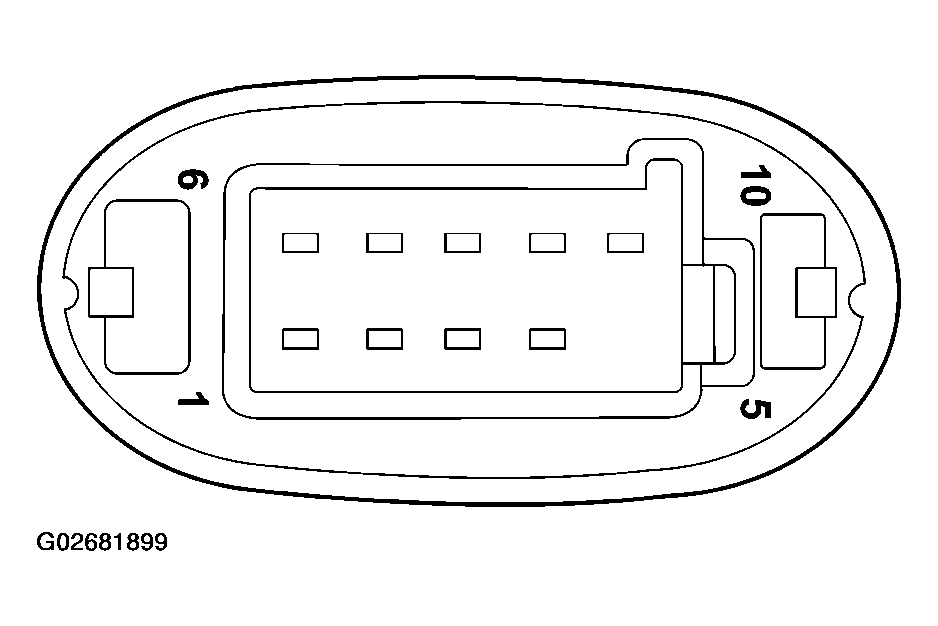

- Using a ohmmeter, test for continuity between the terminals of the switch (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- If results shown in the table are not obtained, replace the switch.
