Power Mirror Switch: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the door trim panel (Refer to - TRIM PANEL - REMOVAL ).
  3. Disconnect the electrical harness connector and remove switch (Fig 1 ).

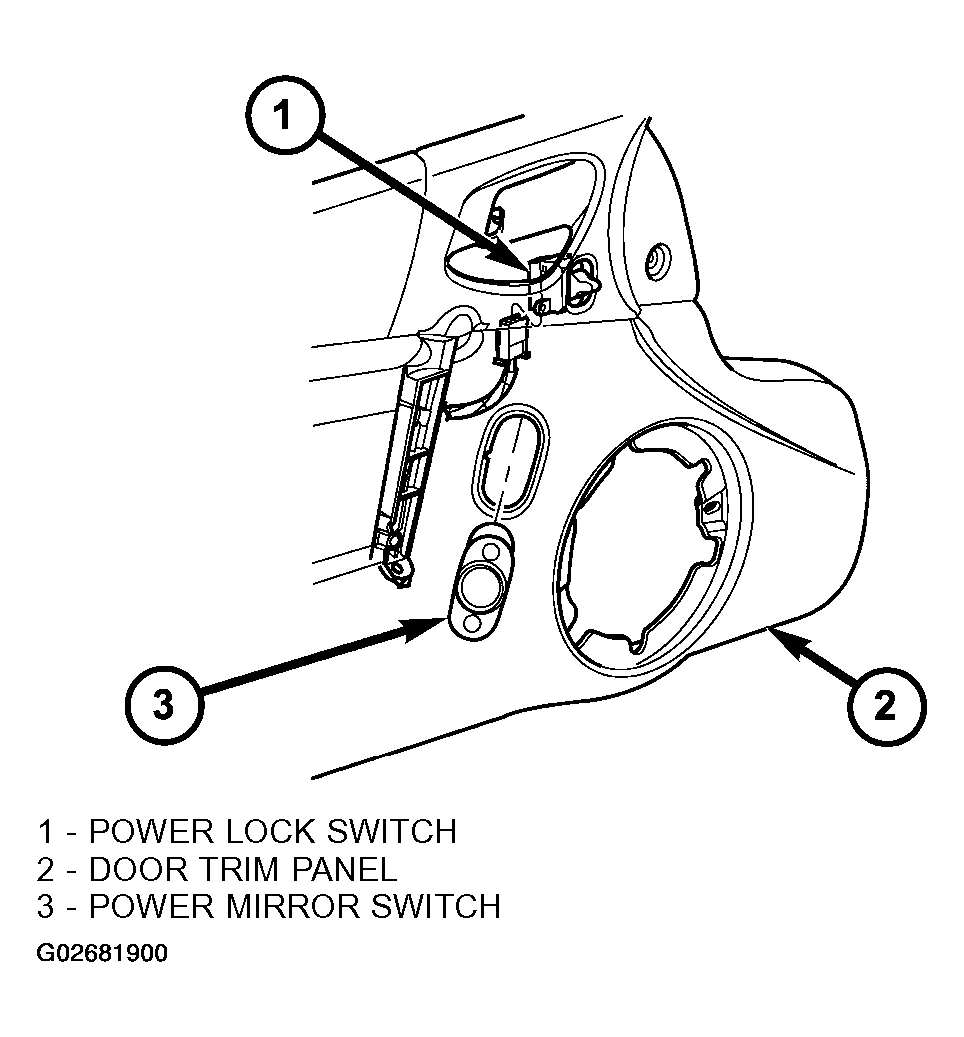

    Fig 1: Removing Power Mirror Switch
    G02681900Courtesy of DAIMLERCHRYSLER CORP.
