Initial Installation - RHD

WARNING: This page is about a different car, the 2025 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
    NOTE: Before starting the installation procedure, check that the control module is compatible with the vehicle model on which it will be installed.
    Carefully follow the instructions on positioning and securing the control module described in this procedure. Failure to respect indications may lead to incorrect system operation.
  2. Make a note or take a photo of the data on the label (1) at the rear of the module. This data are necessary for the test procedure at the end of the installation.
    GC0183625Courtesy of CHRYSLER GROUP, LLC
  3. Apply a strip of biadhesive Velcro (1) to the back of the T-box module.
    GC0183068Courtesy of CHRYSLER GROUP, LLC
  4. Apply the Coroplast covering tape (1) to the parts of the T-box module in contact with the vehicle to prevent vibration noise when it is mounted on the vehicle.
    GC0178875Courtesy of CHRYSLER GROUP, LLC
  5. Verify that the Coroplast tape (2) around the module wiring reaches the connector. Add some Coroplast tape if necessary.
    GC0181861Courtesy of CHRYSLER GROUP, LLC
  6. Remove the glove compartment. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .
  7. Remove the passenger cowl trim. Refer to PANEL, COWL TRIM, REMOVAL AND INSTALLATION .
  8. Release the lower B pillar trim and move it aside without removing it completely. Refer to PANEL, B-PILLAR TRIM, LOWER, REMOVAL AND INSTALLATION .
  9. Clean the contact surface (1) where the T-box module will be fixed using isopropyl alcohol, heptane or an equivalent degreaser.
    GC0183804Courtesy of CHRYSLER GROUP, LLC
  10. Position the T-box (1a) on the bracket with ties (1b) with the connector socket facing the bulkhead.
    GC0183822Courtesy of CHRYSLER GROUP, LLC

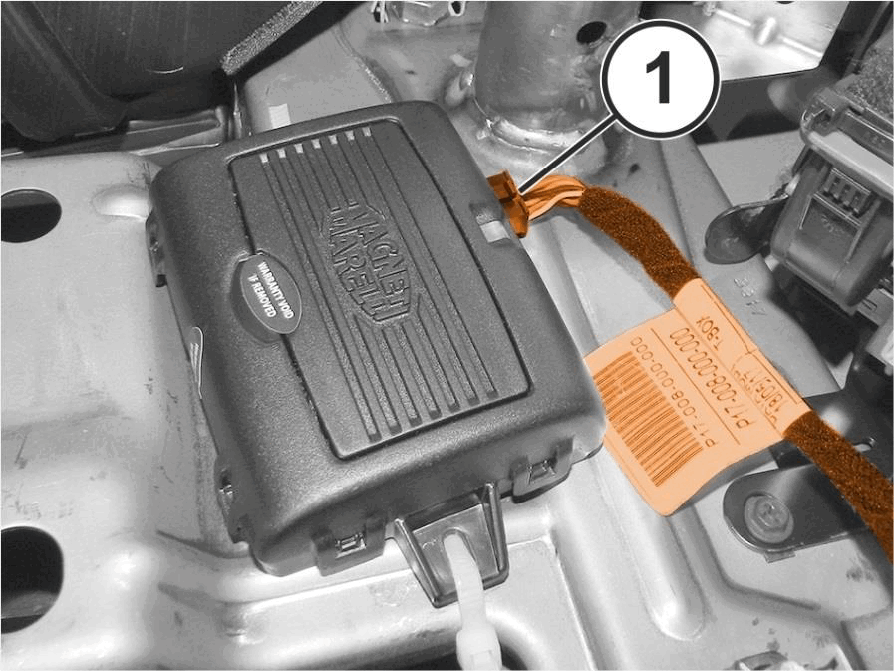

  11. Connect the T-box harness connector (1) to the T-box module.
    GC0202711Courtesy of CHRYSLER GROUP, LLC

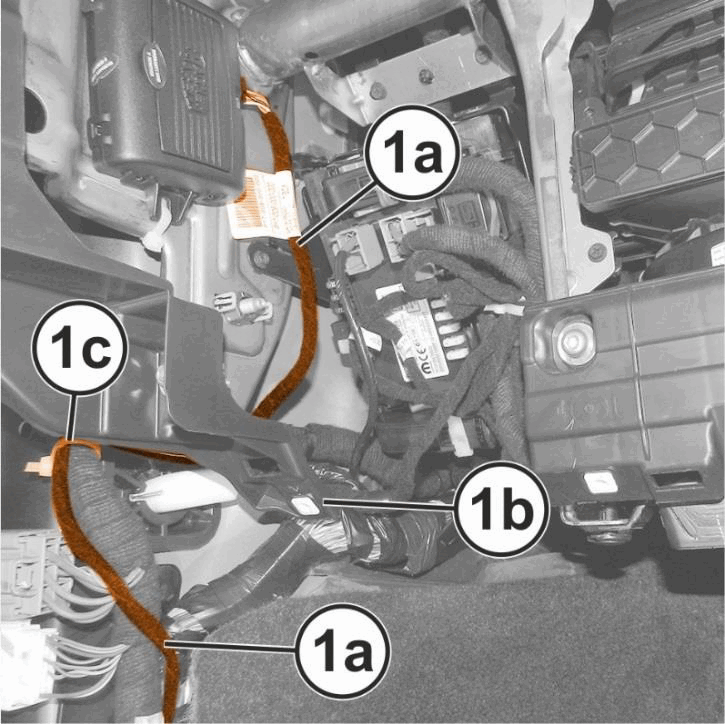

  12. Connect the T-box harness (1a) to the T-box and pass the wiring harness behind the plastic moulding (1b) and tie it to the vehicle wiring along the interior side panel (1c).
    GC0183811Courtesy of CHRYSLER GROUP, LLC

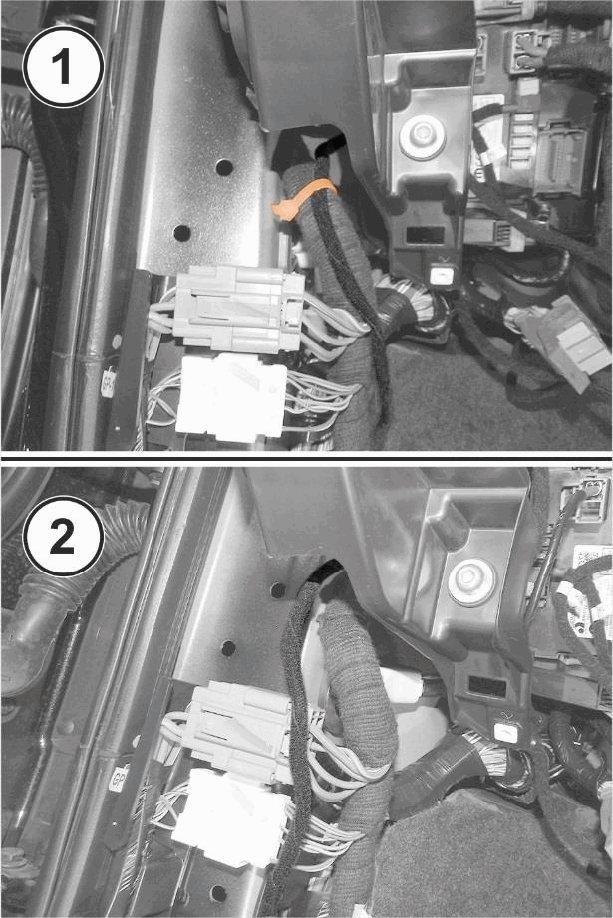

  13. Secure the module wire harness to the vehicle wire harness in the correct position (1). Do NOT  allow the module harness to be left unsecured (2).
    GC0202735Courtesy of CHRYSLER GROUP, LLC

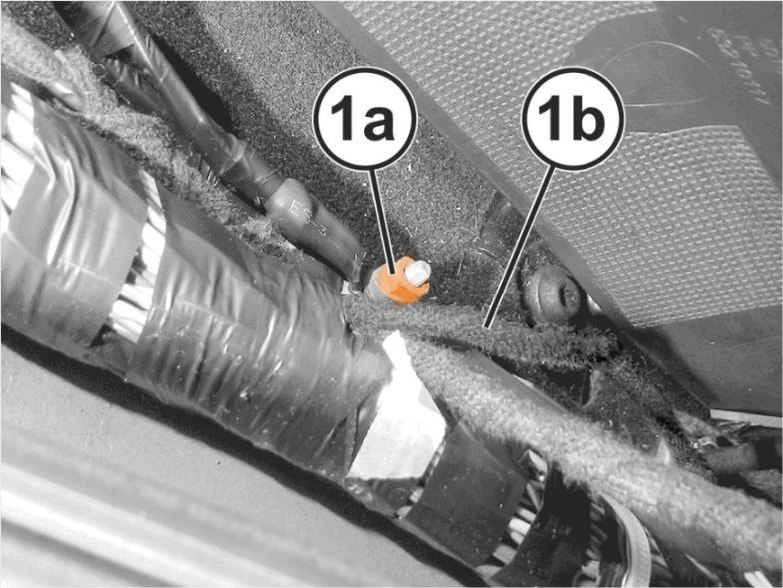

  14. Loosen the nut (1a) on the ground stud in the kick panel area and fit the ground terminal to the ground stud on top of the existing ground terminals and install the ground nut and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
    GC0202795Courtesy of CHRYSLER GROUP, LLC
  15. If there are previously removed wires connected to the ground stud, be careful to insert the earth wire of the T-box harness so that it is offset correctly (1) by at least 45° with respect to the previous ones. Do NOT  stack the ring terminals (2).
    GC0202644Courtesy of CHRYSLER GROUP, LLC

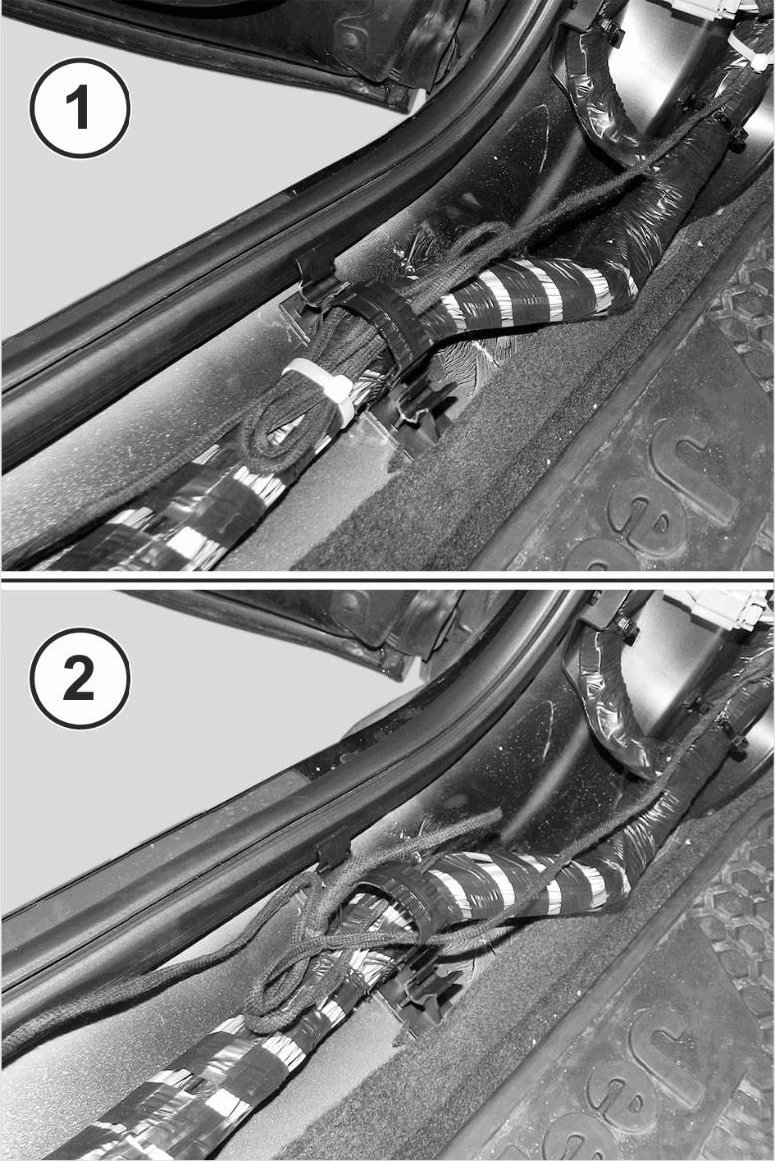

  16. Staring at the center of the kick plate, gather the branch of the module wiring that comes from the module and the ground stud terminal. Open the vehicle wiring clip, pass the cable, close the wiring clip and use a cable tie to consolidate them (1). Do NOT  allow the wires to stay unsecured (2).
    GC0202745Courtesy of CHRYSLER GROUP, LLC
  17. Disconnect electrical connector C3 (1) from the Body Control Module (BCM) and remove the inner connection covering block.
    GC0180718Courtesy of CHRYSLER GROUP, LLC
  18. Locate pin (1) (+ 50) (red/green cable cross-section 2.5 mm) on the connector. Cut and move aside the sheathing of the vehicle wiring.
    NOTE: Be sure on the next step to interrupt the cable at a distance of 150-200 mm from the connector to be able to completely cover the work performed with new tape.
    NOTE: Take great care not to get the cables to be joined dirty as this will adversely affect the continuity of the electrical conduction. While heating the thermal shrinking tubs, as a result of the high temperatures reached, the drier and the heat shield must not, under any circumstances, come into contact with cladding parts or other components.
    NOTE: The air heater (drier) used in this procedure is commercially available.
    NOTE: Recommend applying insulating tape on the two wires separately and then joining the wires to the vehicle wiring and applying more tape to make it more compact.
    GC0202761Courtesy of CHRYSLER GROUP, LLC

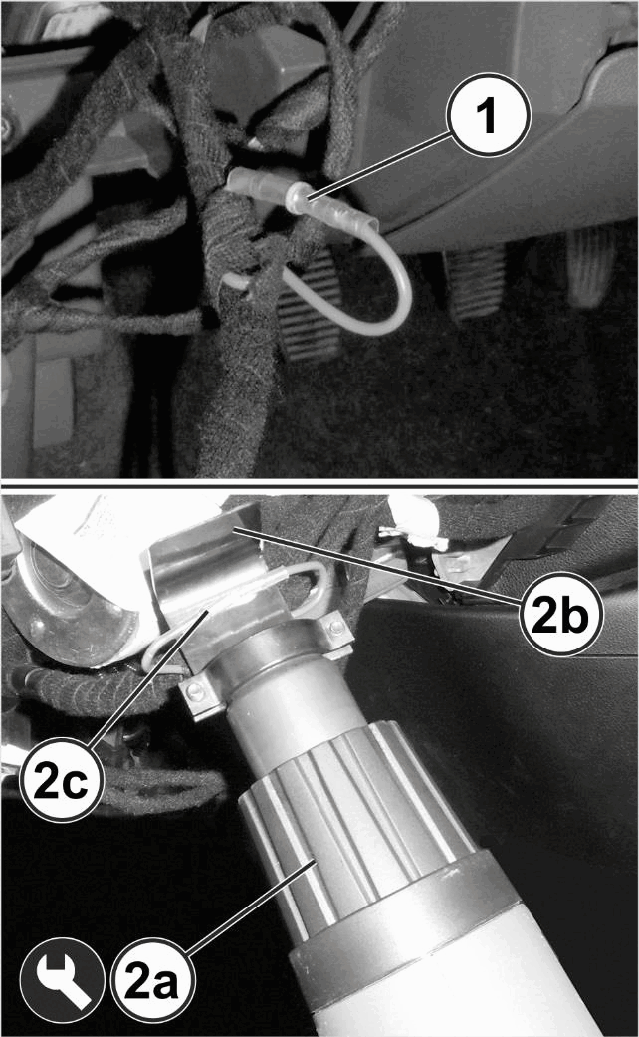

  19. Use an air heater (2a) with heat shield (2b) to heat the thermal shrinking tubes (2c) until the ring of solder melts; then wait for it to cool.
    NOTE: Apply insulating tape to the two wires individually and then combine the wires with the main wiring and tape again to create a more compact bundle.
  20. Remove fuse F36 (1) from the BCM and fit it in the twin fuse holder of the module wiring.
    NOTE: Fuse F36 is the third from the top right (blue) in the right-hand row in the Body Computer.
    GC0179310Courtesy of CHRYSLER GROUP, LLC
  21. Install the twin fuse holder (1) in the position previously occupied by fuse F36.
    GC0179396Courtesy of CHRYSLER GROUP, LLC
  22. Remove fuse F51 from the Body computer and install it in the twin fuse holder.
    NOTE: Fuse F51 (red) is the fourth from the bottom in the left-hand row in the Body Computer.
  23. Install the twin fuse holder in the position previously occupied by fuse F51.

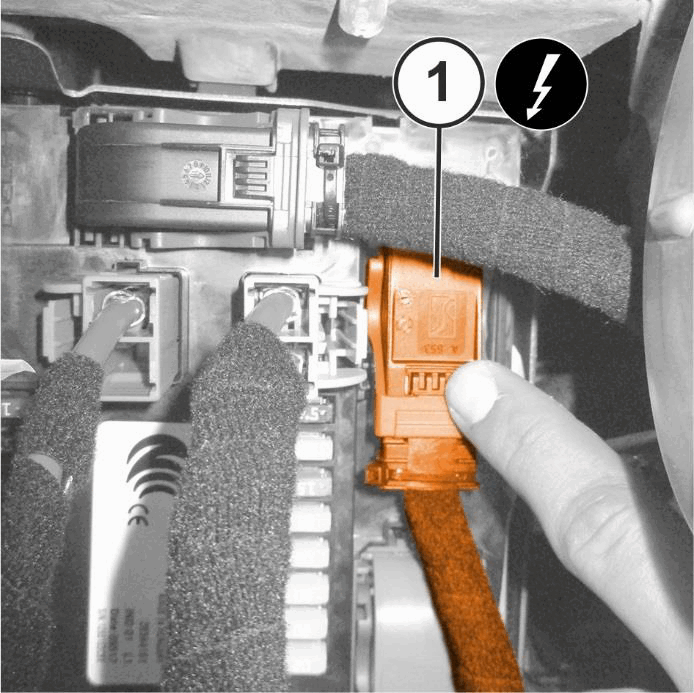

  24. Disconnect the electrical connector C6 (1) from the BCM and remove the inner connection covering.
    NOTE: When done, restore the connector wiring with a new tie.
    GC0183812Courtesy of CHRYSLER GROUP, LLC
  25. Be sure on the next step to interrupt the cable at a distance of 150-200 mm from the connector to be able to completely cover the work performed with new tape.
    GC0202770Courtesy of CHRYSLER GROUP, LLC

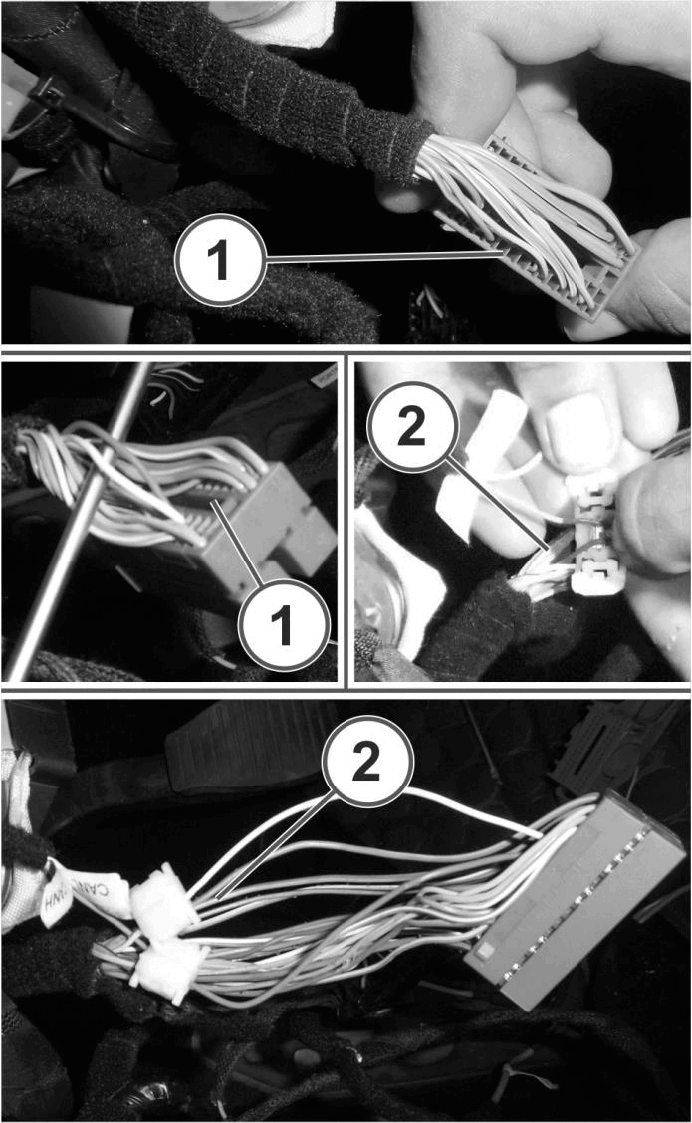

  26. Locate pins 57 CAN-L (1) and 58 CAN-H (1).
  27. Using signal taps (2) (cross-section area 0.35 mm), connect the two wires CAN-L (white) and CAN-H (blue) to the corresponding loose wires in the module harness.

    When done, restore the connector wiring with a new tie.

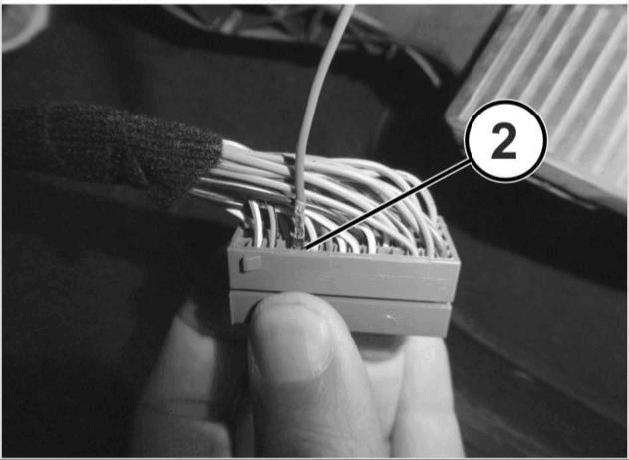

  28. Connect the door opening signal wire (green) of the new T-box harness to the pin 11 position (2) and replace the internal connection cover block of the BCM electrical connector F.
    NOTE: Tape should be applied to the bundle of cables to increase its compactness.
    GC0202759Courtesy of CHRYSLER GROUP, LLC

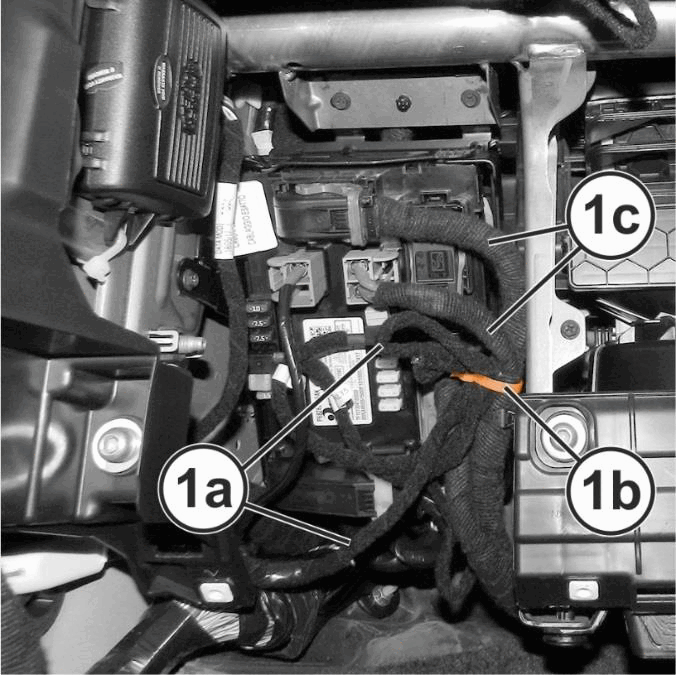

  29. Starting at BCM, gather the module wiring (1a) and secure it with a cable tie (1b) to the vehicle wiring (1c).
    GC0202750Courtesy of CHRYSLER GROUP, LLC

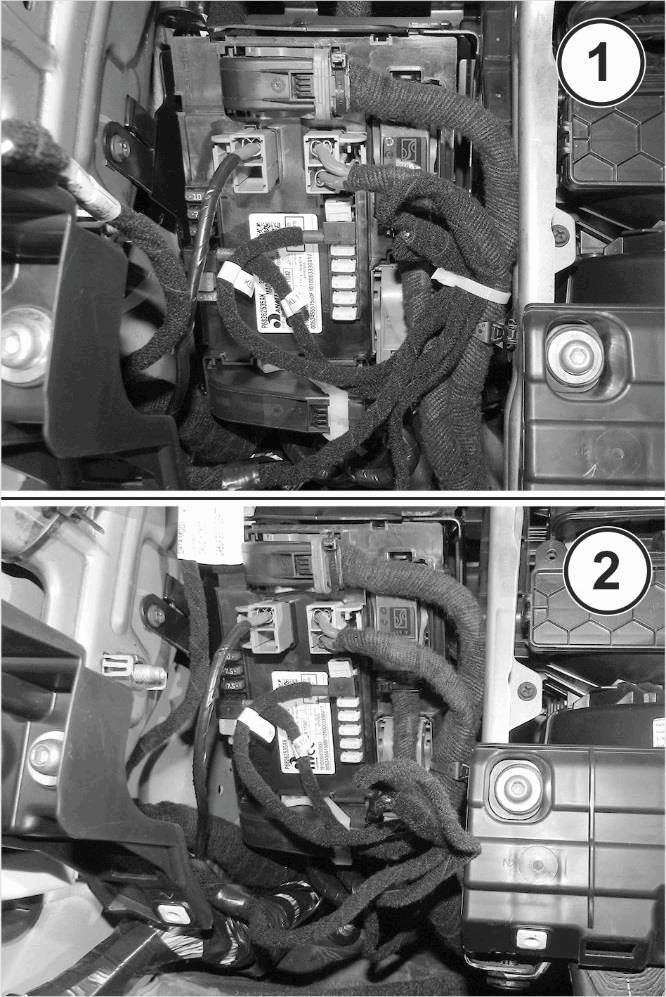

  30. Do NOT  leave the module wiring unsecured (2). The module wiring MUST  be secured (1).
    GC0202788Courtesy of CHRYSLER GROUP, LLC
  31. Install the B-Pillar panel. Refer to PANEL, B-PILLAR TRIM, LOWER, REMOVAL AND INSTALLATION .
  32. Install the passenger cowl trim. Refer to PANEL, COWL TRIM, REMOVAL AND INSTALLATION .
  33. Install the glove compartment. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .
    NOTE: Using the scan tool, select the "Connected Services " tab, select "Mopar Connect" and choose "Test-Operation check" option. Start a new test and complete steps 2 and 3 of the "Test App" manual (which can be downloaded from the Help section).
  34. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
    NOTE: Complete the test procedure to check that the installation is operating correctly (to resume a previously suspended procedure, see step 9 of the "Test App" manual). To access the Test procedure, connect to the scan tool, select the "Connected Services" tab, select "MOPAR Connect" and choose the "Test- Operation check" option.
  35. On completion of installation of the T-box module, connect the diagnosis instrument to the vehicle's EOBD socket, locate the BCM module and check for errors.
