Torque Specifications
WARNING: This page is about a different car, the 2025 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|
| CALLOUT |
DESCRIPTION |
SPECIFICATION |
COMMENT |

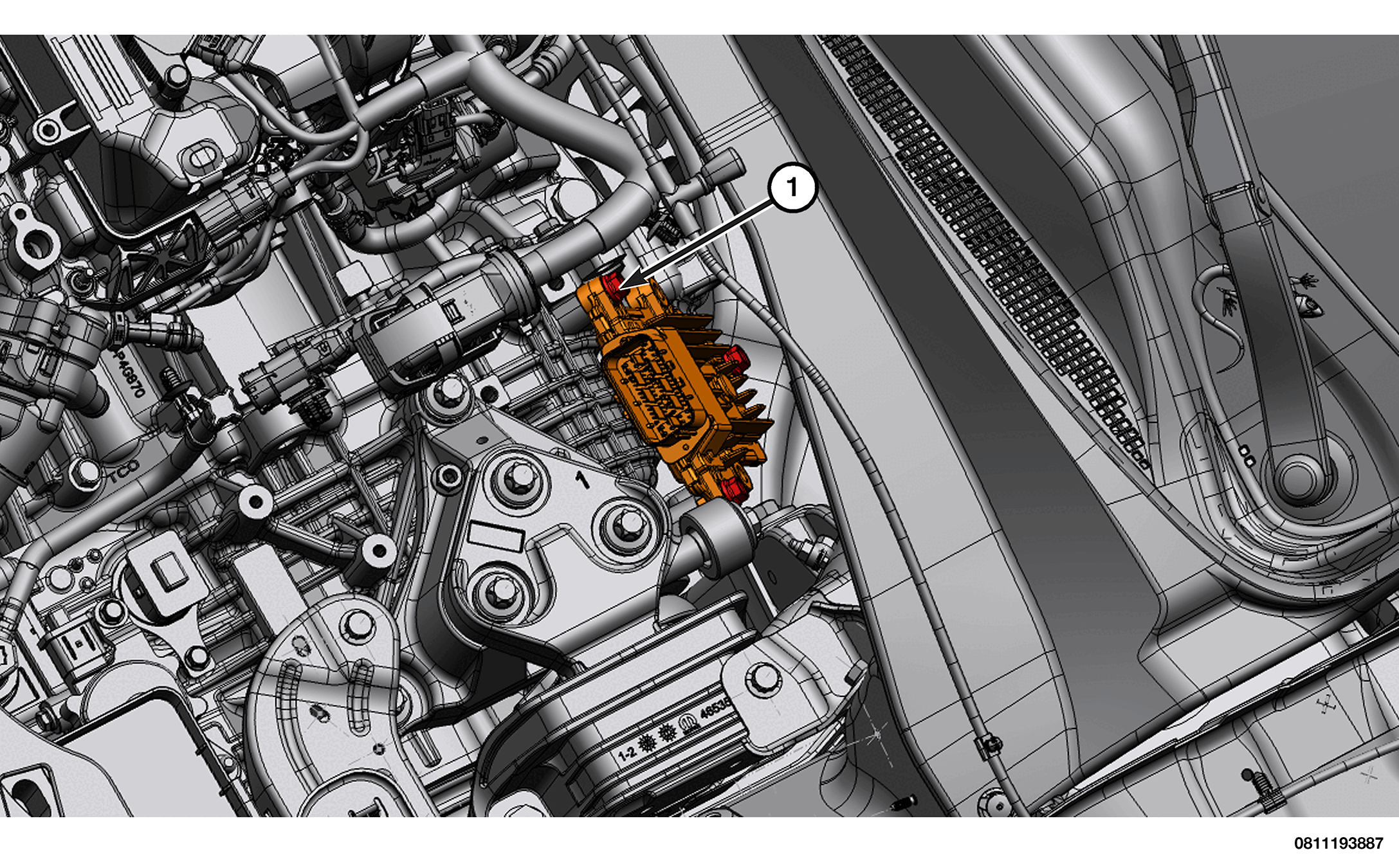

| 1 |
Powertrain Control Module (PCM) to Bracket |
8 N.m (71 In. Lbs.) |
- |
| CALLOUT |
DESCRIPTION |
SPECIFICATION |
COMMENT |

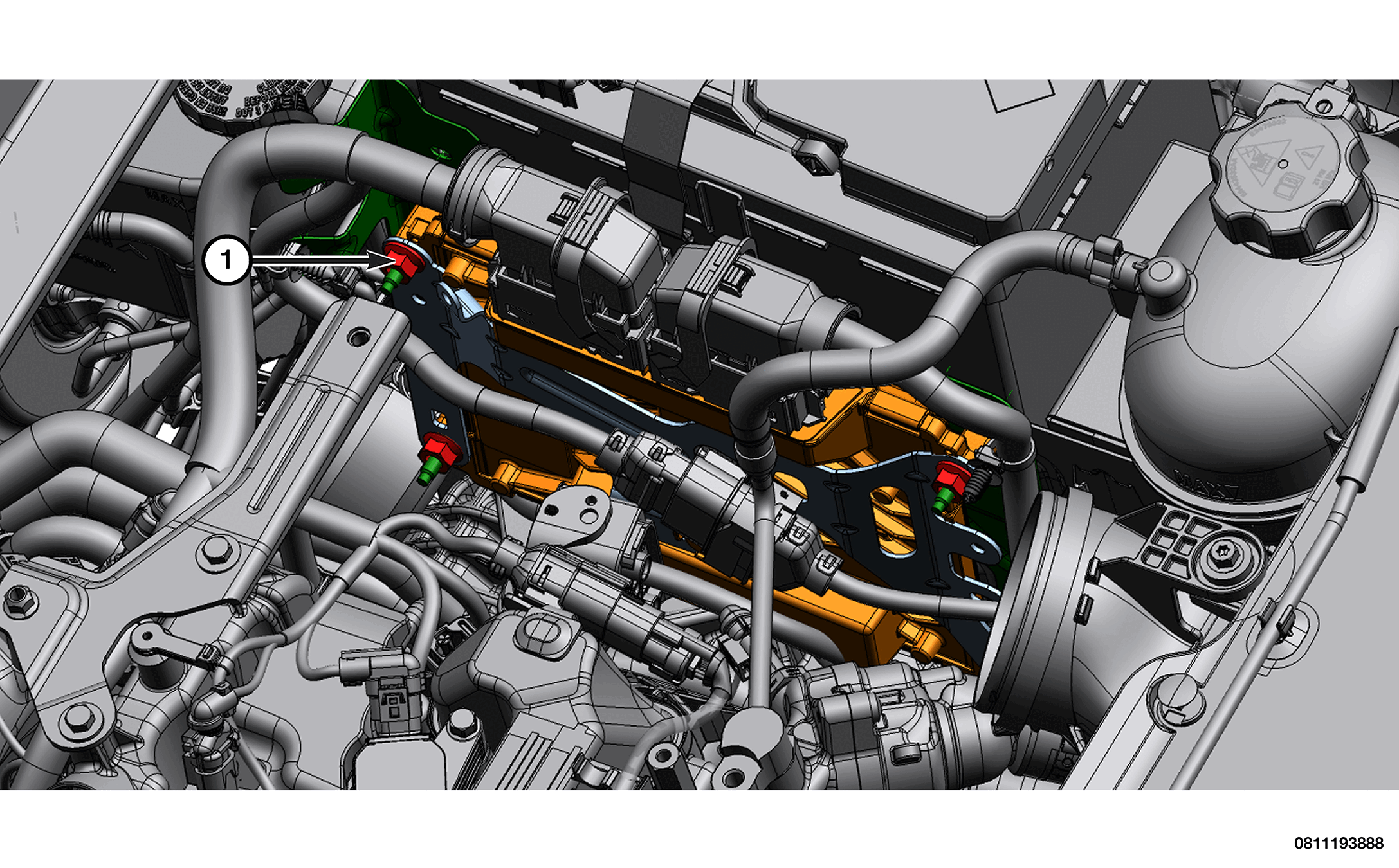

| 1 |
Transmission Control Module (TCM) Bolts |
23 N.m (17 Ft. Lbs.) |
- |
| - |
Powertrain Control Module (PCM) Ground Wire Nut |
8 N.m (71 In. Lbs.) |
- |
