Initial Installation - LHD

WARNING: This page is about a different car, the 2025 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
    NOTE: Before starting the installation procedure, check that the control module is compatible with the vehicle model on which it will be installed.
    Carefully follow the instructions on positioning and securing the control module described in this procedure. Failure to respect indications may lead to incorrect system operation.
  2. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .
  3. Release the lower B pillar trim and move it aside without removing it. Refer to PANEL, B-PILLAR TRIM, LOWER, REMOVAL AND INSTALLATION .
  4. Make a note or take a photo of the data on the label (1) at the rear of the module. This data is necessary for the test procedure at the end of the installation.
    GC0183625Courtesy of CHRYSLER GROUP, LLC
  5. Apply a strip of biadhesive Velcro (1) to the back of the T-box module.
    GC0183068Courtesy of CHRYSLER GROUP, LLC
  6. Apply the Coroplast covering tape (1) to the parts of the T-box module in contact with the vehicle to prevent vibration noise when it is mounted on the vehicle.
    GC0178875Courtesy of CHRYSLER GROUP, LLC
  7. Verify that the Coroplast tape (2) around the module wiring reaches the connector. Add some Coroplast tape if necessary.
    GC0181861Courtesy of CHRYSLER GROUP, LLC
  8. Apply the adhesive Velcro strip to the internal dashboard bracket (1).
    GC0179285Courtesy of CHRYSLER GROUP, LLC
  9. Insert the T-box module (1) with its harness connected to the inside the dashboard, keeping it vertical.
    GC0188457Courtesy of CHRYSLER GROUP, LLC
  10. Position the T-box module (1) on the internal dashboard bracket and turn it to the horizontal position with the wiring facing downwards.
    NOTE: Take care to position the cable ties so that they DO NOT pass over the innermost metal bracket.
    GC0188371Courtesy of CHRYSLER GROUP, LLC
  11. Secure the T-box module in position using cable ties (1).
    GC0188412Courtesy of CHRYSLER GROUP, LLC
  12. Apply a section of Coroplast (1) to the blade of the metal internal dashboard bracket onto which the relay holder slide will be fitted.
    GC0188453Courtesy of CHRYSLER GROUP, LLC
  13. Position the T-box relay holder slide (1) (provided in the kit) on the hole in the internal bracket and secure it using the screw with the specific nut and two washers (provided in the kit).
    NOTE: Position the relay holder slide horizontally.
    GC0179354Courtesy of CHRYSLER GROUP, LLC
  14. Fit the relay holder with the T-box relay (1) on the slide and connect it to the T-box wire harness.
    GC0178820Courtesy of CHRYSLER GROUP, LLC
  15. Pass the ground lead of the T-box harness along the internal side panel and tie (1) it to the vehicle wire harness.
    GC0178829Courtesy of CHRYSLER GROUP, LLC
  16. Remove the nut on the ground stud (1b) near the central pillar and open the vehicle wiring retainers along the side panel.
    GC0179352Courtesy of CHRYSLER GROUP, LLC
  17. Insert the T-box ground lead into the wiring retainers (1a) and close them, then position the T-box harness earth ring (1b) on the earth pin over any existent wiring and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .

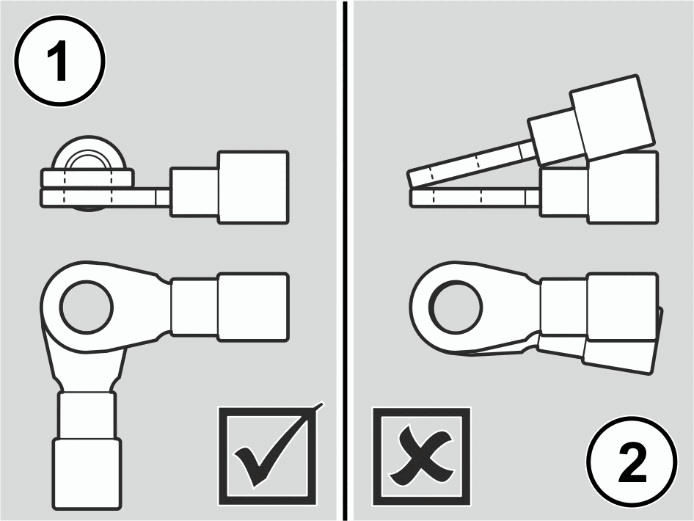

  18. If there are previously removed wires connected to the ground stud, be careful to insert the earth wire of the T-Box harness so that it is offset correctly (1) by at least 45° with respect to the previous ones. Do NOT  stack the ring terminals (2).
    GC0202644Courtesy of CHRYSLER GROUP, LLC
  19. Disconnect the electrical connector C3 (1) from the Body Control Module (BCM), and remove the inner connection covering block.
    GC0180718Courtesy of CHRYSLER GROUP, LLC
  20. Locate pin 1 (+50) (red/green cable cross section 2.5 mm) on the connector, then cut and remove the sheathing of the car wiring.
    NOTE: Take great care not to get the cables to be joined dirty as this will adversely affect the continuity of the electrical conduction. While heating the thermal shrinking tubs, as a result of the high temperatures reached, the drier and the heat shield must not, under any circumstances, come into contact with cladding parts or other components.
    GC0188486Courtesy of CHRYSLER GROUP, LLC
  21. Fit the thermal shrinking connection tubes (1) onto the two sets of cables within the wiring.
  22. Use an air heater (2a) with heat shield (2b) to heat the thermal shrinking tubes (2c) until the ring of solder melts; then wait for it to cool.
    NOTE: The air heater (drier) used in this procedure is commercially available.
    NOTE: Apply insulating tape to the two wires individually and then combine the wires with the main wiring and tape again to create a more compact bundle.
    NOTE: Fuse F36 is the third from the top (blue) in the right- hand row in the Body Computer.
  23. Remove fuse F36 (1) from the Body computer and fit it into the turret fuse-holder of the T-box harness.
    GC0179310Courtesy of CHRYSLER GROUP, LLC
  24. Connect the connector of the new T-box harness (with twin fuse) (1) in the position previously occupied by fuse F36 of the Body Computer.
    NOTE: Fuse F51 is the fourth one from the bottom (red) in the left-hand row in the Body Computer.
    GC0179396Courtesy of CHRYSLER GROUP, LLC
  25. Remove fuse F51 (+15) from the Body computer and fit it into the turret fuse-holder of the T-box harness.
  26. Connect the connector of the T-box harness (with twin fuse) (1) in the position previously occupied by fuse F51 of the Body Computer.
  27. Disconnect the electrical connector C6 (1) from the BCM.
    NOTE: When done, restore the connector wiring with a new tie.
    GC0188419Courtesy of CHRYSLER GROUP, LLC
  28. Remove the block (1) which covers the internal connections (2).
    GC0178843Courtesy of CHRYSLER GROUP, LLC
  29. Locate pins 58 (CAN-H) and 57 (CAN-L) (1).
    GC0180797Courtesy of CHRYSLER GROUP, LLC
  30. Use the two signal taps (2) (cross section area 0.35 mm) to bypass the two existing CAN H (blue) and CAN L (white) wires and the corresponding loose wires in the module harness.
    NOTE: When done, restore the connector wiring with a new cable tie.
  31. Connect the door opening signal wire (green) of the new T-box harness to the pin 11 position (2) and replace the internal connection cover block.
    NOTE: Be sure on the next step to interrupt the cable at a distance of 150-200mm from the connector to be able to completely cover the work performed with new tape.
    NOTE: Tape should be applied to the bundle of cables to increase its compactness.
    NOTE: Position the module wiring as far as possible from metal body parts with sharp edges so that it does not interfere when subsequently removing the interior fittings from the vehicle in preparation for installation.
    GC0180798Courtesy of CHRYSLER GROUP, LLC
  32. Secure the T-box harness to the car wiring (1) with cables ties.
    GC0188467Courtesy of CHRYSLER GROUP, LLC
  33. Install the lower B pillar trim. Refer to PANEL, B-PILLAR TRIM, LOWER, REMOVAL AND INSTALLATION .
  34. Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .
    NOTE: Using the scan tool, select the "Connected Services " tab, select "Mopar Connect" and choose "Test-Operation check" option. Start a new test and complete steps 2 and 3 of the "Test App" manual (which can be downloaded from the Help section).
  35. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
    NOTE: Complete the test procedure to check that the installation is operating correctly (to resume a previously suspended procedure, see step 9 of the "Test App" manual). To access the Test procedure, connect to the scan tool, select the "Connected Services" tab, select "MOPAR Connect" and choose the "Test- Operation check" option.
  36. On completion of installation of the T-box module, connect the diagnosis instrument to the car's OBD socket, locate the BCM module and check for errors.
