Heater, Engine Block: Installation: 3.6L

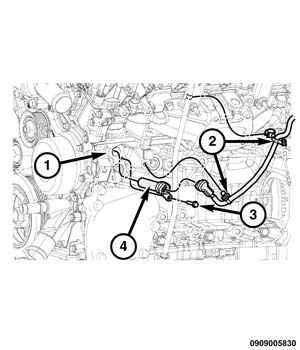

GC0159337Courtesy of CHRYSLER GROUP, LLC
  1. Clean block core hole (1) and heater seat.
  2. Insert heater block (4) assembly.
  3. With block heater seated, tighten bolt (3) to the proper torque specification to assure a positive seal. Refer to TECHNICAL SPECIFICATIONS .
  4. Install power cord plug to block heater.
  5. Install the generator (2). Refer to GENERATOR, INSTALLATION .
