Charging System (Service Information): Generator: Installation: 3.6L

Courtesy of CHRYSLER GROUP, LLC

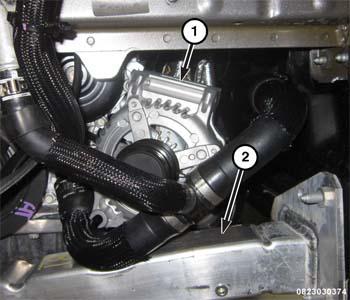

1. Carefully position the generator (1) up to the engine block.

   Courtesy of CHRYSLER GROUP, LLC

2. Loosely install the top two generator mounting retainers (2).
3. Install the lower generator mounting bolt (3).

   Courtesy of CHRYSLER GROUP, LLC

4. Position the A/C compressor (2) to the engine. Tighten the bolts to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

5. Install the upper engine mount bolts (2, 3). Tighten mount to mount bracket bolts (2, 3) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

6. Install the fuel line (2) at the fuel rail.

   Courtesy of CHRYSLER GROUP, LLC

7. Install the air filter housing body (1). Refer to BODY, AIR CLEANER, INSTALLATION .
8. Tighten the generator mounting retainers to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

9. Install the generator B+ cable (3) on the generator stud.
10. Install the B+ cable nut (2), and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
11. Connect the field generator harness Connector (1).
12. Install the belly pan (1).

    Courtesy of CHRYSLER GROUP, LLC

13. Install the accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .

    Courtesy of CHRYSLER GROUP, LLC

14. Install the tire and wheel assembly.
15. Connect the negative battery cable.
