Disassembly - Clevis Bushing

To perform removal and replacement of the lower control arm clevis bushing, the lower control arm must be removed from the vehicle.

1. Remove lower control arm assembly from vehicle. (Refer to SUSPENSION/FRONT/LOWER CONTROL ARM - REMOVAL) .
2. Install Bushing Remover, Special Tool 6877 and Bushing Receiver, Special Tool 6876 on Special Tool C-4212-F.
3. Install lower control arm on Special Tools assembled for removal of the clevis isolator bushing. Be sure Special Tool 6876 is square on lower control arm and Special Tool 6877 is positioned correctly on clevis bushing. See Fig 1.

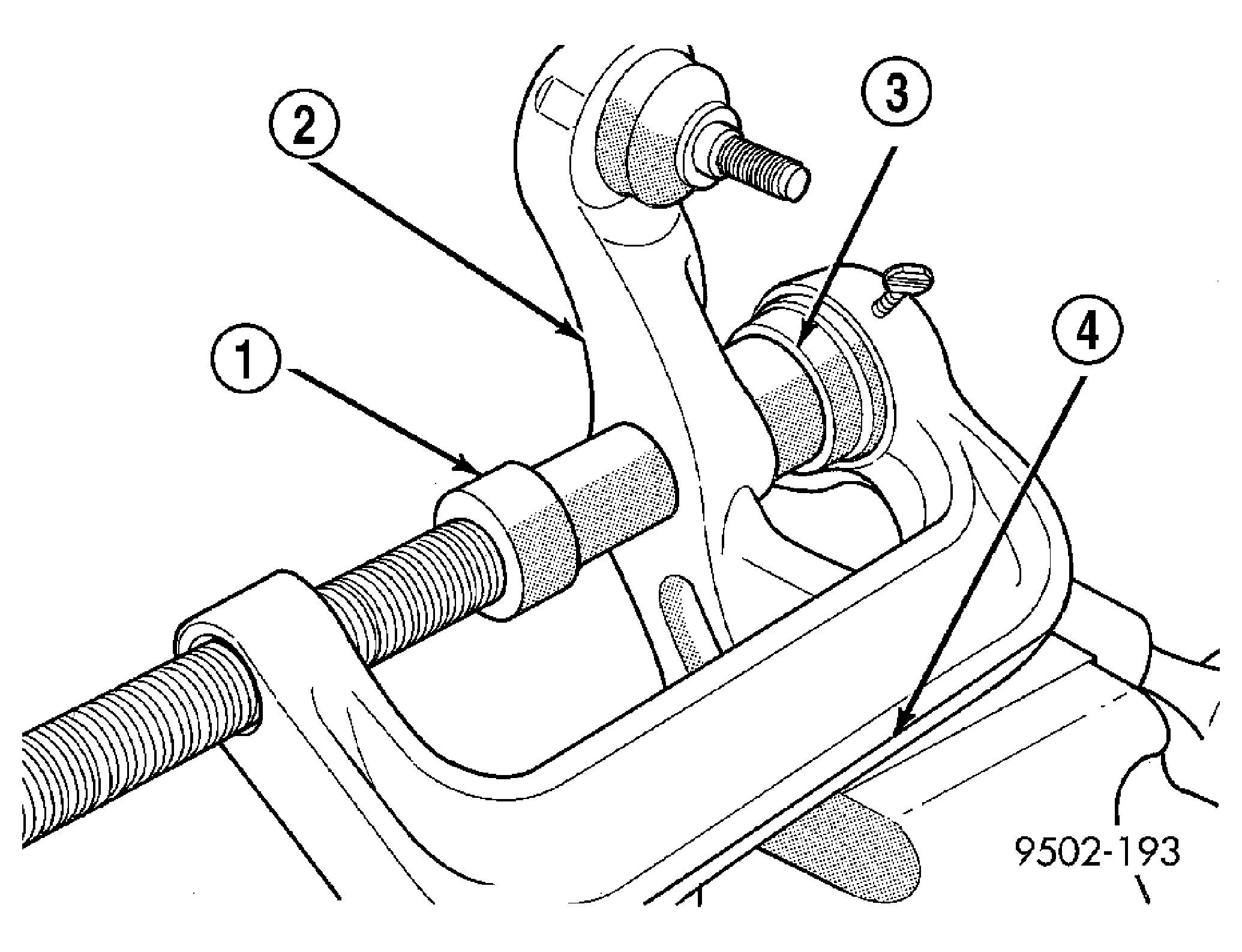

   Fig 1: Removing Clevis Bushing From Lower Control Arm

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - SPECIAL TOOL 6877

   2 - LOWER CONTROL ARM

   3 - SPECIAL TOOL 6876

   4 - SPECIAL TOOL C-4212-F

4. Tighten screw on Remover/Installer Special Tool C-4212-F to press clevis bushing out of lower control arm.
