Timing Chain: Removal

WARNING: This page is about a different variant/trim than selected.

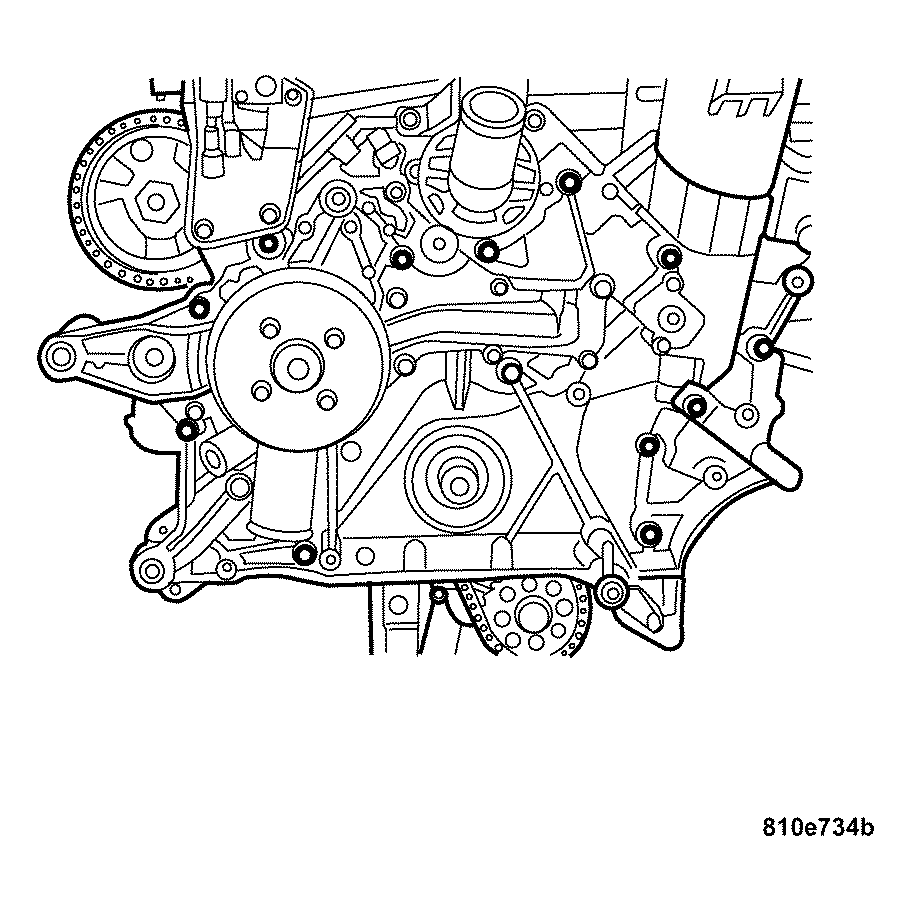

Fig 1: Identifying Timing Chain Cover Bolts

Courtesy of DAIMLERCHRYSLER CORP.

Remove the timing chain cover. (Refer to ENGINE/VALVE TIMING/GEAR HOUSING COVER - REMOVAL) .

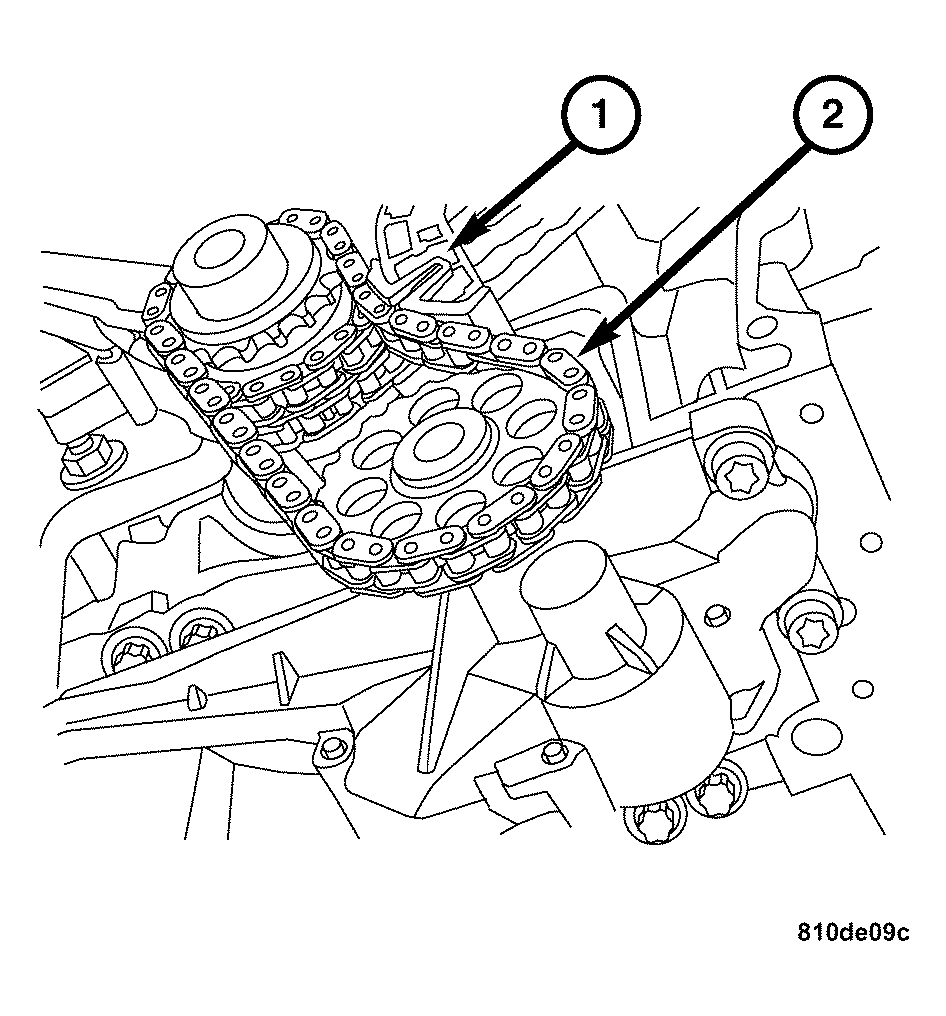

Fig 2: Identifying Tensioner & Oil Pump Drive Chain
Courtesy of DAIMLERCHRYSLER CORP.
Remove the oil pump drive chain (2) and tensioner (1). (Refer to ENGINE/LUBRICATION/OIL PUMP - REMOVAL) .

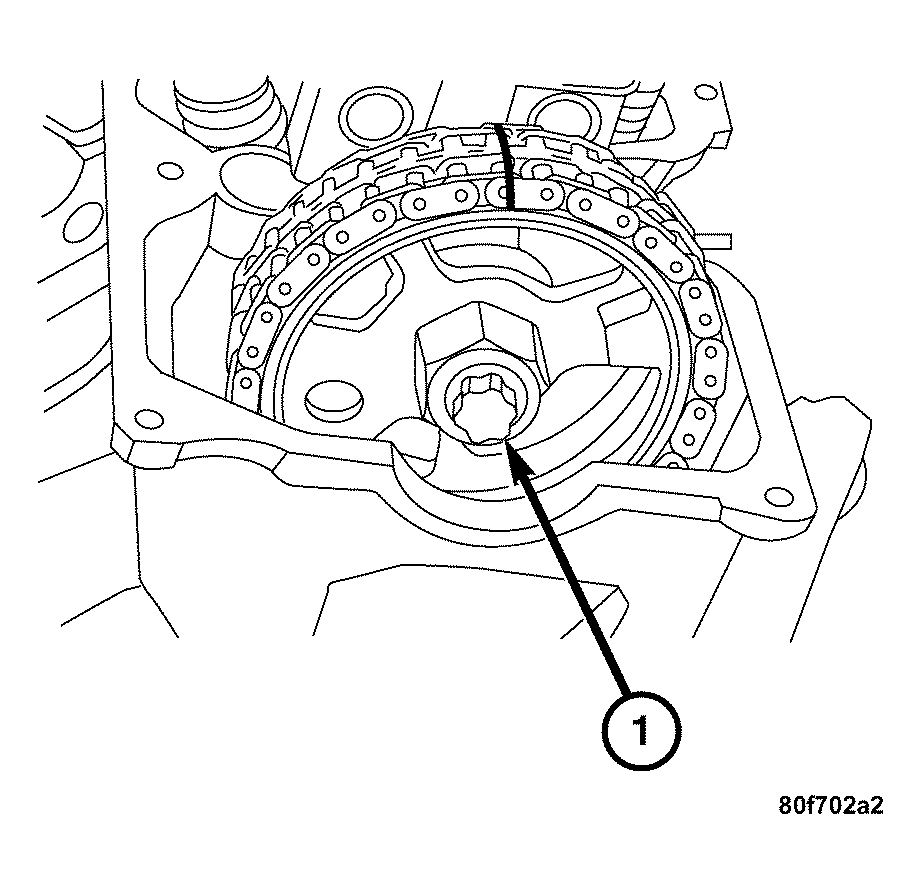

Fig 3: Removing/Installing Camshaft Sprocket Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Remove the left and right camshaft sprocket bolts (1).
Remove the timing chain and camshaft sprockets.

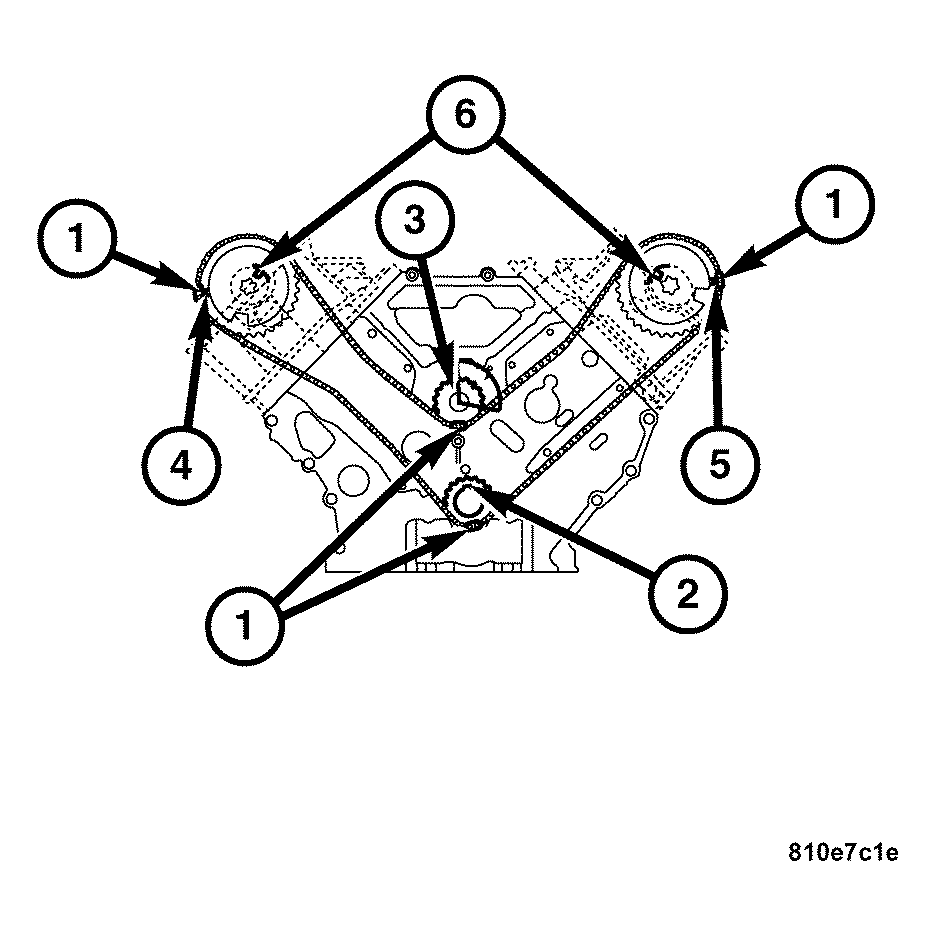

Fig 4: Identifying Timing Components
Courtesy of DAIMLERCHRYSLER CORP.
Remove the timing chain crankshaft sprocket (2).
Clean and inspect all gasket surfaces, chain guides, and sprockets for wear or damage. Repair or replace as necessary.
