Timing Chain Guides: Removal

WARNING: This page is about a different variant/trim than selected.

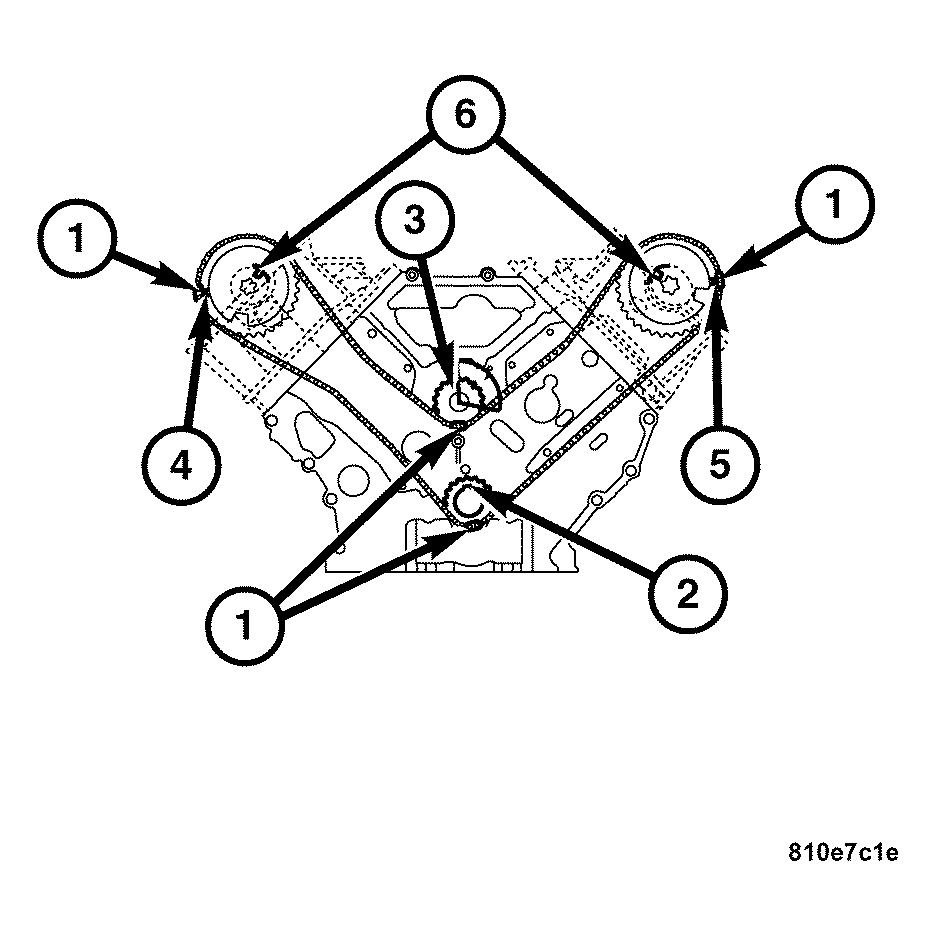

Fig 1: Identifying Timing Components

Courtesy of DAIMLERCHRYSLER CORP.

Remove the timing chain (1). (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - REMOVAL) .

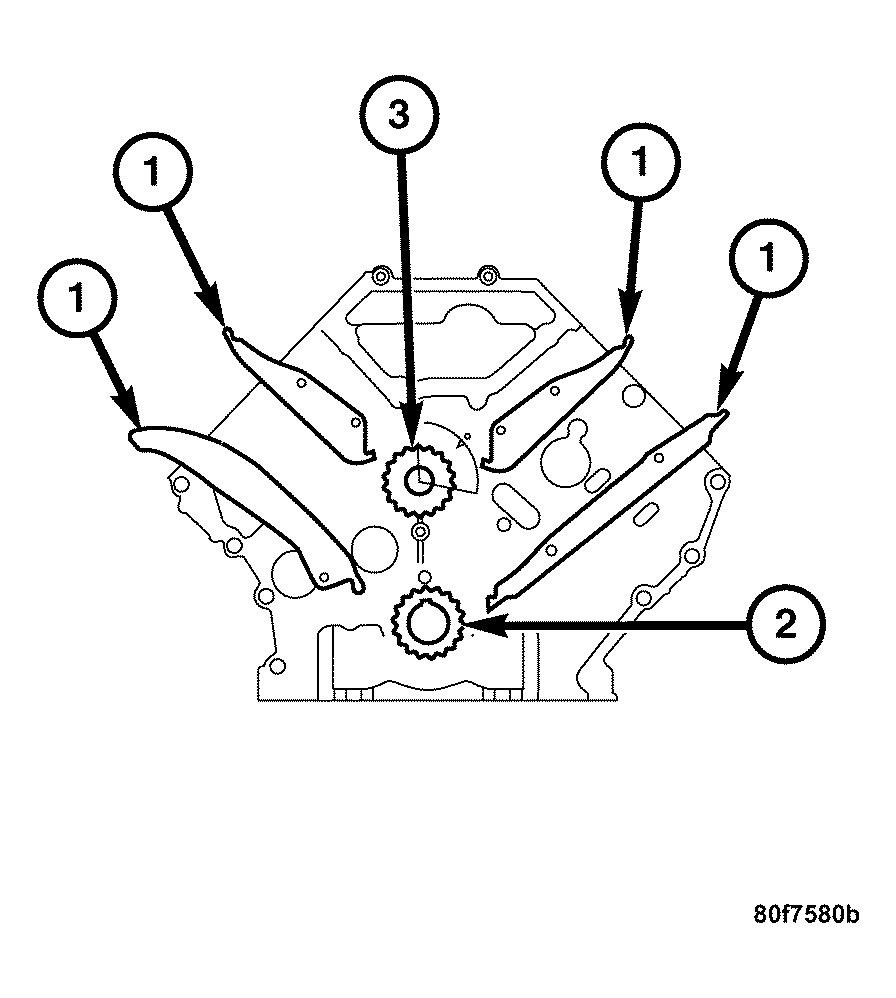

Fig 2: Identifying Timing Chain Guides
Courtesy of DAIMLERCHRYSLER CORP.
Remove the timing chain guides (1) off of the mounting pins. Inspect and replace worn or damaged guides as required.
