Piston And Connecting Rod: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the timing chain. (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - REMOVAL) .

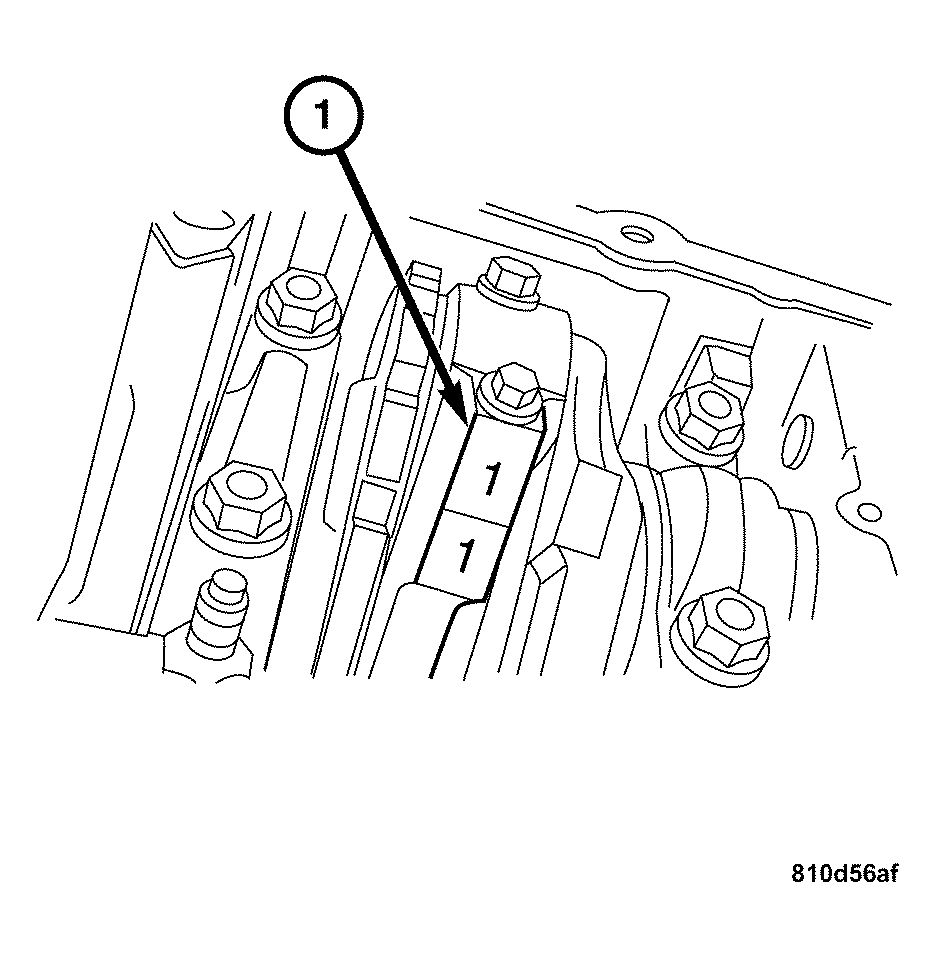

    Fig 1: Marking Connecting Rod Caps
    GC0034649Courtesy of DAIMLERCHRYSLER CORP.
  2. Mark the connecting rods and rod caps (1) for reassembly.
  3. Mark the pistons facing direction if arrows are not visible.

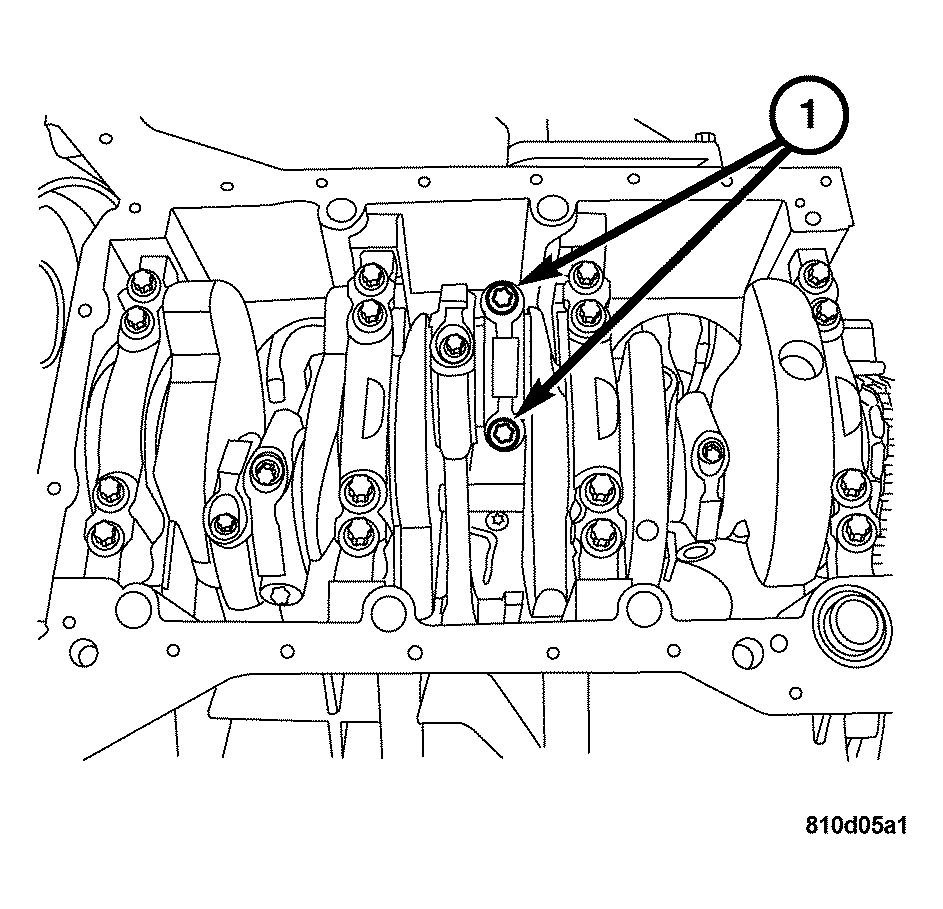

    Fig 2: Removing/Installing Connecting Rod Bolts
    GC0034650Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the connecting rod bolts (1) and the connecting rod caps.

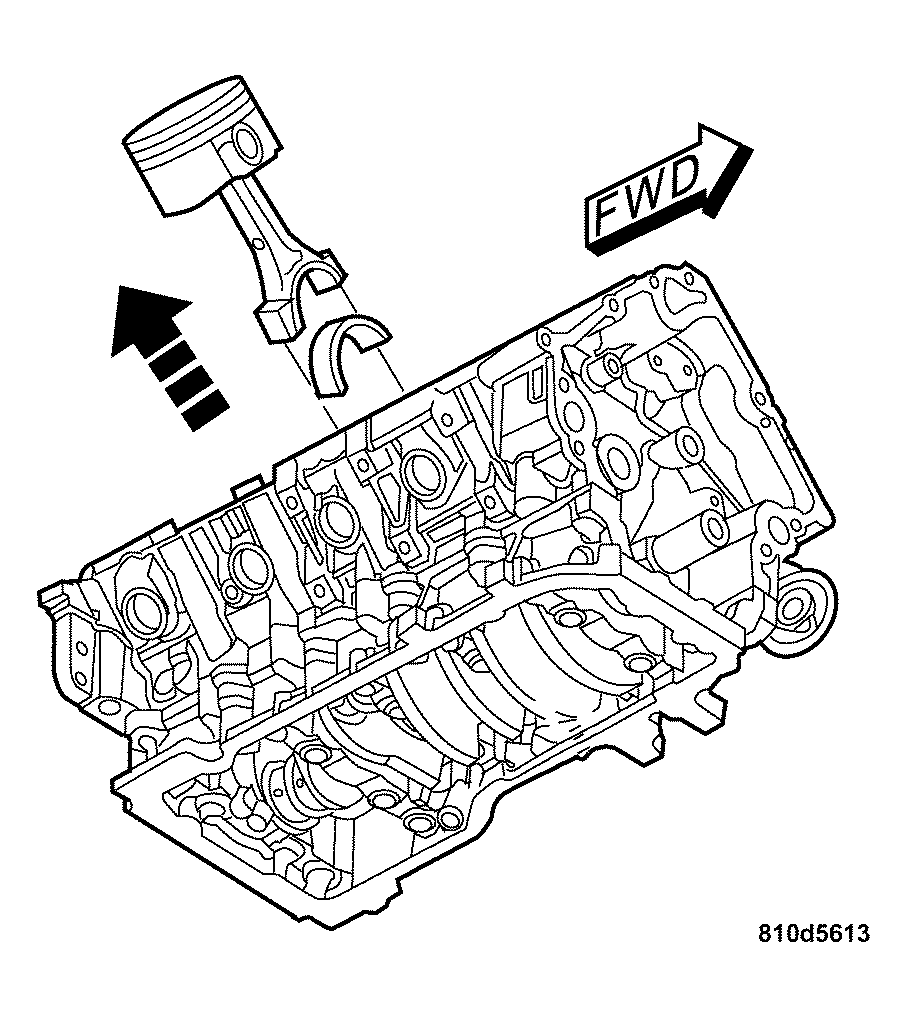

    Fig 3: Removing Pistons & Connecting Rods
    GC0034648Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the pistons and connecting rods from top of the engine.

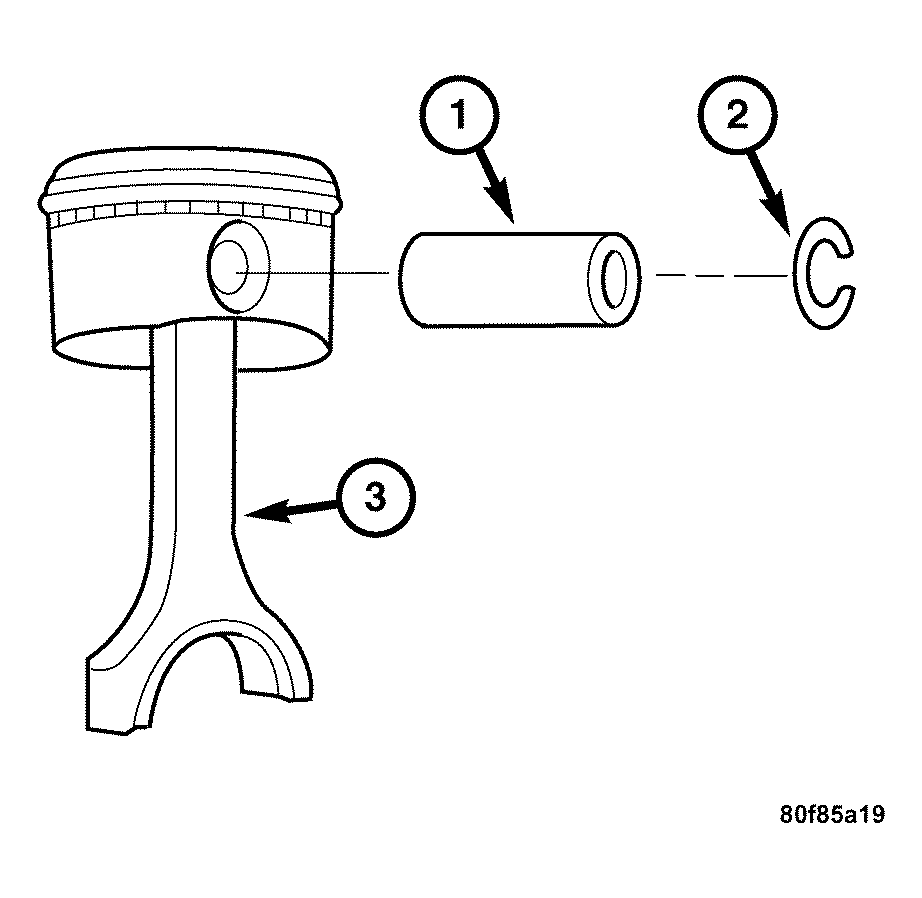

    Fig 4: Removing/Installing Piston Pins
    GC0034646Courtesy of DAIMLERCHRYSLER CORP.
  6. Perform work on a suitable surface to prevent damage to parts.
  7. Keep the piston pins matched to the pistons.
  8. Remove the snap rings from the pistons (2).
  9. Press out the piston pins (1).
  10. Remove the piston from the connecting rod (3).
  11. Inspect all parts to be reused for damage. Replace as required.
