Section 12 (Mechanical Brake System - Base (Service Information)): Pedal: Installation

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

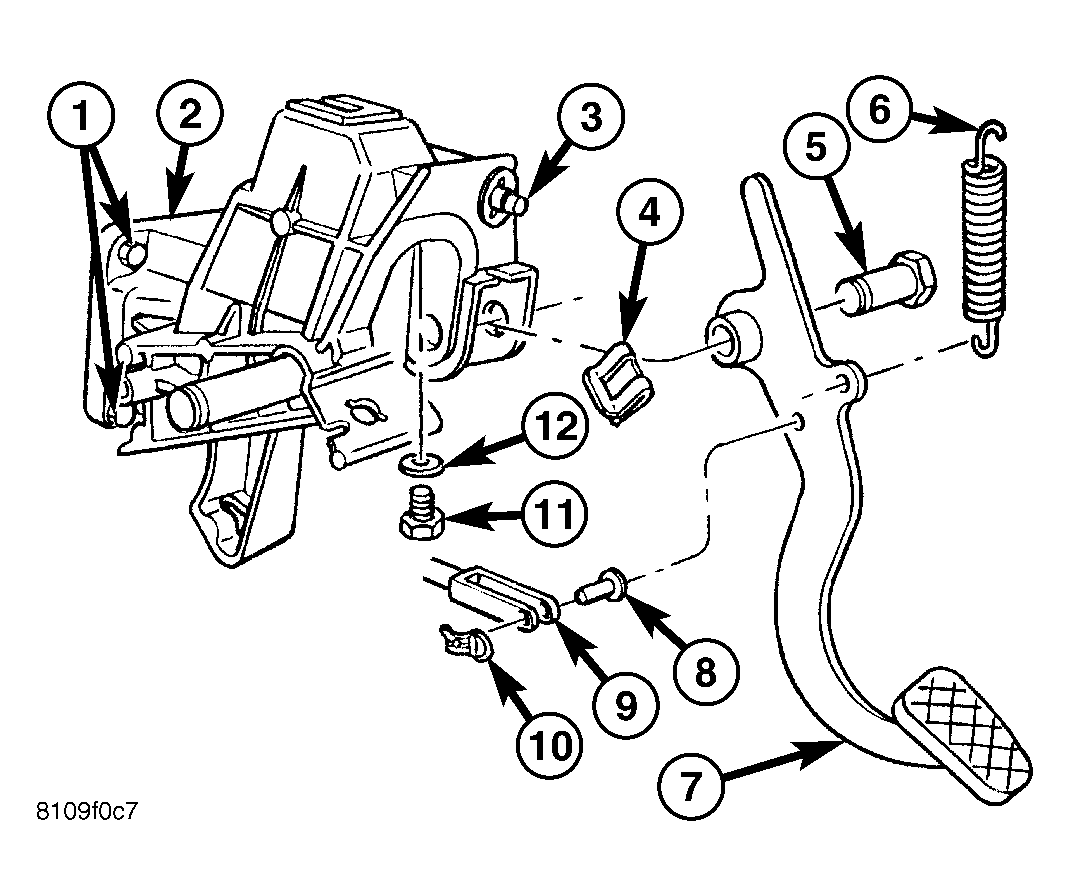

  1. Install the bolts for the pedal bearing bracket. See Figure. Tighten to 23 N.m (204 in. lbs.)
  2. Reconnect the plug connector for the stop lamp switch. See Figure.
  3. Install the brake pedal and hook the spring. See Figure.
  4. Install the retainer and pin for the brake pedal. See Figure.
  5. Install the retainer and pin for the master cylinder push rod. See Figure.
  6. Install the master cylinder (Refer to BRAKES/HYDRAULIC/MECHANICAL/MASTER CYLINDER - INSTALLATION) .
