Master Cylinder: Installation

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

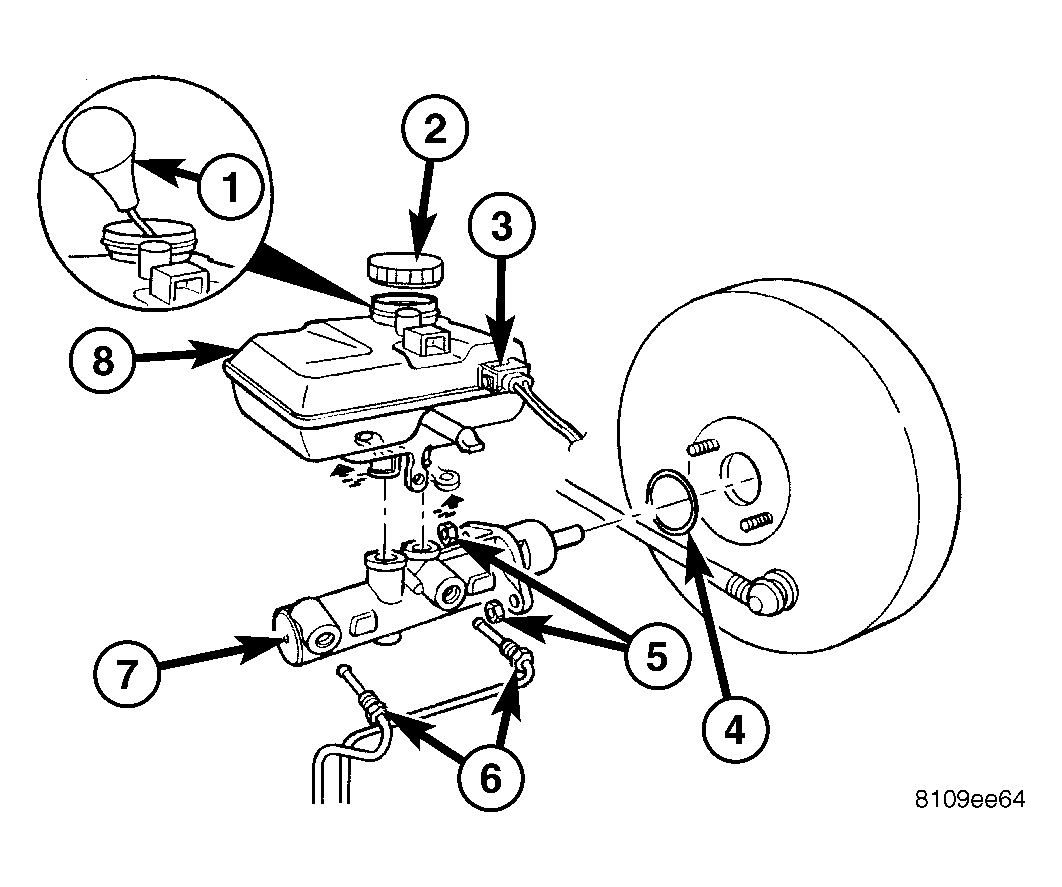

  1. Install the master cylinder to the brake booster. See Figure. Tighten to 28 N.m (248 in. lbs.).
  2. Install the brake lines. See Figure. Tighten to 14 N.m (124 in. lbs.).
  3. Install the fluid reservoir. See Figure(Refer to BRAKES/HYDRAULIC/MECHANICAL/FLUID RESERVOIR - INSTALLATION) .
  4. Bleed the brake system.
  5. Check the brake system for any leaks.
