Starter Motor: Installation: 3.5L

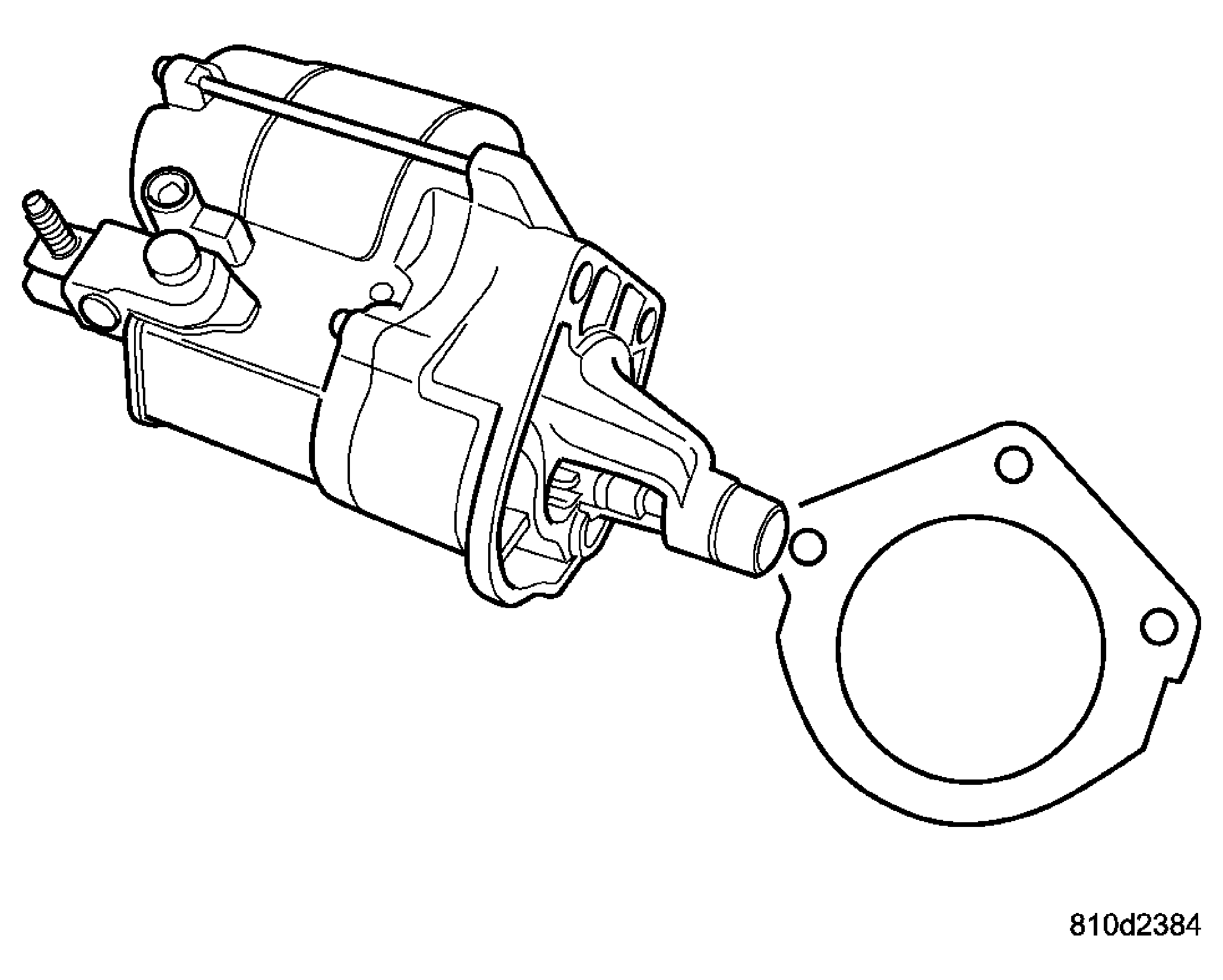

  1. Install starter and shield to vehicle. See Fig 1.
    Fig 1: Starter And Shield
    GC0002299Courtesy of DAIMLERCHRYSLER CORP.
  2. Start the lower starter bolt. See Figure.
  3. Connect the solenoid connector to starter.
  4. Connect the positive battery cable to starter
  5. Relocate the front mount and bracket.

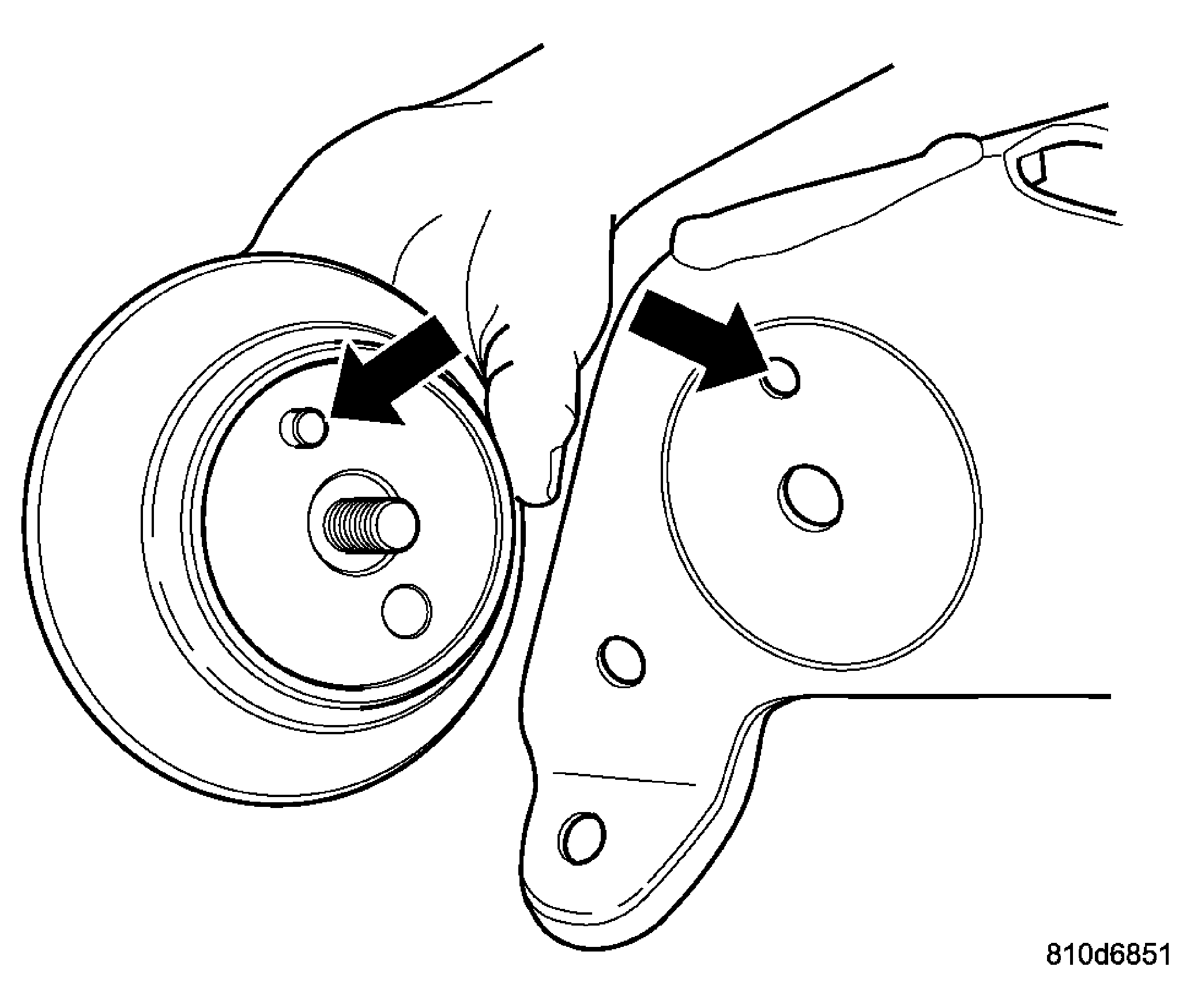

    NOTE: The front mount has an alignment pin. See Fig 2. Make sure that the mount and bracket line up together. The alignment pin goes toward the front of vehicle.
    Fig 2: Mount Alignment Pin
    GC0002308Courtesy of DAIMLERCHRYSLER CORP.
    NOTE: Make sure that the wire harness is in front of the front mount.
  6. Start the middle starter bolt
  7. Install the lower bracket bolt to engine block. See Figure.
  8. Install the lower bracket bolt to transmission.
  9. Tighten both lower bracket bolts.
  10. Lower engine. See Figure.

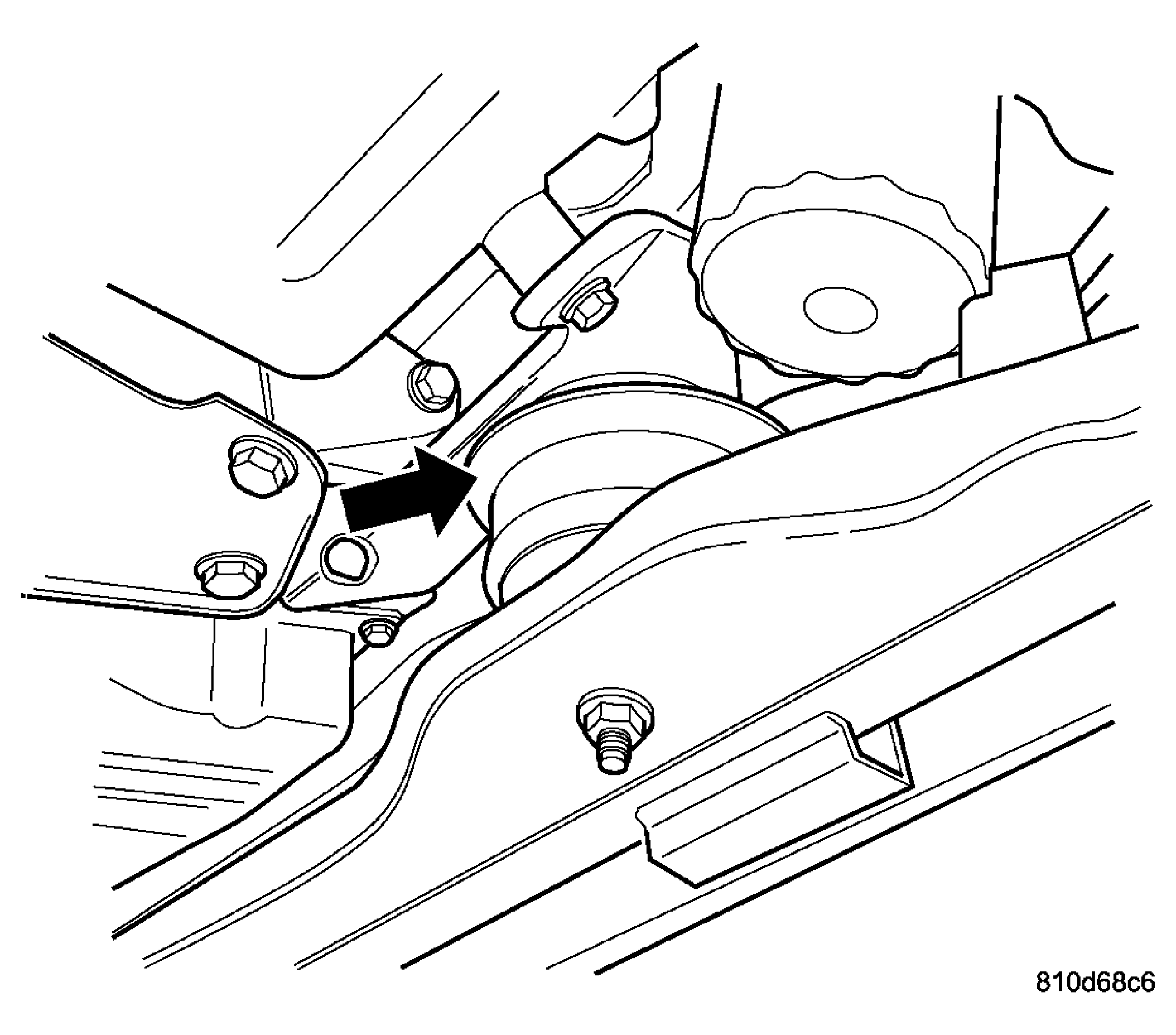

  11. Install the lower front mount nut and tighten. See Figure.
  12. Install and tighten the middle starter bolt. See Figure.
  13. Install and tighten the upper starter mounting bolt. See Figure.
  14. Lower vehicle.
  15. Install the upper nut to the front mount and tighten. See Figure.

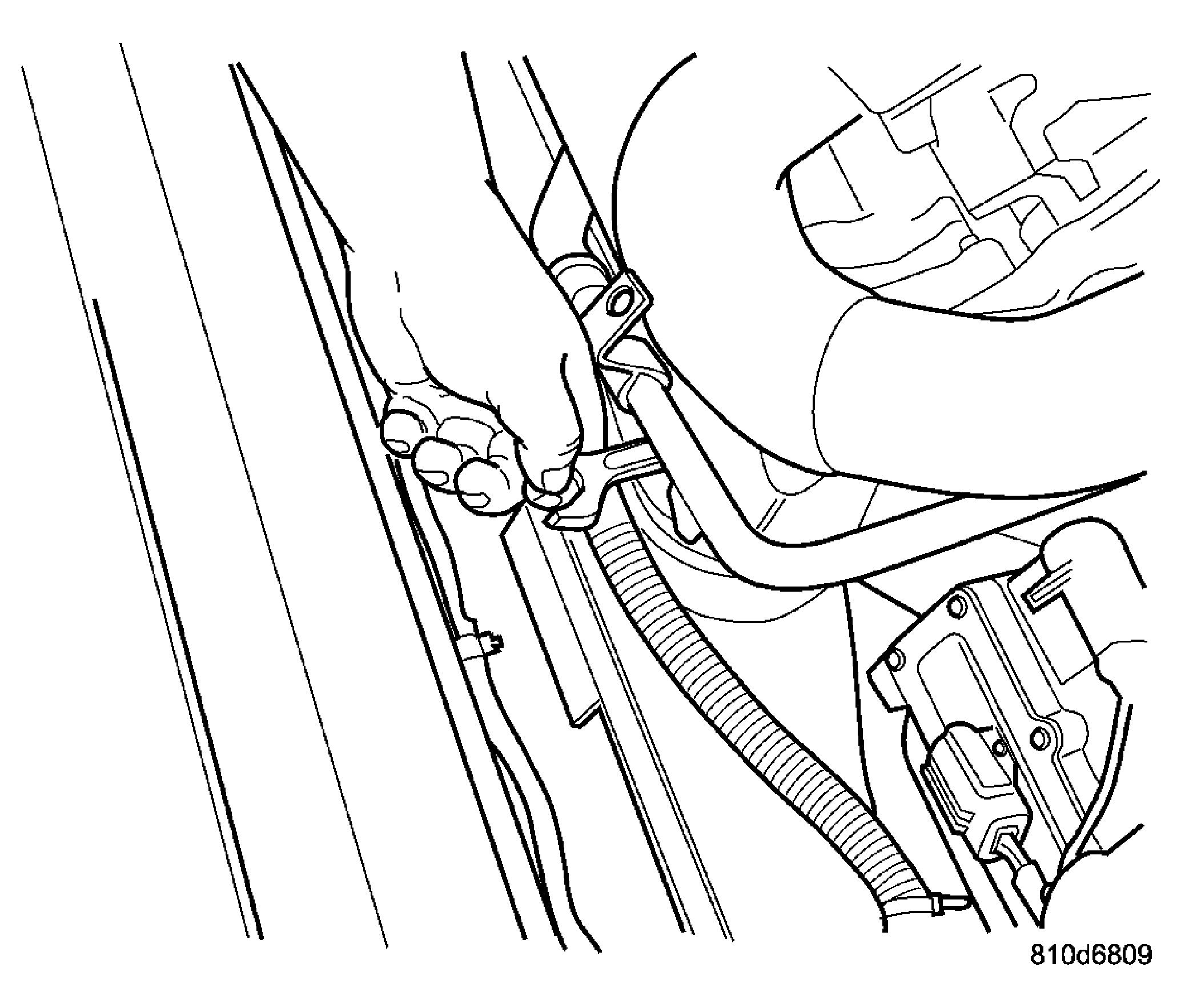

  16. Install the coolant line clamp bolt. See Figure.

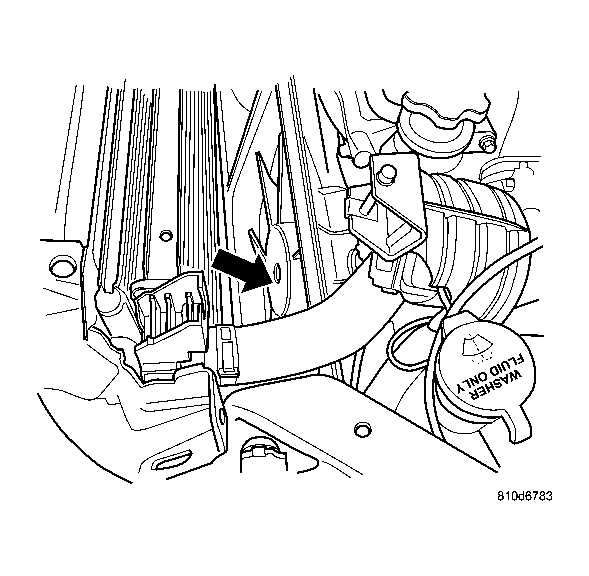

  17. Install the wiring harness clip to front mount.

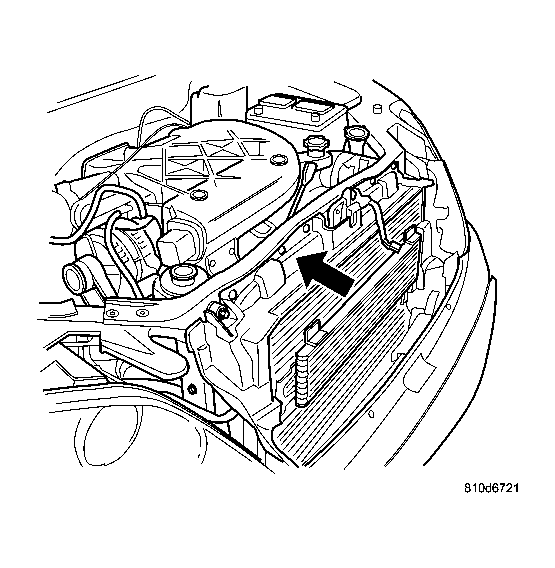

  18. Install the radiator fan module. See Figure, (Refer to COOLING/ENGINE/RADIATOR FAN - INSTALLATION) .

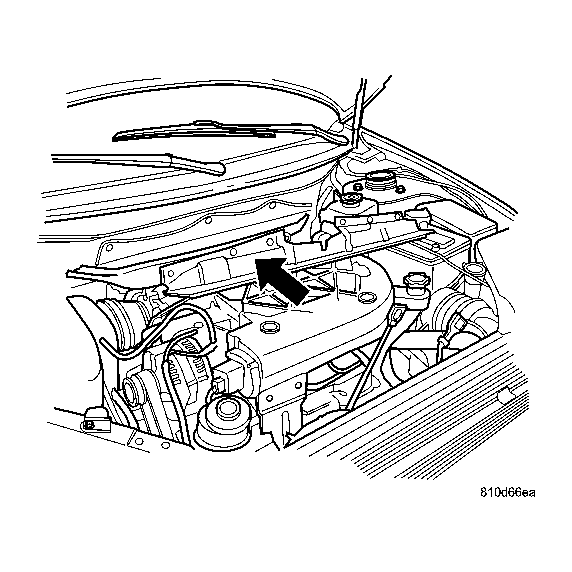

  19. Relocate and install the upper radiator crossmember. (Refer to BODY/EXTERIOR/RADIATOR CROSSMEMBER - INSTALLATION) . See Figure and Figure
  20. Connect the negative battery cable.
