Radiator Fan: Installation

  1. Install the radiator fan(s) into mounts and attaching clips on the radiator.

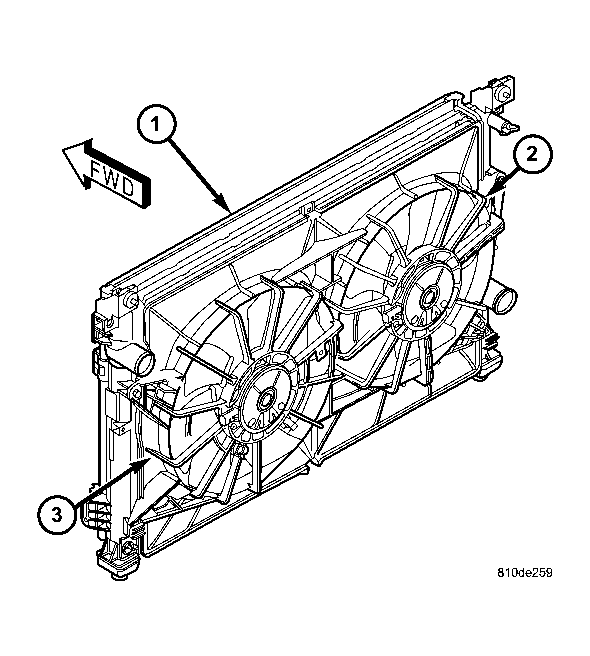

  2. Install radiator fan(s) attaching screws. See Figure. Tighten to 5 N.m (45 in. lbs.).
  3. Connect the radiator fan(s) electrical connectors.
  4. Install the front fascia FRONT FASCIA .
  5. Install the upper radiator mounts to the crossmember bolts, if removed. Tighten to 8 N.m (70 in. lbs.).
