RG Models
WARNING: This page is about a different car, the 2005 Dodge Grand Caravan, 2005 Dodge Caravan, and 2005 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable.
- Remove the air cleaner housing from the right side of the engine compartment.
- Remove the windshield wiper assembly from the vehicle (Refer to ELECTRICAL/WIPERS/WASHERS/WIPER MODULE - REMOVAL) .
- If equipped with rear A/C, disconnect the liquid and suction lines from the A/C expansion valve (Refer to HEATING & AIR CONDITIONING/PLUMBING - REAR/LIQUID LINE - REMOVAL) .

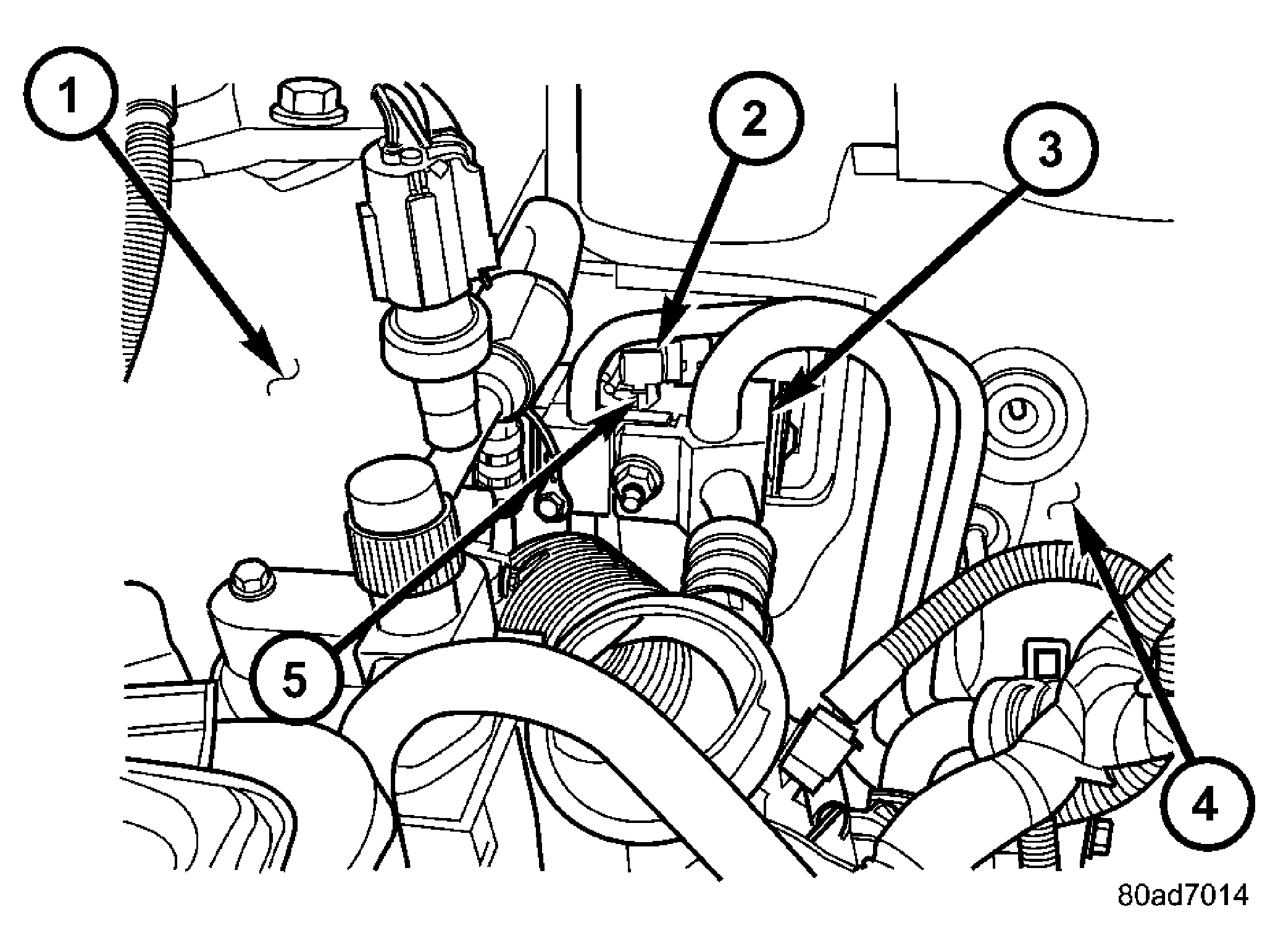

- Remove the retainer that secures the evaporator temperature sensor to the A/C expansion valve. See Fig 1.NOTE: To disconnect the wire harness connector from the evaporator temperature sensor, first push the red retaining ring toward the connector to release the lock, then disconnect the connector from the sensor.
- Remove the evaporator temperature sensor from the A/C expansion valve and disconnect the wire harness connector.
| 1 - RIGHT FRONT STRUT TOWER |
| 2 - EVAPORATOR TEMPERATURE SENSOR |
| 3 - A/C EXPANSION VALVE |
| 4 - DASH PANEL |
| 5 - RETAINER |
