Wiper Module: Removal

WARNING: This page is about a different car, the 2005 Dodge Grand Caravan, 2005 Dodge Caravan, and 2005 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the hood latch and open hood.
  2. Disconnect and isolate the battery negative cable.
  3. Remove the wiper arms.
  4. Remove the cowl cover (Refer to BODY/EXTERIOR/COWL GRILLE - REMOVAL) .
  5. Disconnect the positive lock on the wiper module wire connector. See Fig 1.

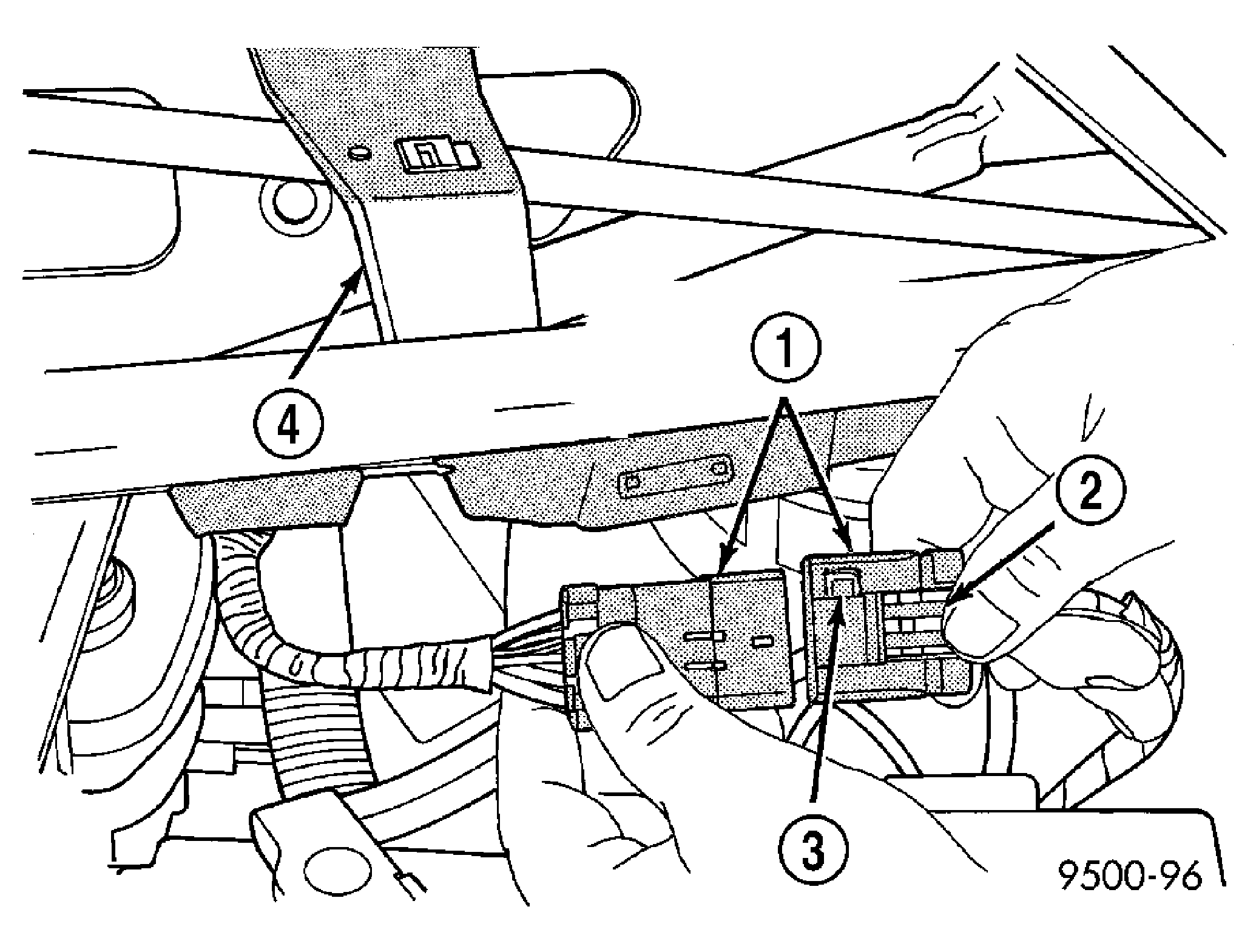

    Fig 1: WIPER MODULE WIRE CONNECTOR
    GC0024883Courtesy of DAIMLERCHRYSLER CORP.
    1 - WIPER SYSTEM WIRE CONNECTOR
    2 - LOCK TAB
    3 - POSITIVE LOCK
    4 - WIPER MODULE
  6. Disconnect the wiper module wire connector from the engine compartment wire harness.
  7. Disconnect the windshield washer hose from coupling outside the module.
  8. Disconnect the drain tubes from nipples on bottom of the wiper module.
  9. Remove nuts holding wiper module to lower windshield fence.
  10. Remove bolts holding the wiper module to the dash panel. See Fig 2.

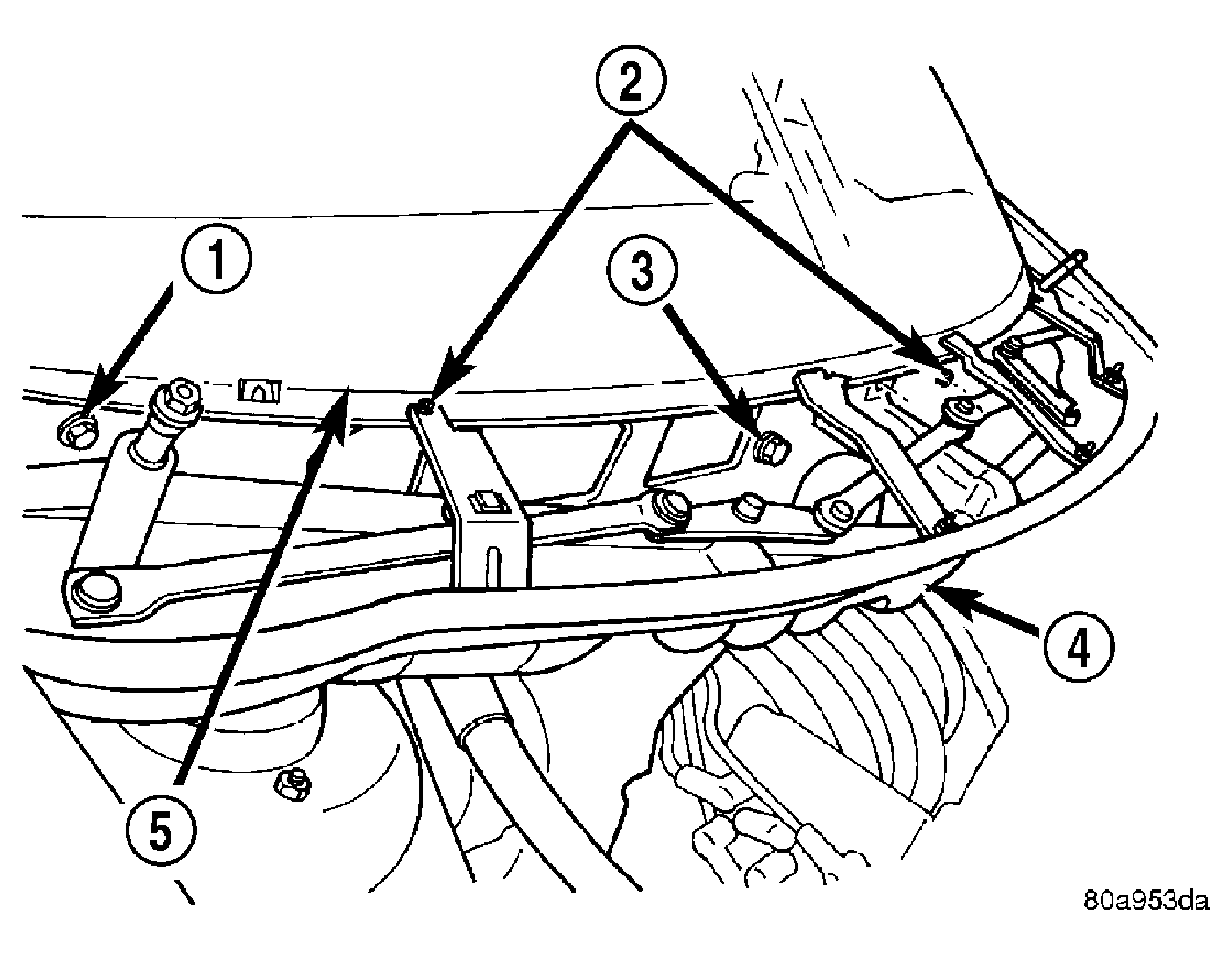

    Fig 2: WIPER MODULE
    GC0024884Courtesy of DAIMLERCHRYSLER CORP.
    1 - BOLT
    2 - NUTS
    3 - BOLT
    4 - WIPER MODULE
    5 - WINDSHIELD
  11. Lift wiper module from weld-studs on lower windshield fence.
    CAUTION: Do not allow wiper module to rest on brake master cylinder reservoir, damage to brake system can result.
  12. Remove wiper module.
