*No Response From All Modules: Notes

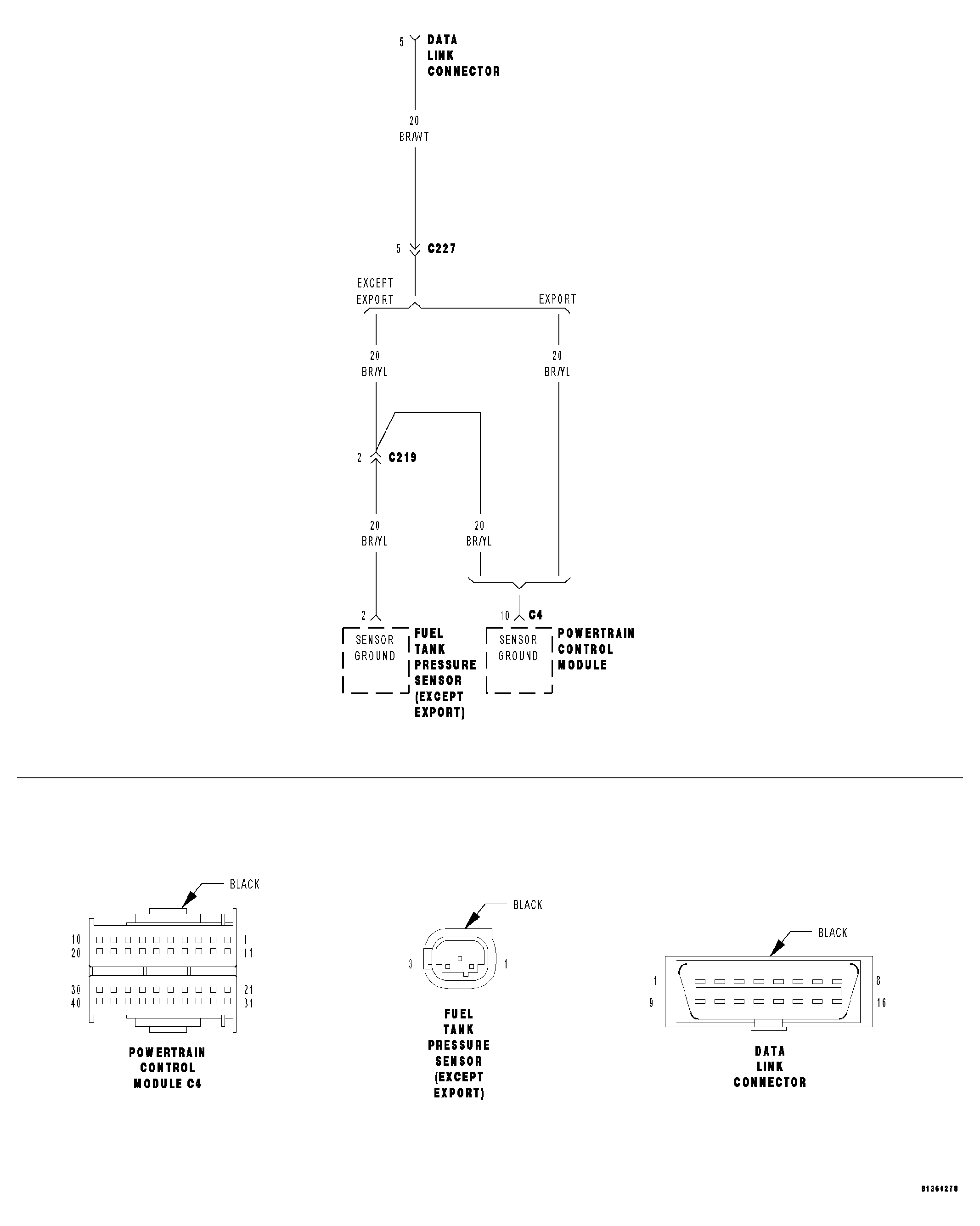

Fig 1: Data Link Connector Sensor Ground Circuit Schematic
GC0034901Courtesy of DAIMLERCHRYSLER CORP.
POSSIBLE CAUSES
SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE
SENSOR GROUND CIRCUIT OPEN
FUEL TANK PRESSURE SENSOR
POWERTRAIN CONTROL MODULE

For a complete Data Link Connector Circuit Diagram, (Refer to ELECTRICAL/ELECTRONIC CONTROL MODULES - SCHEMATICS AND DIAGRAMS) .
