Schematics And Diagrams

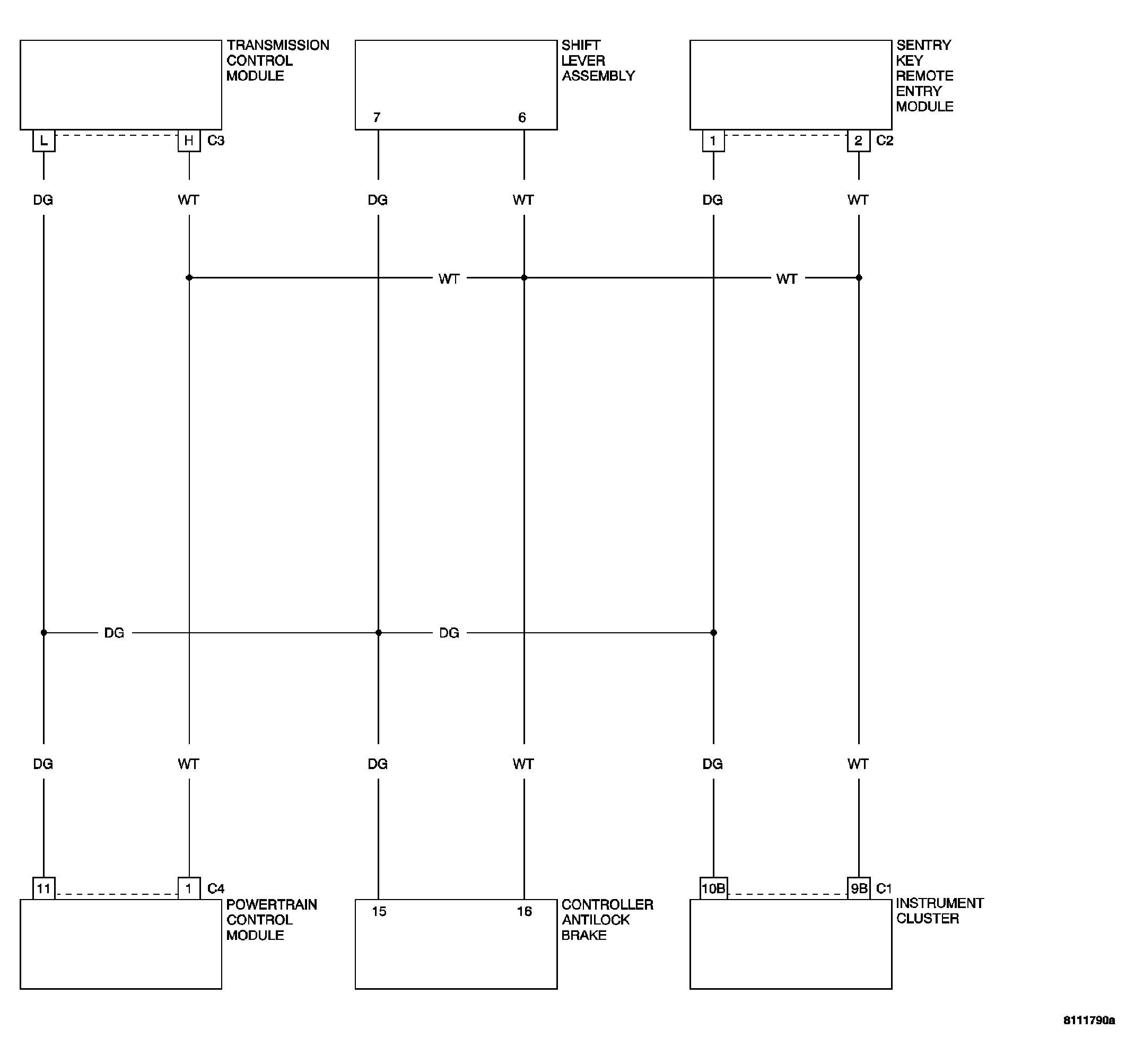

Fig 1: CAN B BUS - AUTOMATIC TRANSMISSION
GC0034890Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: CAN C BUS
GC0034892Courtesy of DAIMLERCHRYSLER CORP.

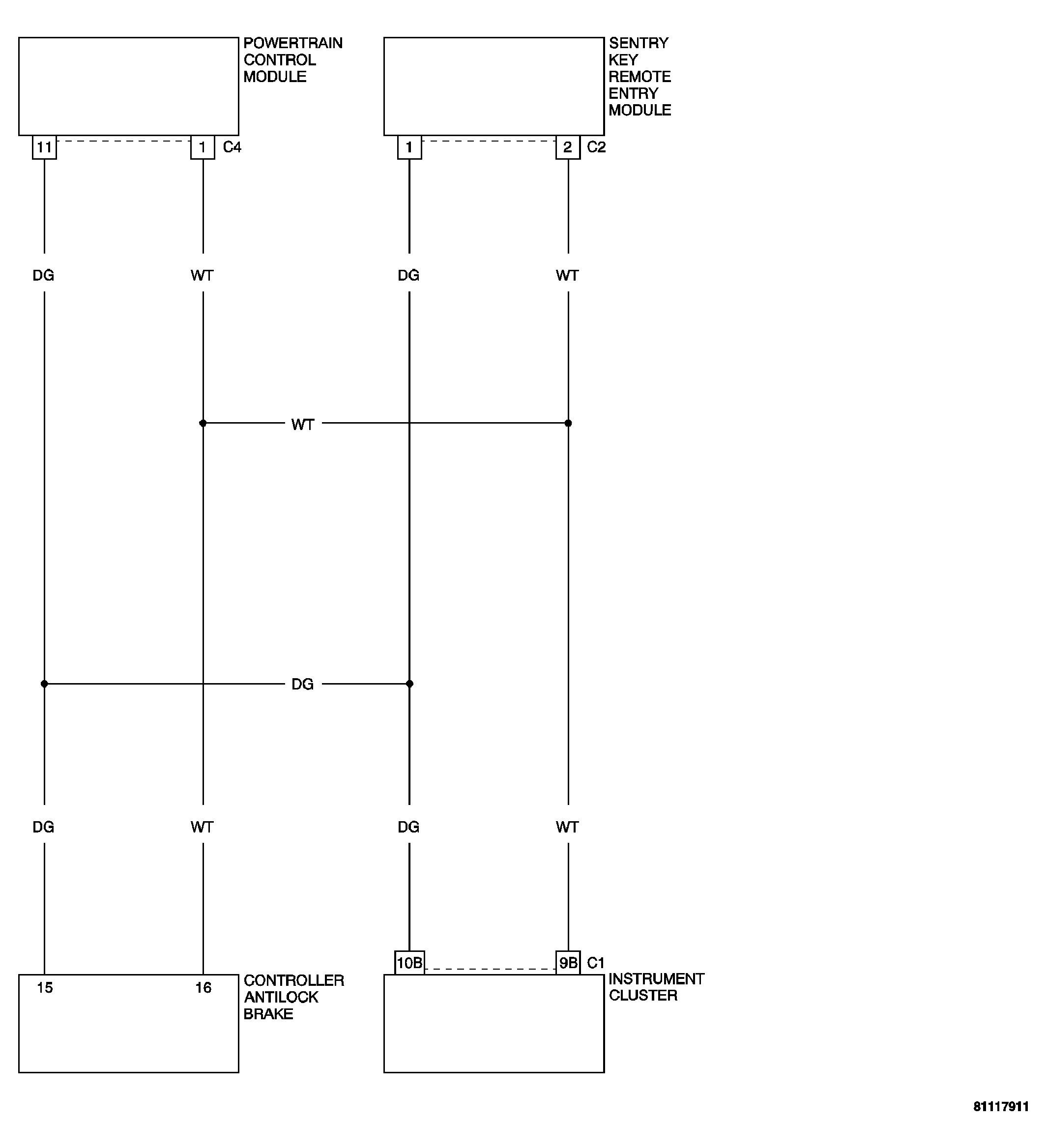

Fig 3: CAN B BUS - MANUAL TRANSMISSION
GC0034891Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: DATA LINK CONNECTOR CIRCUIT DIAGRAM
GC0034897Courtesy of DAIMLERCHRYSLER CORP.

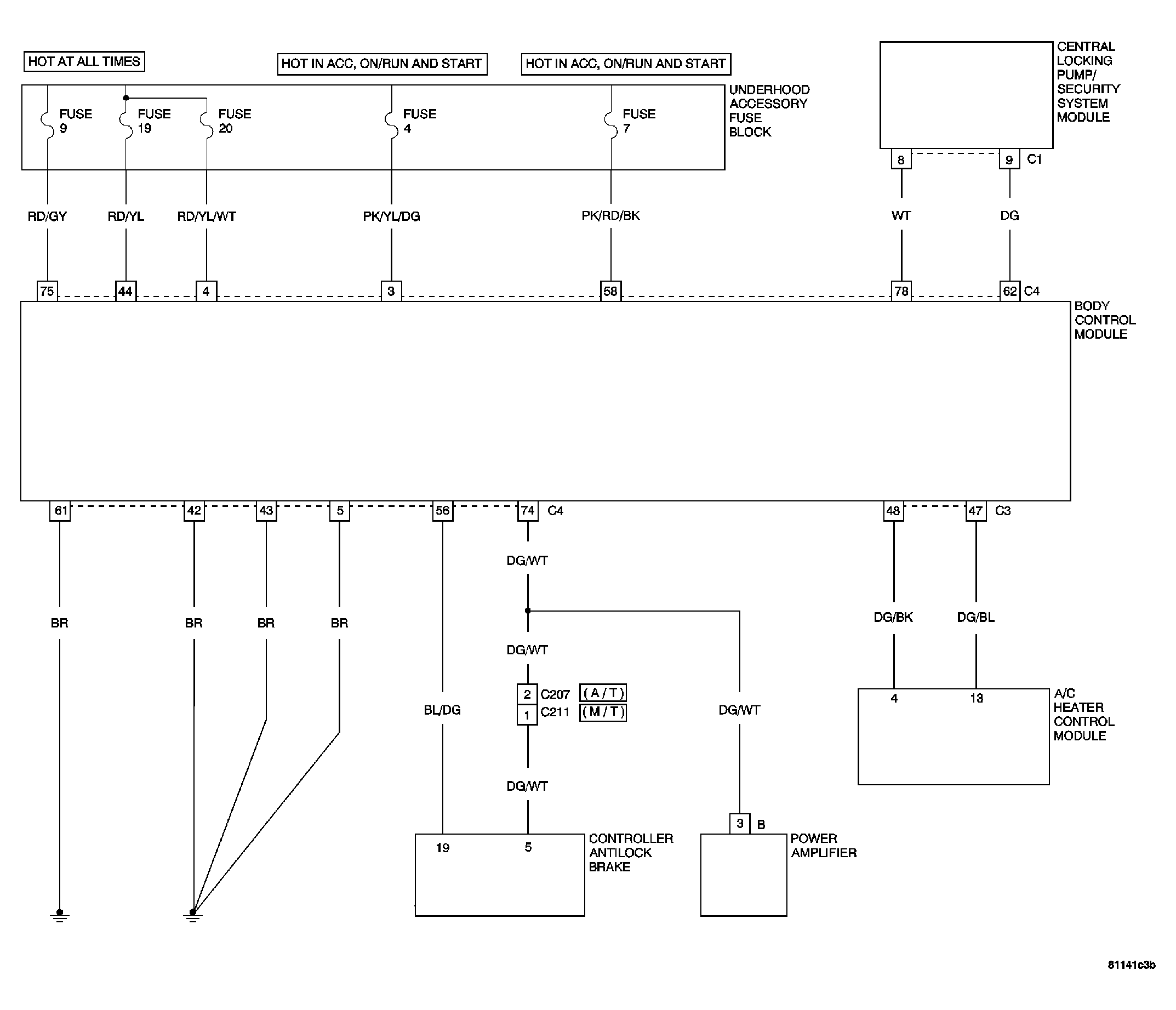

Fig 5: BODY CONTROL MODULE CIRCUIT DIAGRAM (1 OF 3)
GC0034894Courtesy of DAIMLERCHRYSLER CORP.

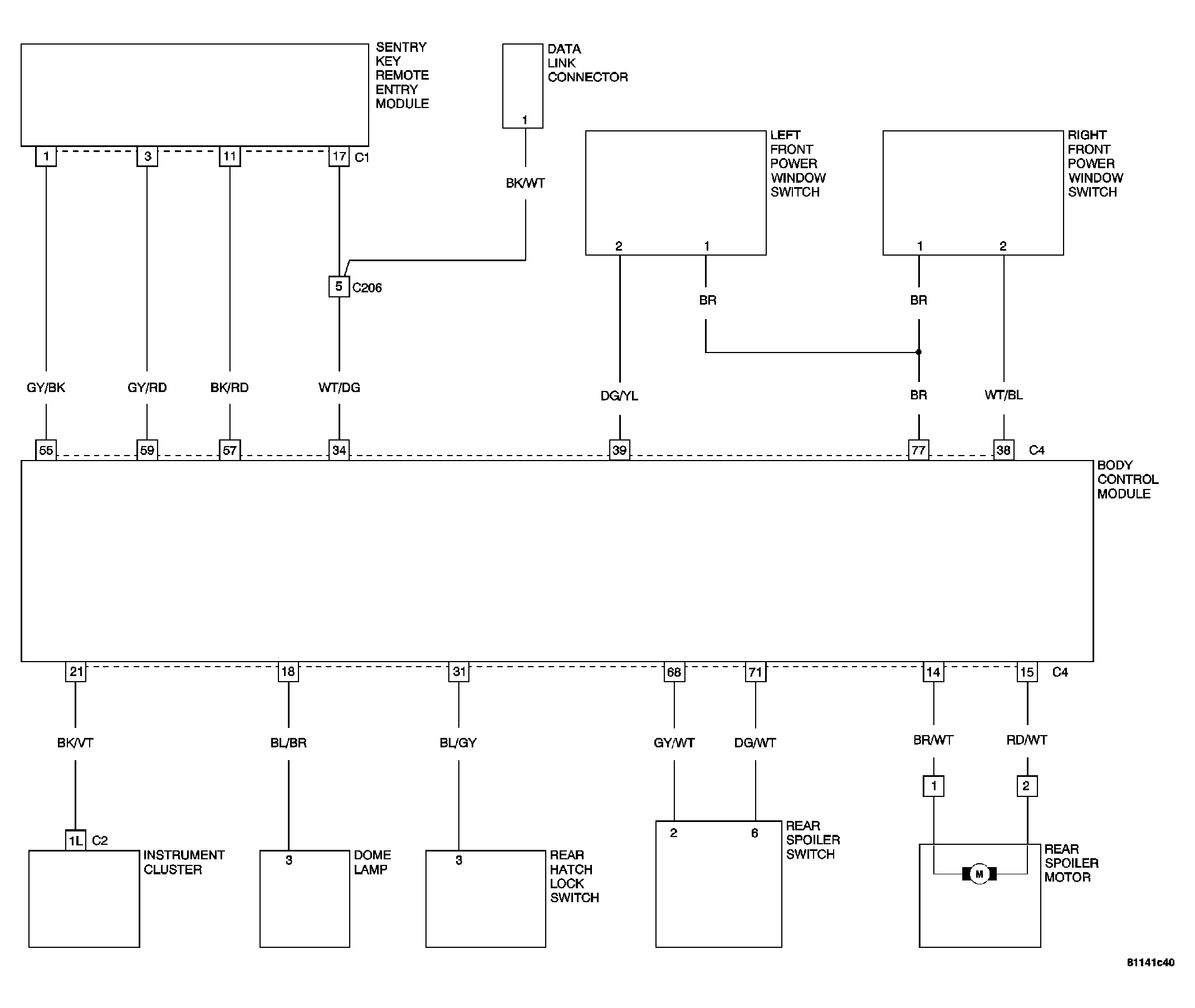

Fig 6: BODY CONTROL MODULE CIRCUIT DIAGRAM (2 OF 3)
GC0034895Courtesy of DAIMLERCHRYSLER CORP.

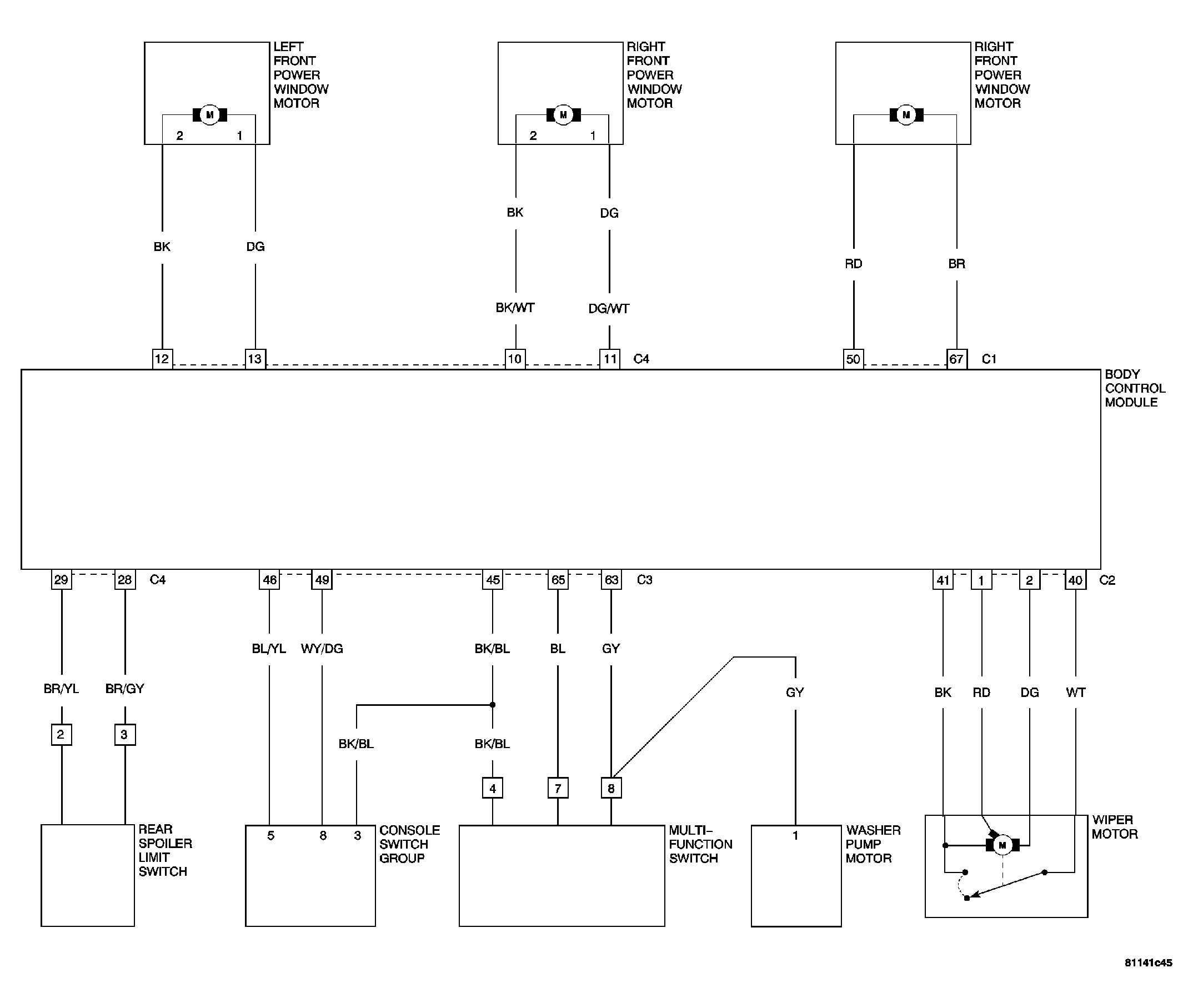

Fig 7: BODY CONTROL MODULE CIRCUIT DIAGRAM (3 OF 3)
GC0034896Courtesy of DAIMLERCHRYSLER CORP.
