Section 365 (Interior/Exterior): Liftgate: Handle: Installation

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

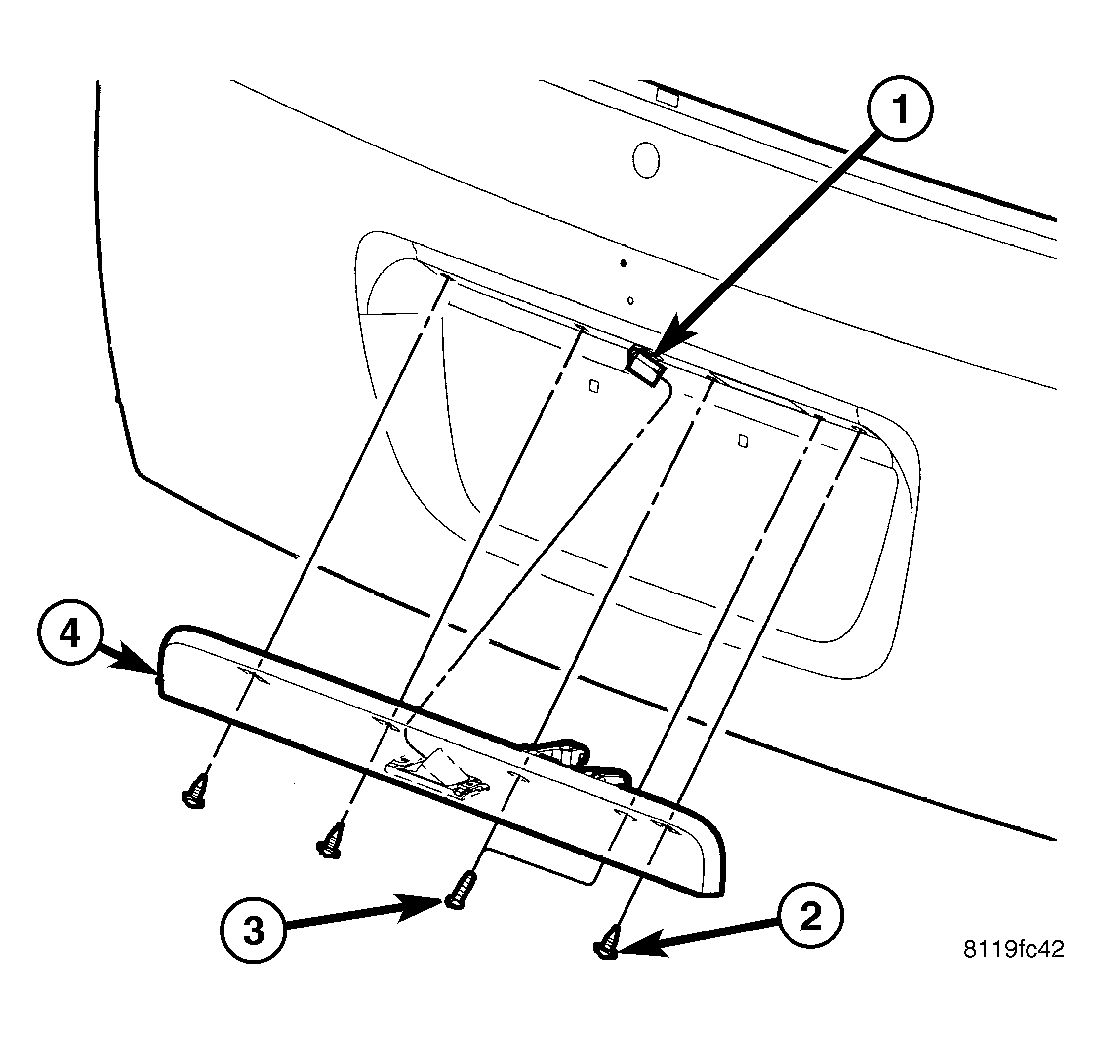

Fig 1: EXTERIOR HANDLE

Courtesy of DAIMLERCHRYSLER CORP.

Connect the electrical connector (1) and install the handle (4).
Install the screws (2 & 3).

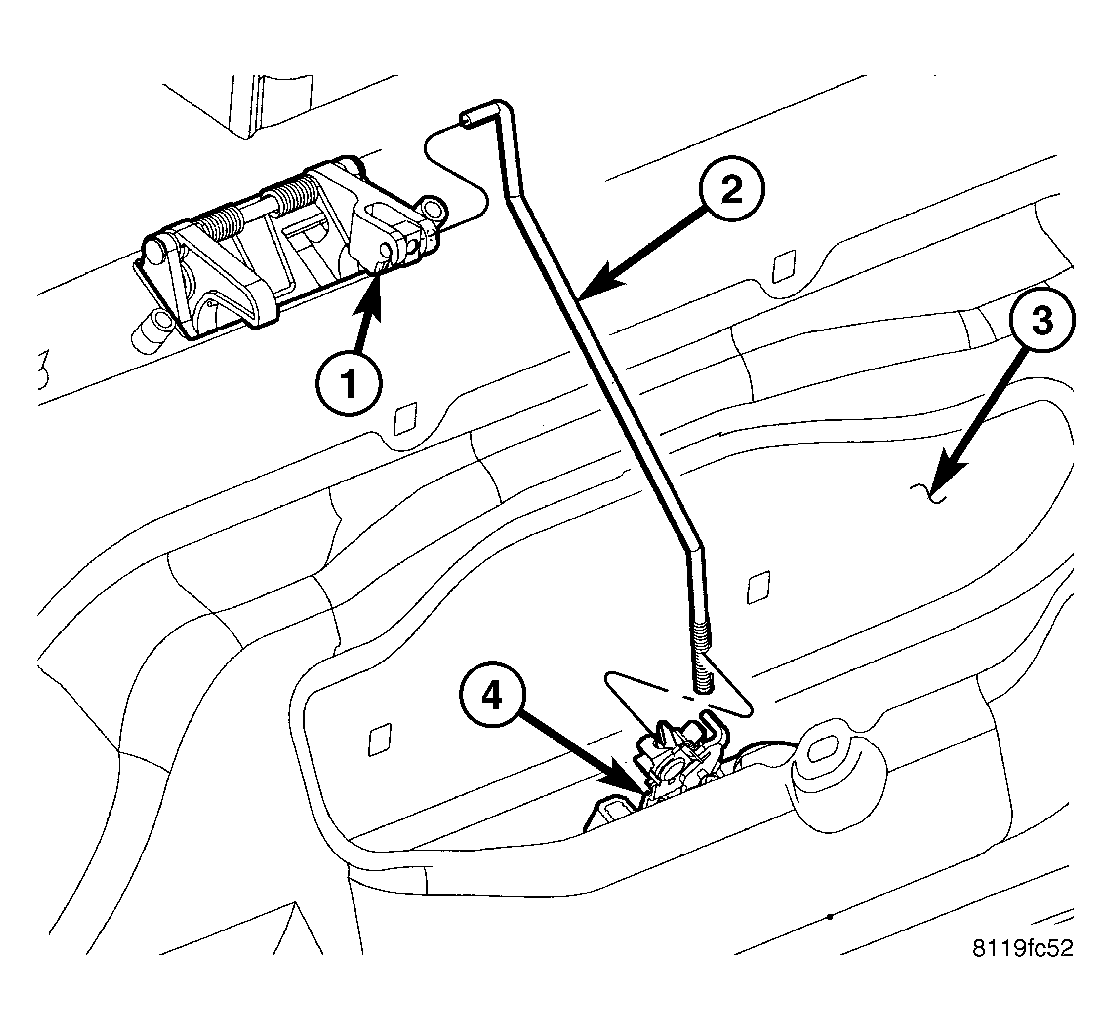

Fig 2: LATCH ROD
Courtesy of DAIMLERCHRYSLER CORP.
Connect the latch actuator rod (2) to the handle (1).
Install the trim panels. (Refer to BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/TRIM PANEL - INSTALLATION)
