Section 365 (Interior/Exterior): Liftgate: Panel-Trim: Installation

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

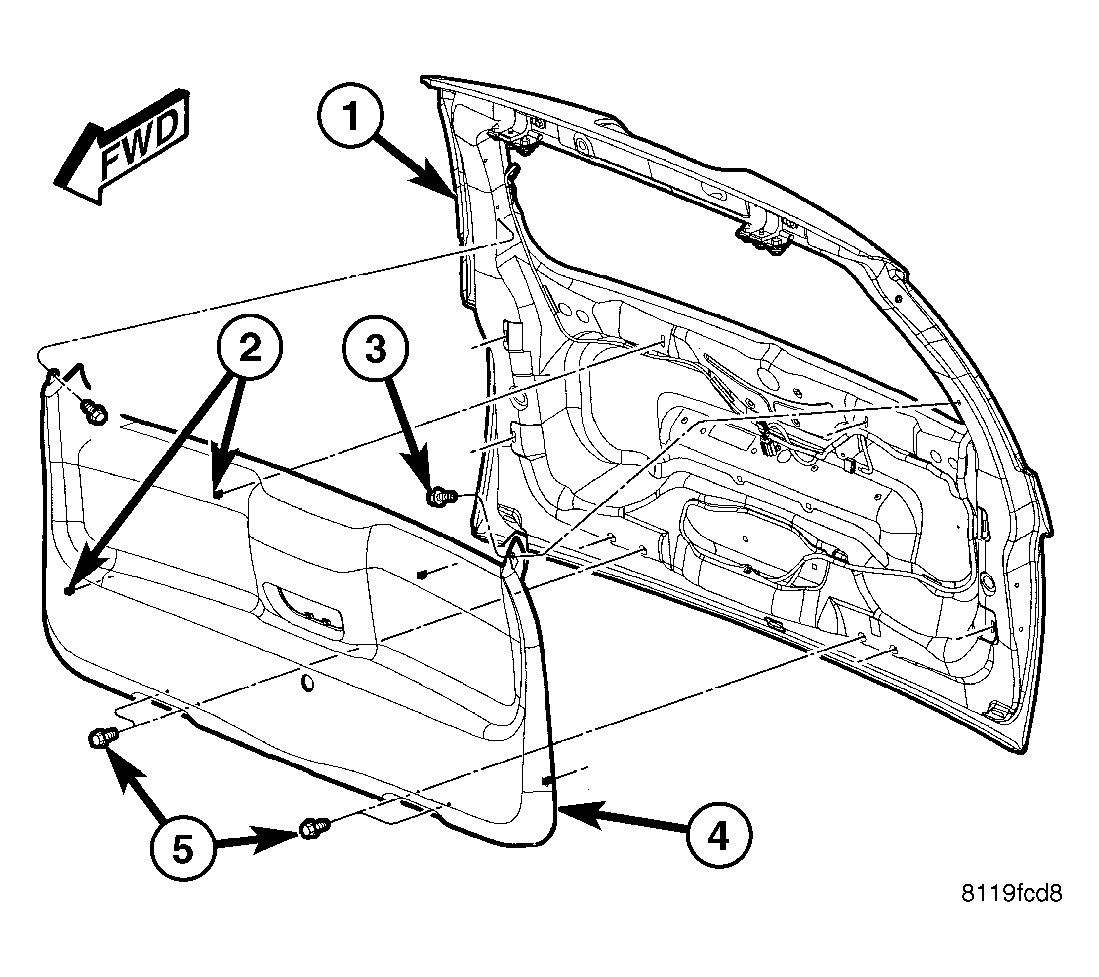

Fig 1: LOWER TRIM PANEL

Courtesy of DAIMLERCHRYSLER CORP.

Connect the electrical connector and install the lower trim panel (4) onto the guide pins (2).
Install the four lower screws (5) and two upper screws (3).

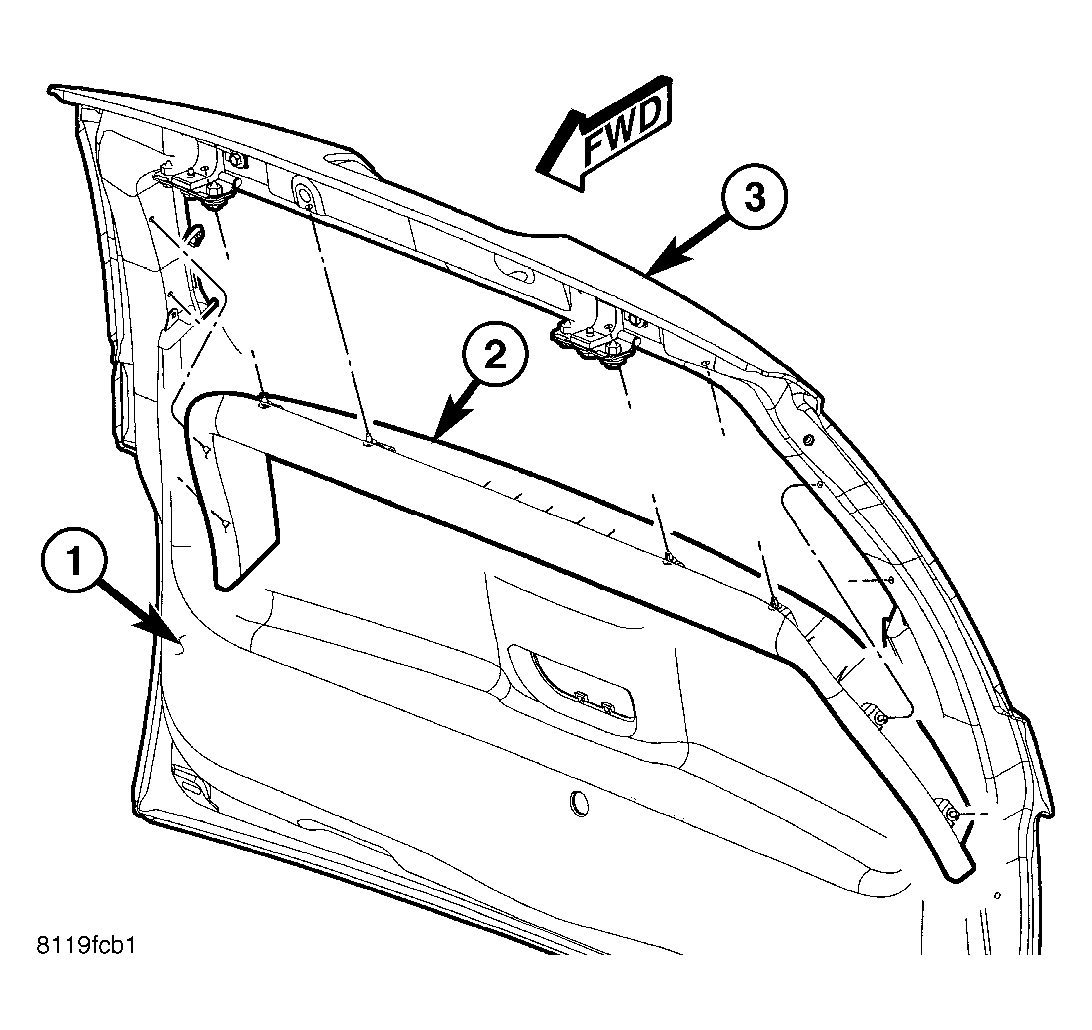

Fig 2: UPPER TRIM
Courtesy of DAIMLERCHRYSLER CORP.
Position the upper trim (2) into place and seat the push pin fasteners fully.
