Section 375 (Audio/Video (Service Information)): Radio: Installation

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

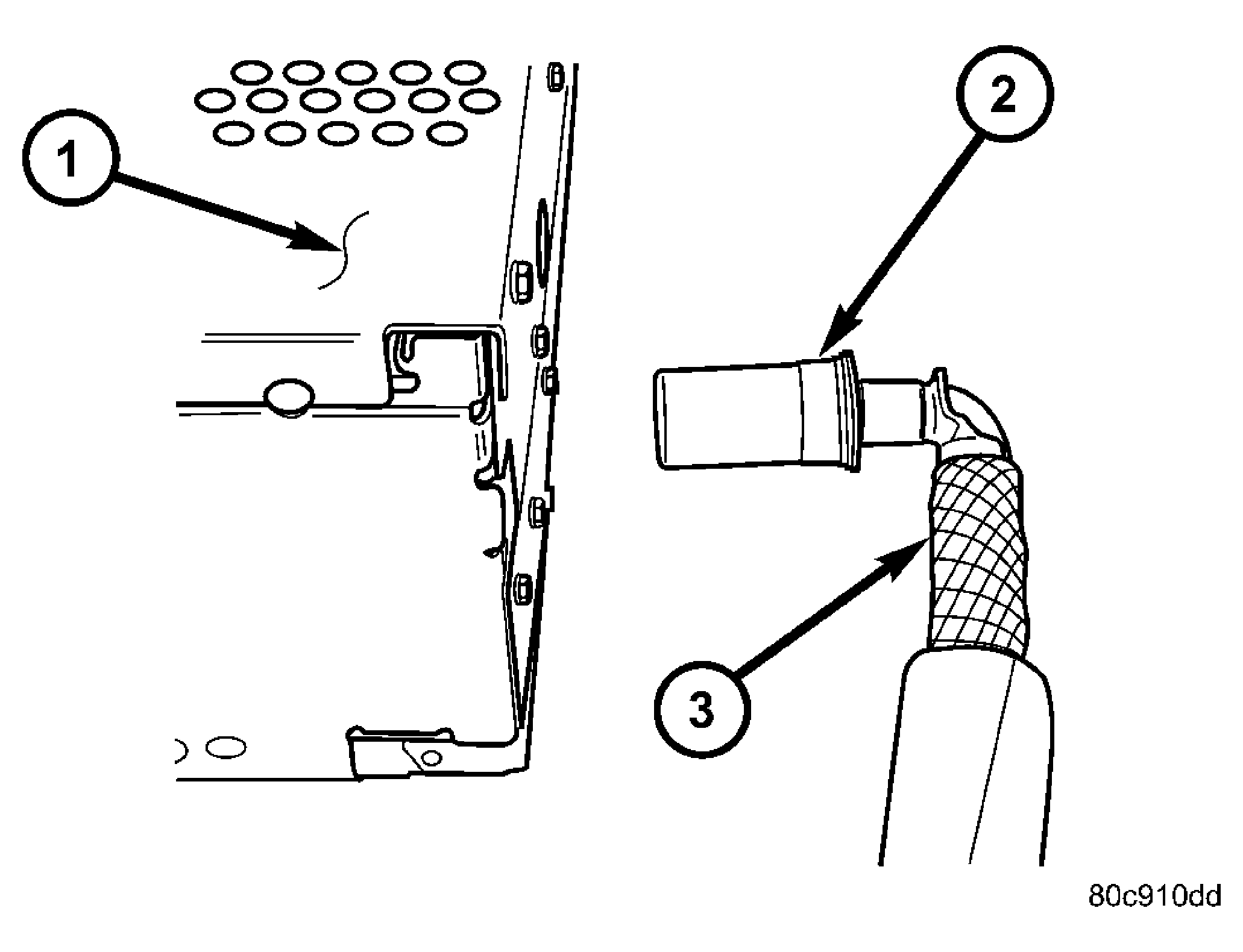

Fig 1: Antenna To Radio

Courtesy of DAIMLERCHRYSLER CORP.

Connect the electrical harness and antenna cable (3) to radio.

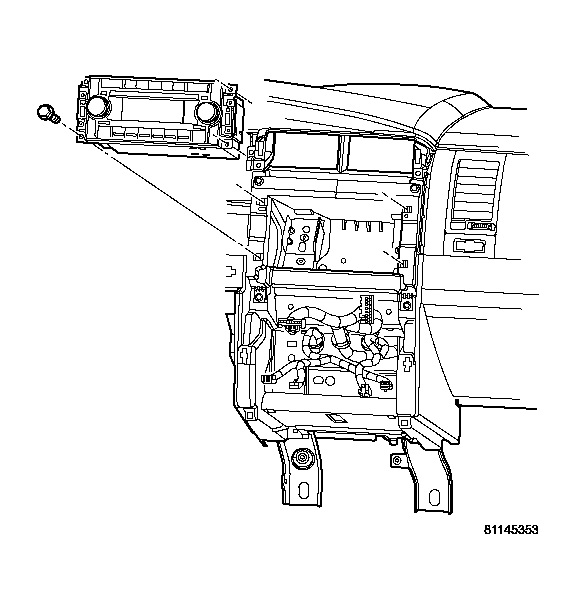

Fig 2: Radio
Courtesy of DAIMLERCHRYSLER CORP.
Position radio to instrument panel, and install mounting fasteners.
Install instrument panel center bezel (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL CENTER BEZEL - INSTALLATION) .
