Instrument Panel: Bezel-Center: Installation

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

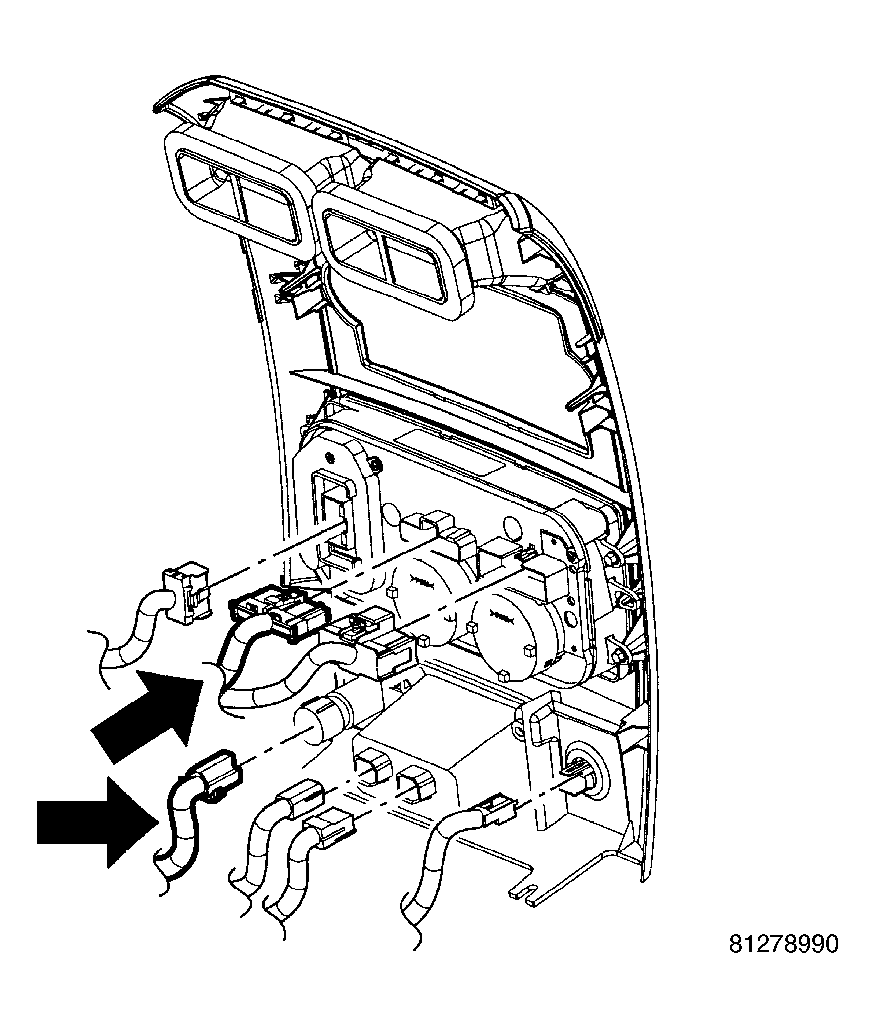

Fig 1: CENTER BEZEL ELECTRICAL CONNECTORS

Courtesy of DAIMLERCHRYSLER CORP.

Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to BODY/INSTRUMENT PANEL - WARNING)
Connect the electrical connectors.

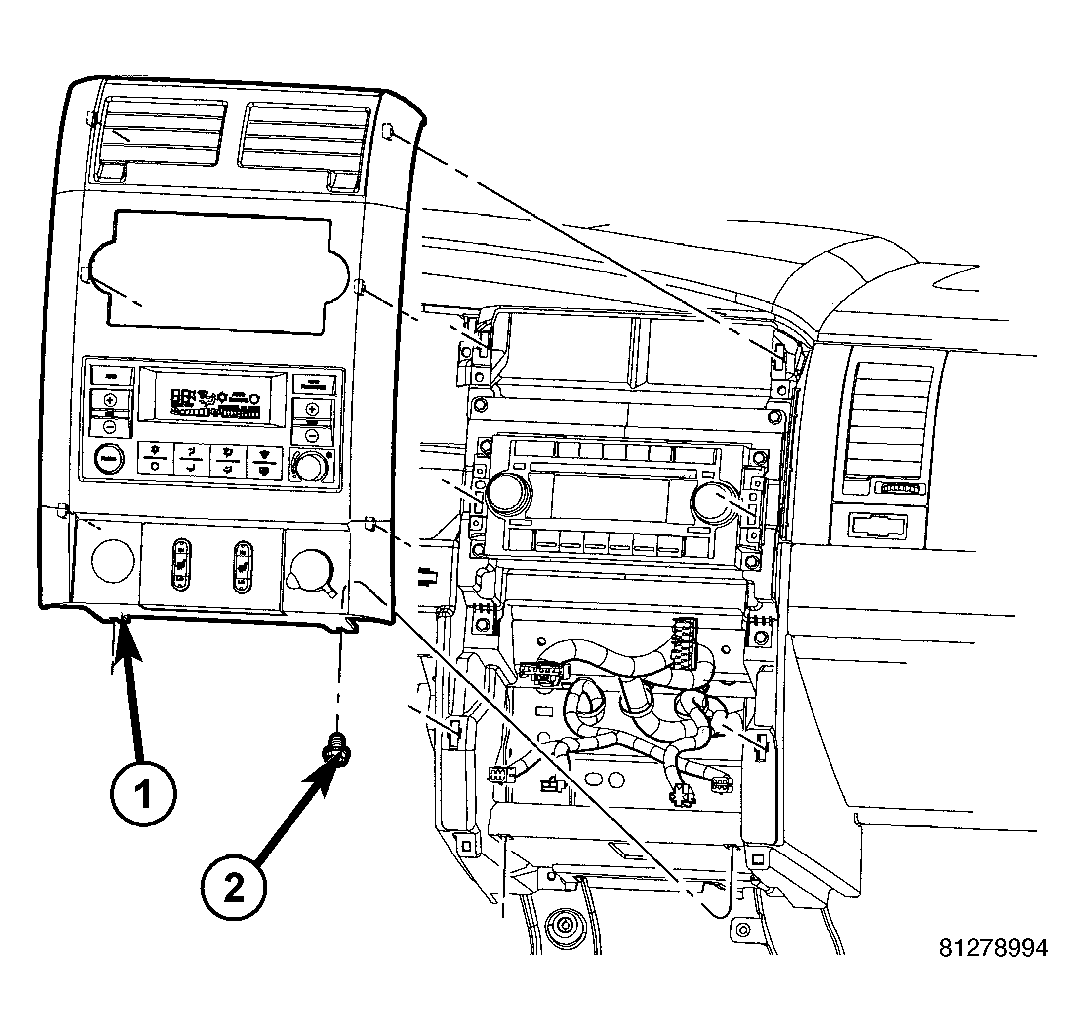

Fig 2: CENTER BEZEL
Courtesy of DAIMLERCHRYSLER CORP.
Install the center bezel (1) and install the two screws (2).
