Instrument Panel Antenna Cable: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: ON VEHICLES EQUIPPED WITH AIR-BAGS, REFER TO ARTICLE BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
  1. Disconnect and isolate the battery negative cable.
  2. Remove glove box (Refer to GLOVE BOX ).
  3. Disconnect extension cable end from antenna cable end.
  4. Disconnect cable hanger clip from HVAC unit.
  5. Remove radio as necessary to gain access to extension cable (Refer to REMOVAL  ).
    6. CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.

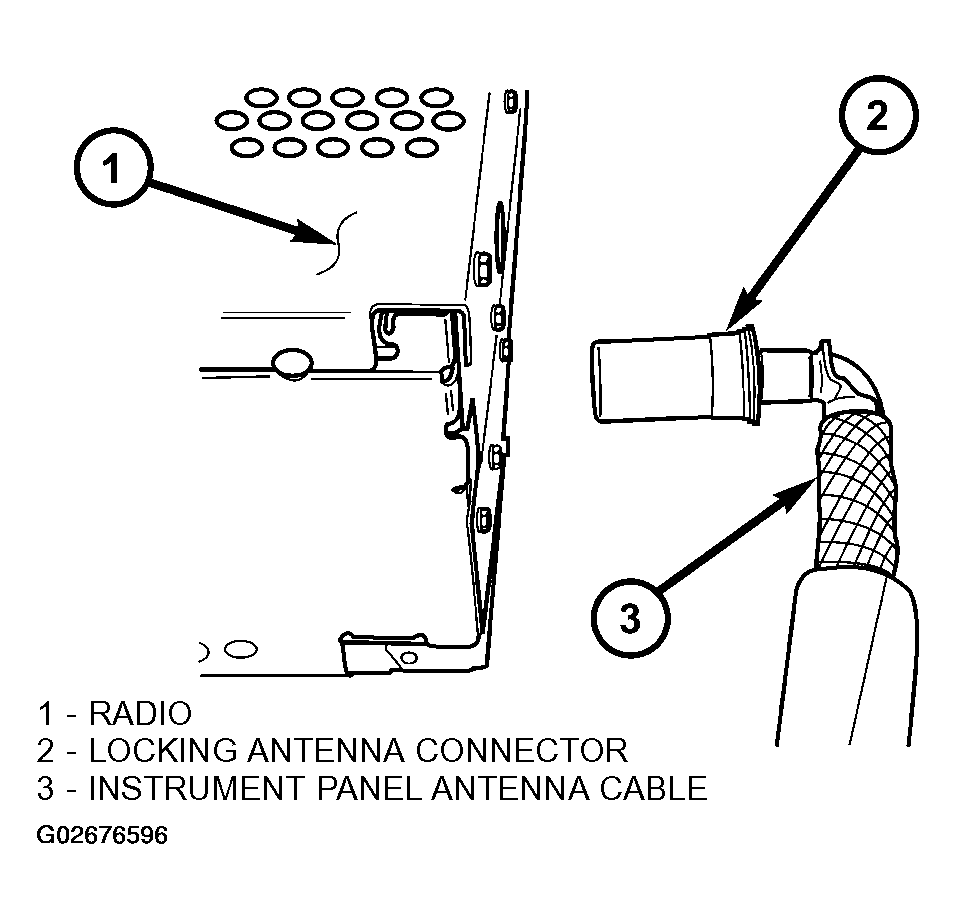

    Fig 1: Disconnecting Antenna Cable Connector From Radio
    G02676596Courtesy of DAIMLERCHRYSLER CORP.
  6. Disconnect the antenna cable by pulling the locking antenna connector away from the radio (Fig 1 ).
  7. Remove cable from vehicle.
