Section 261 (Audio System): Radio: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove cup holder.
  3. Remove trim panel above cupholder by pulling straight out.
  4. Remove center instrument panel trim panel.
  5. Remove screws holding radio to instrument panel.
  6. Pull radio rearward to gain access to the back of radio (Fig 1 ).

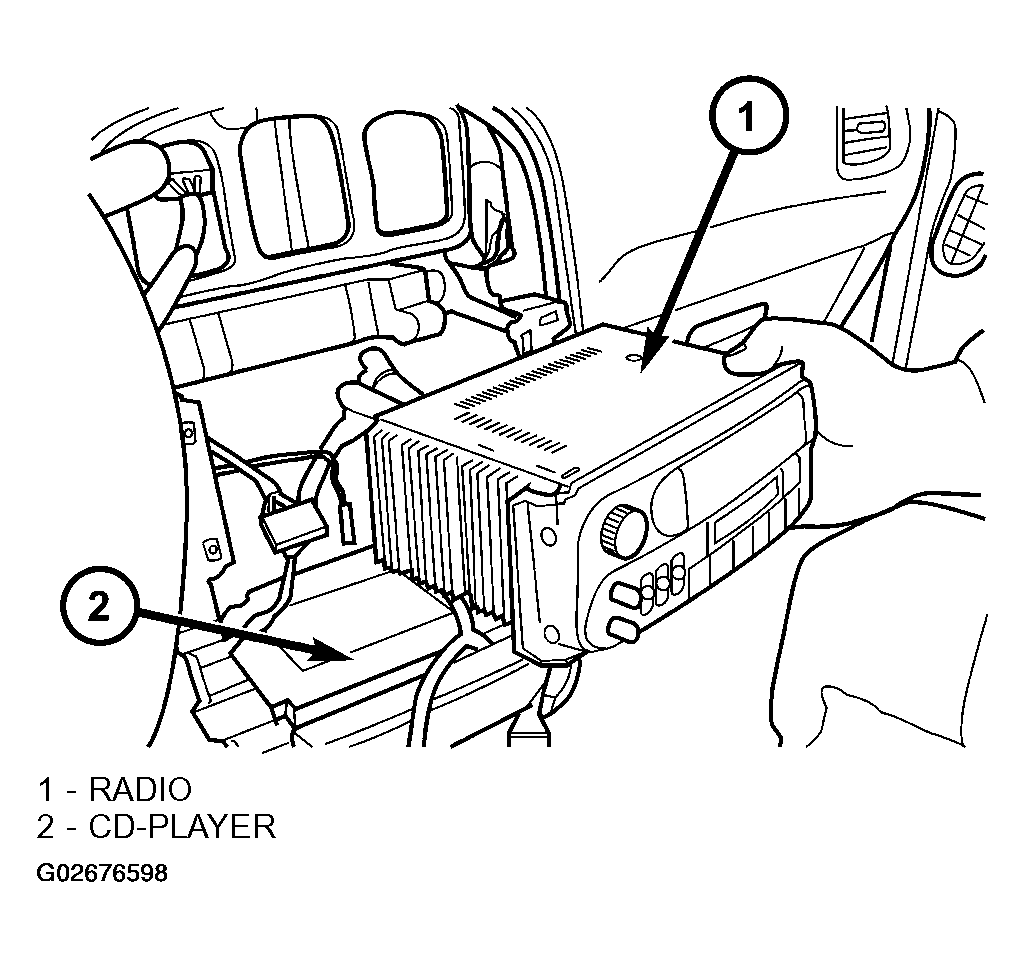

    Fig 1: Removing Radio And CD Player
    G02676598Courtesy of DAIMLERCHRYSLER CORP.
    7. CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.

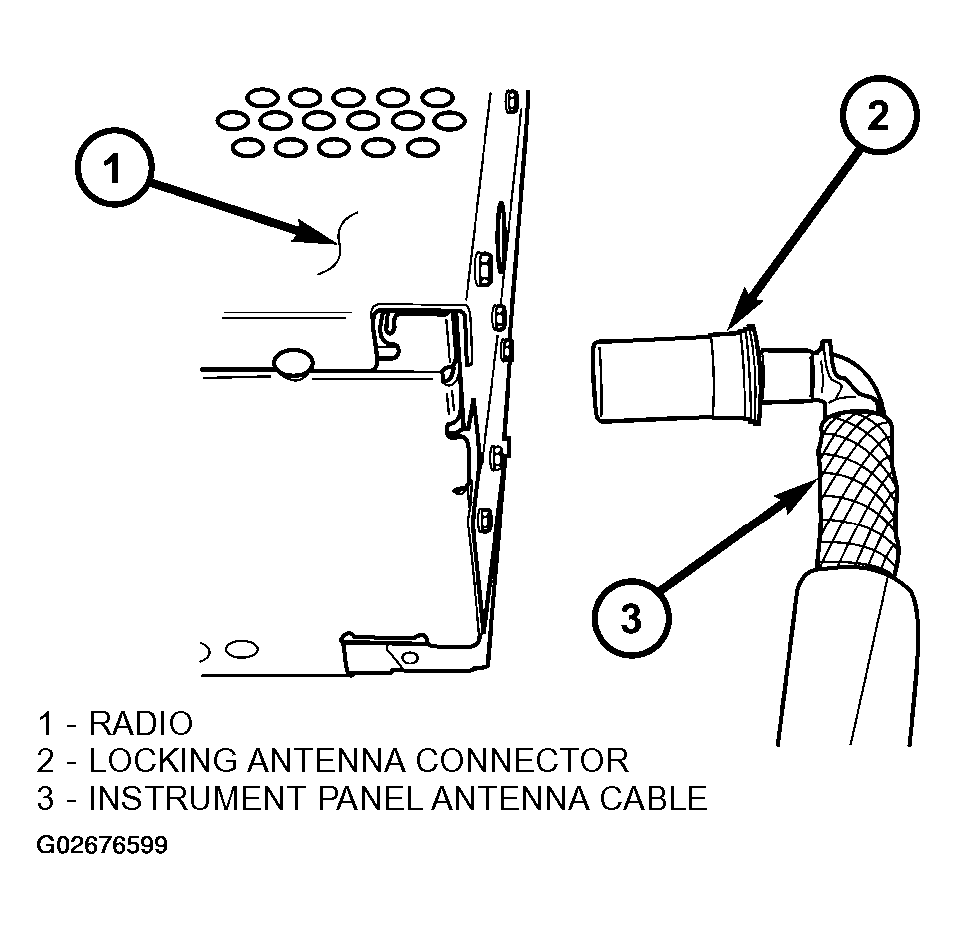

    Fig 2: Identifying Antenna Cable Connector
    G02676599Courtesy of DAIMLERCHRYSLER CORP.
  7. Disconnect the antenna cable by pulling the locking antenna connector away from the radio (Fig 2 ).
  8. Disconnect the wire connectors from the back of the radio.
