Floor Console: Removal

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the 4WD shifter boot. (Refer to REMOVAL )
Using a trim stick C-4755 or equivalent, pry up the transmission shifter boot from the console.
Remove the transmission shifter extension.
Remove the console inserts. (Fig 1 )
Remove and discard the three bolts. (Fig 2 )
Lift up on the back and remove the console.

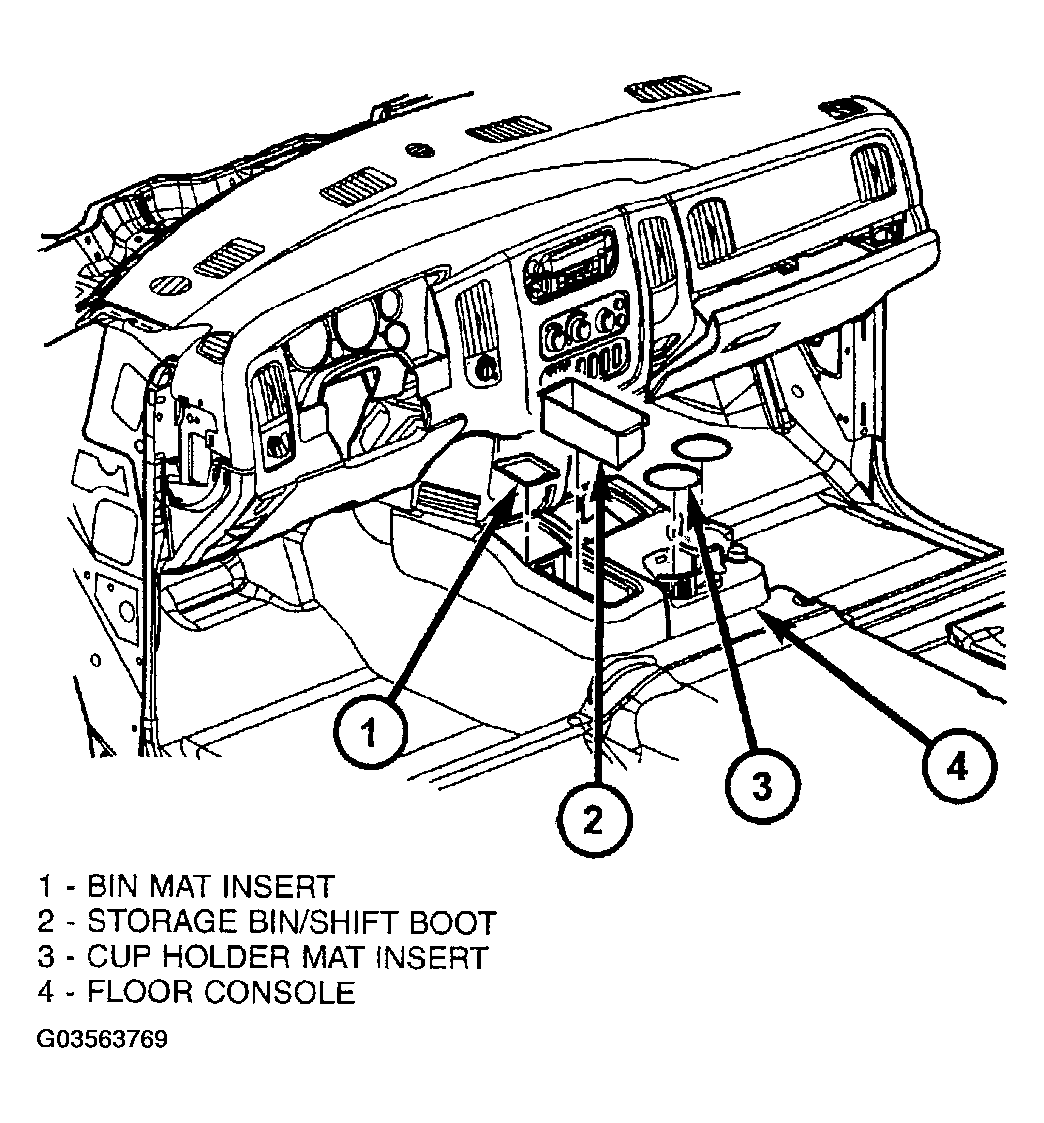

Fig 1: Removing Floor Console Inserts Component
Courtesy of DAIMLERCHRYSLER CORP.

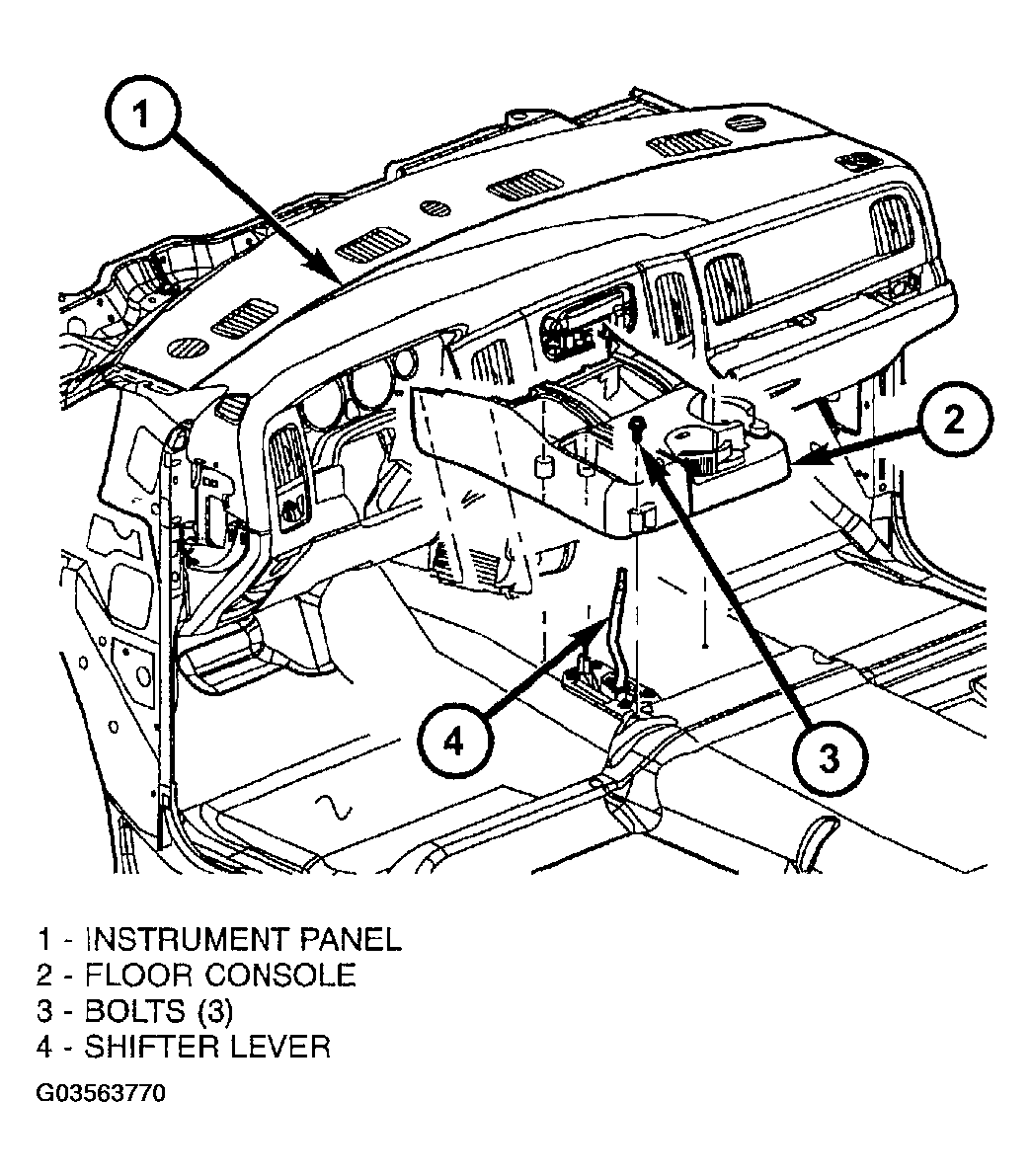

Fig 2: Removing Floor Console
Courtesy of DAIMLERCHRYSLER CORP.
