4WD Floor Shift Boot: Removal

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

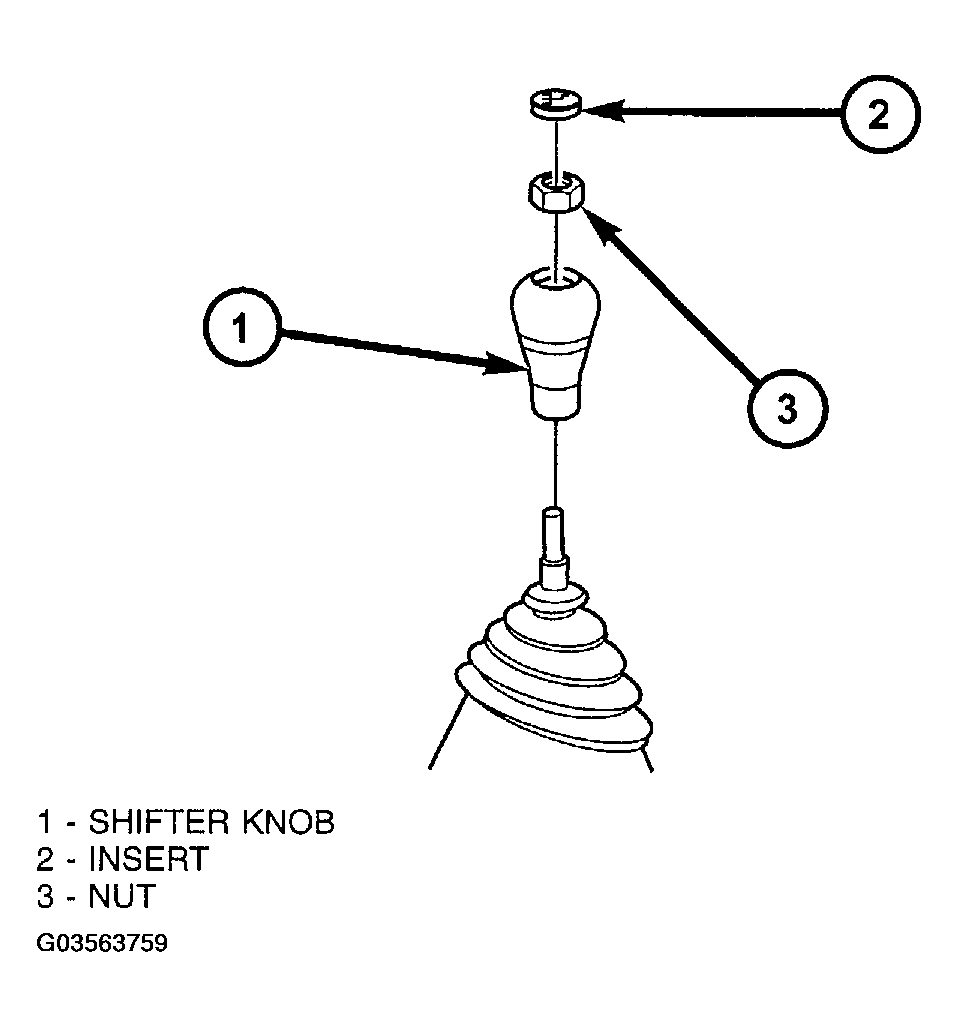

Using a small pry bar or equivalent, remove the insert, the nut and remove the shifter knob. (Fig 1 )

Fig 1: Removing Bolts Open Trim Plugs
Courtesy of DAIMLERCHRYSLER CORP.

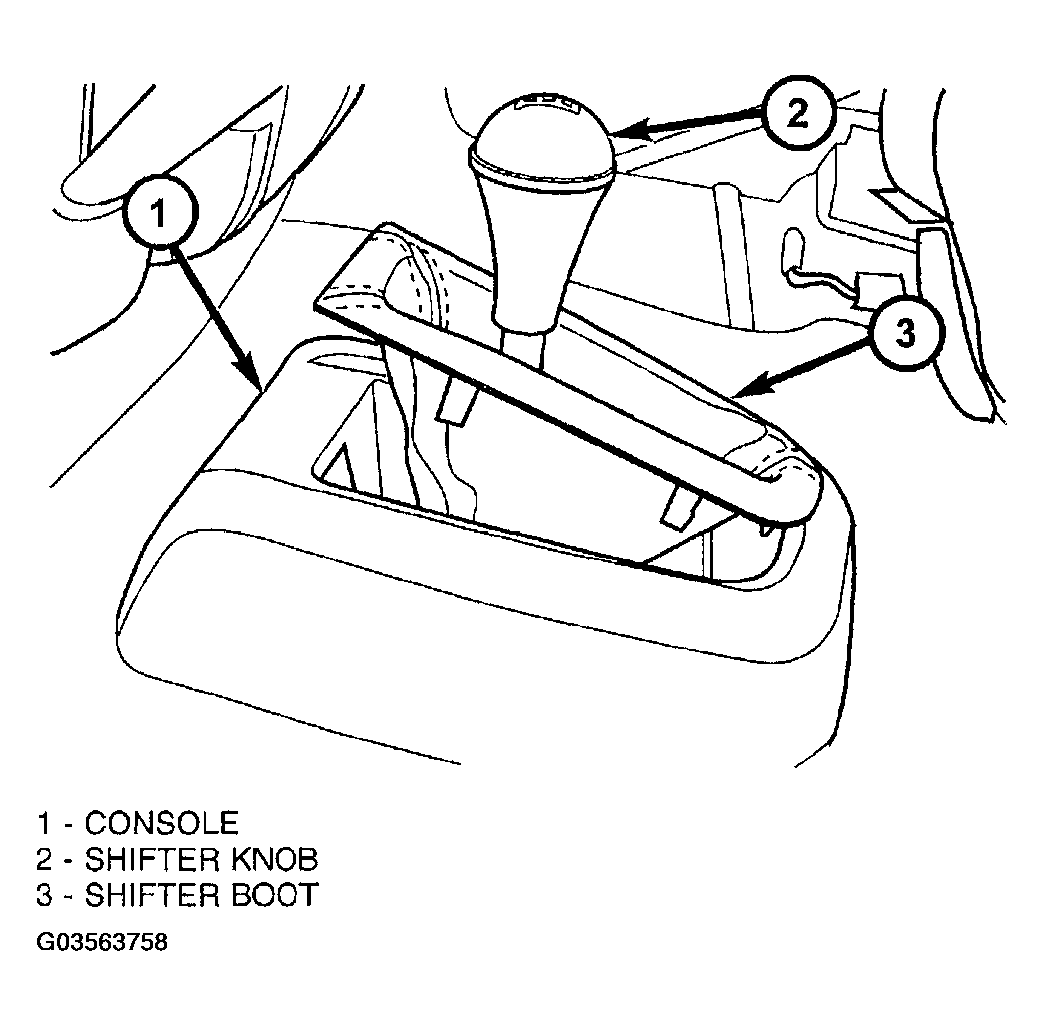

Using a trim stick C-4755 or equivalent, pry up the boot from the console. (Fig 2 )

Fig 2: Prying Up Boot From Console Using Trim Stick C-4755
Courtesy of DAIMLERCHRYSLER CORP.
