Fuel Level Sending Unit / Sensor: Removal

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

The fuel level sending unit (fuel level sensor) and float assembly is located on the side of the fuel pump module (Fig 1).

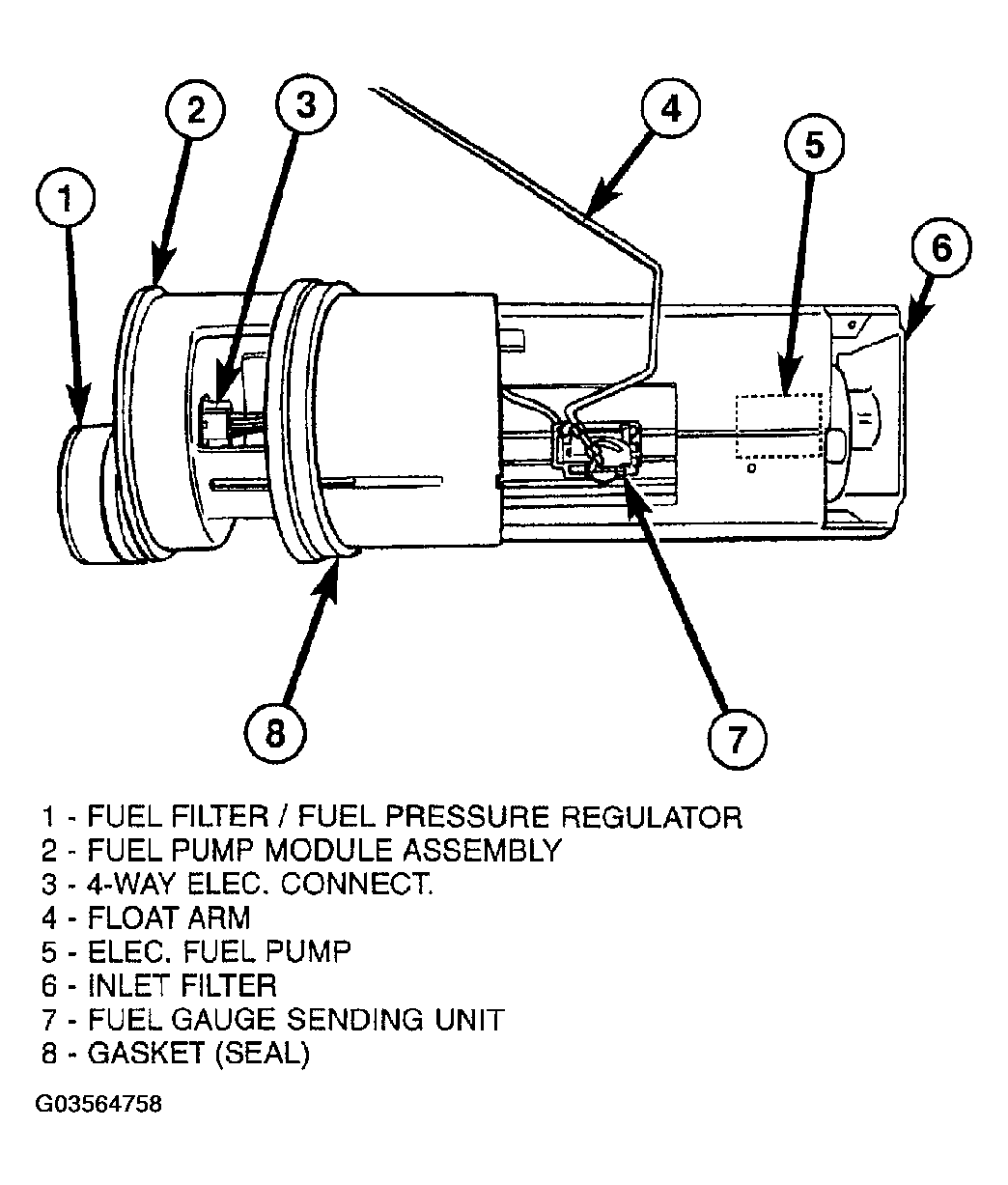

Fig 1: Locating Fuel Gauge Sending Unit

Courtesy of DAIMLERCHRYSLER CORP.

Remove fuel pump module from fuel tank. Refer to REMOVAL /INSTALLATION .
To remove sending unit from pump module, lift on plastic locking tab (Fig 2) while sliding sending unit tracks.
Disconnect 4-wire electrical connector (Fig 1) from fuel pump module. Separate necessary sending unit wiring from connector using terminal pick/removal tool.

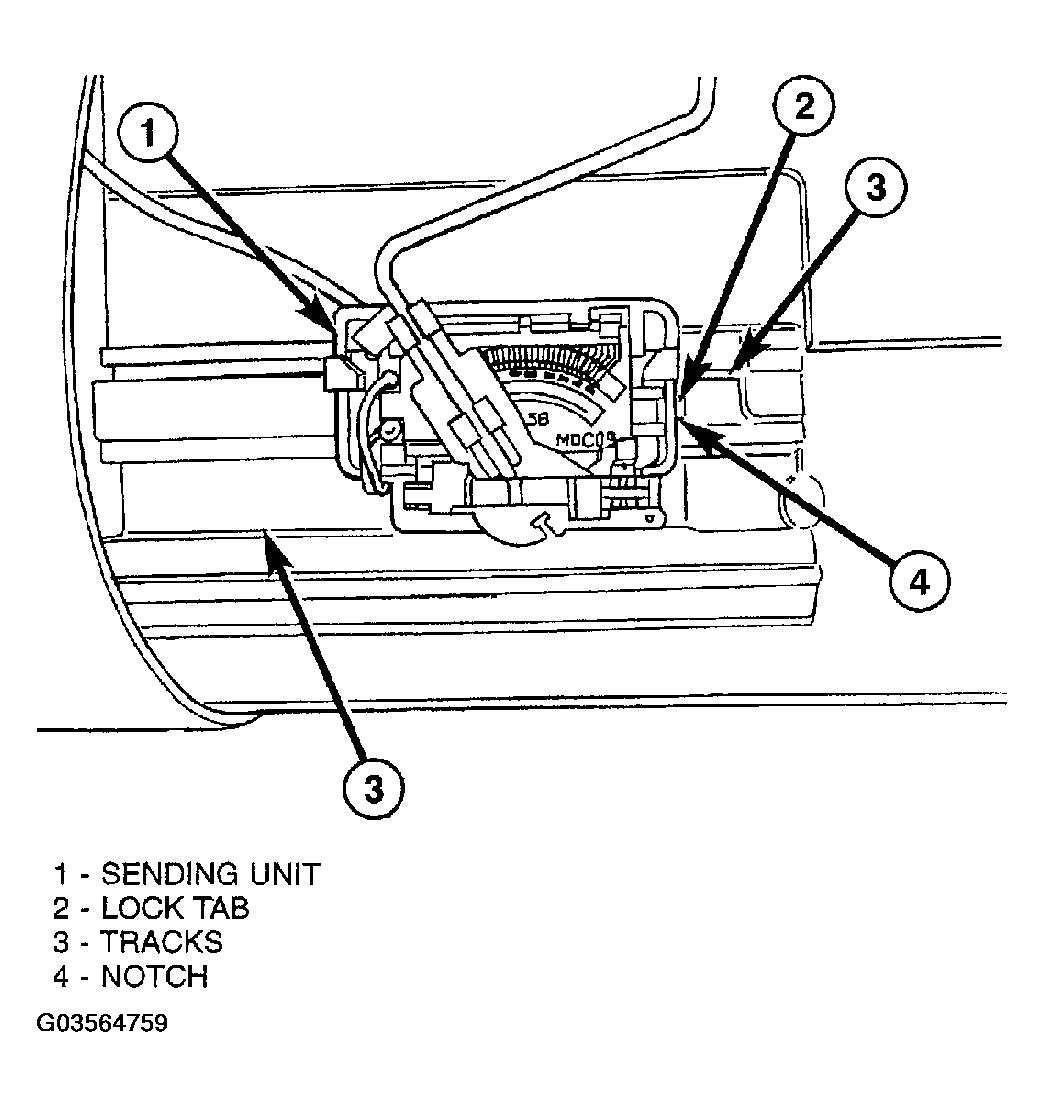

Fig 2: Identifying Fuel Gauge Sending Unit
Courtesy of DAIMLERCHRYSLER CORP.
