Fuel Pump Module: Installation

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

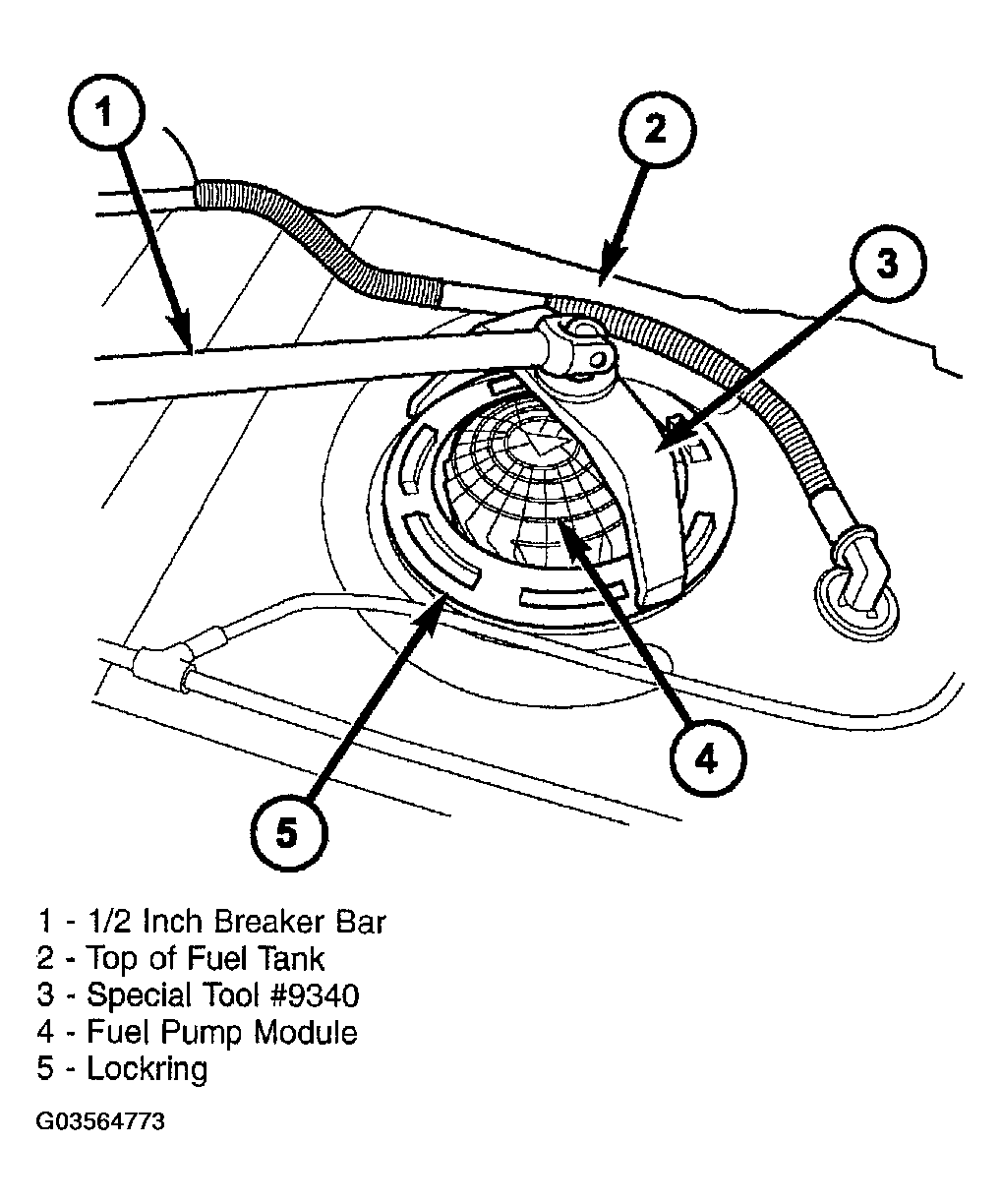

Fig 1: Installing Fuel Pump Module Lockring

Courtesy of DAIMLERCHRYSLER CORP.

Using a new seal (gasket), position fuel pump module into opening in fuel tank.
Position lockring (5) over top of fuel pump module.
Rotate module until embossed alignment arrow points to center alignment mark. This step must be performed to prevent float from contacting side of fuel tank. Also be sure fuel fitting on top of pump module is pointed to drivers side of vehicle.
Install Special Tool 9340 (3) (Fig 1) to lockring.
Install 1/2 inch drive breaker (1) into Special Tool 9340 (3).
Tighten lockring (clockwise) until all seven notches have engaged.
Install fuel tank. Refer to INSTALLATION .
