Glass Run Lower Channel: Removal

Remove door trim panel. (Refer to REMOVAL ).
Remove watershield an necessary. (Refer to REMOVAL ).

Fig 1: Identifying Components Of Power Window Regulator Assembly
Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Identifying Components Of Front Door Window Regulator
Courtesy of DAIMLERCHRYSLER CORP.

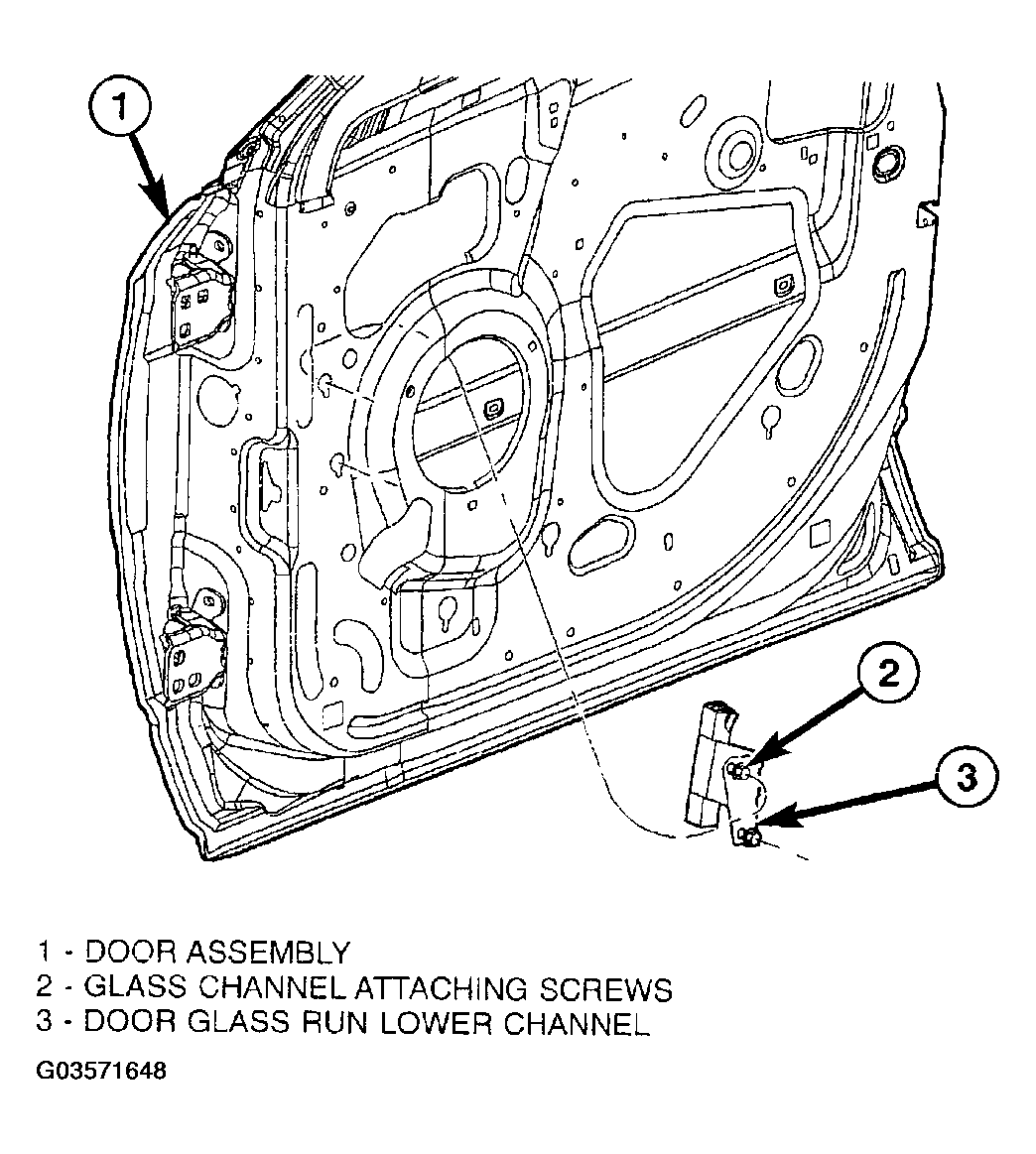

Loosen screws attaching door glass run lower channel to inner door panel (Figure ).
Remove door glass run lower channel from inner door panel.
Extract door glass run lower channel through front access hole.
