Front Door Applique: Installation

  1. Position applique on vehicle.
  2. Hook rear edge of applique over rear edge of door frame and seat applique bottom edge on sheet metal (Fig 1 ).
  3. Install screws attaching applique to door frame.

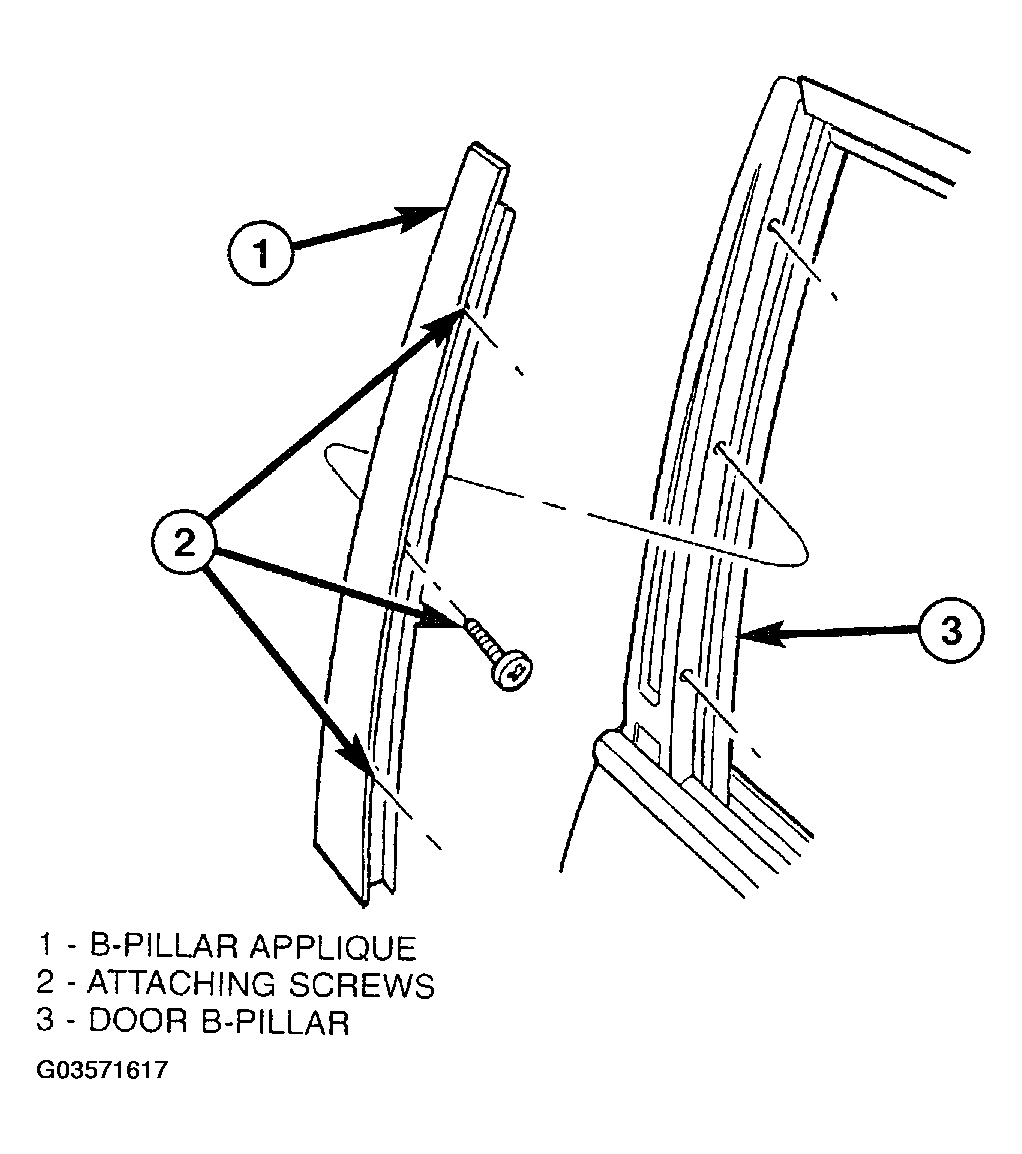

    Fig 1: Identifying B-Pillar Applique And Attaching Screws
    G03571617Courtesy of DAIMLERCHRYSLER CORP.
  4. Install door glass run channel. (Refer to INSTALLATION  ).
  5. Install outer door belt molding.
