Door Glass Run Channel: Installation

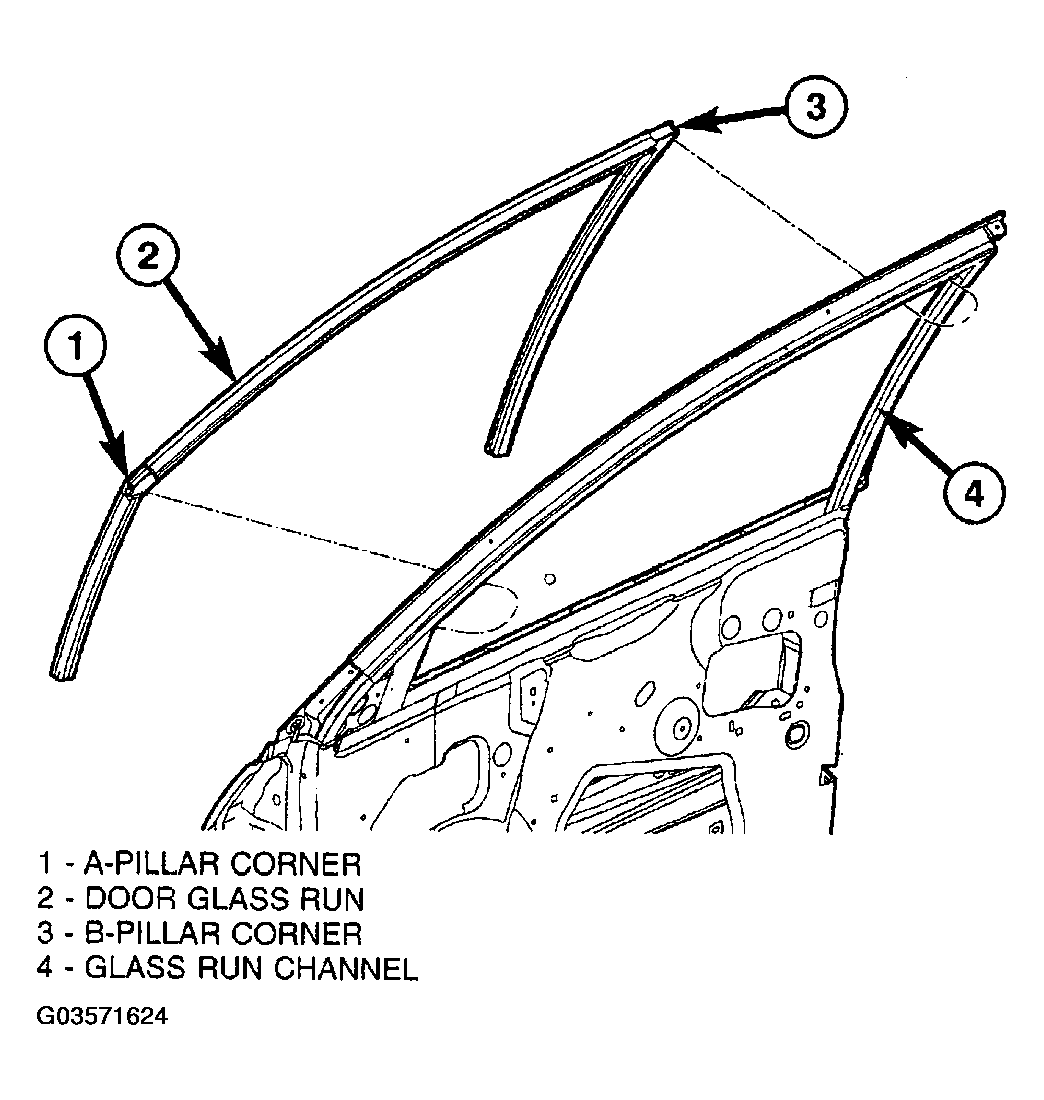

Place door glass run into position (Figure ).
Insert A-pillar section of door glass run into door through belt line and lower to bottom of door using molded corner as guide.
Locate top corner portion of the B-pillar door glass run section into the glass run channel and slide it up until the part bottoms out on the header portion of the glass run channel.
NOTE: Do not JAM the corner into place.
Install entire B-pillar door glass run into glass run channel.
Starting at the B-pillar corner, install 8 to 10 inches of the header glass run into the glass run channel.
NOTE: Care must be taken so not to push or pull the header section and the molded corner off location.
Install A-pillar door glass run section by indexing the molded corner detail into he glass run channel. Slide the glass run up the A-pillar until the rubber molded joint just touches the frame.
Install fully the entire A-pillar door glass run into the glass run channel.
Working from A-pillar rearward install header portion of the door glass run into the glass run channel.
Verify the door glass run is fully seated the header, A-pillar and B-pillar.
Install inner belt weatherstrip. (Refer to FRONT INNER BELT MOLDING WEATHERSTRIP ).
Install door trim panel. (Refer to INSTALLATION ).
