Check Strap: Removal

  1. Remove screws attaching door check strap to A-pillar (Fig 1 ).
  2. Remove check strap from A-pillar.
  3. Remove front door trim panel. (Refer to REMOVAL  ).
  4. Remove front door watershield. (Refer to REMOVAL  )
  5. Remove front door speaker, if equipped.
  6. Remove nuts attaching check strap to door end frame (Fig 2 ).
  7. Remove check strap from door through speaker hole.

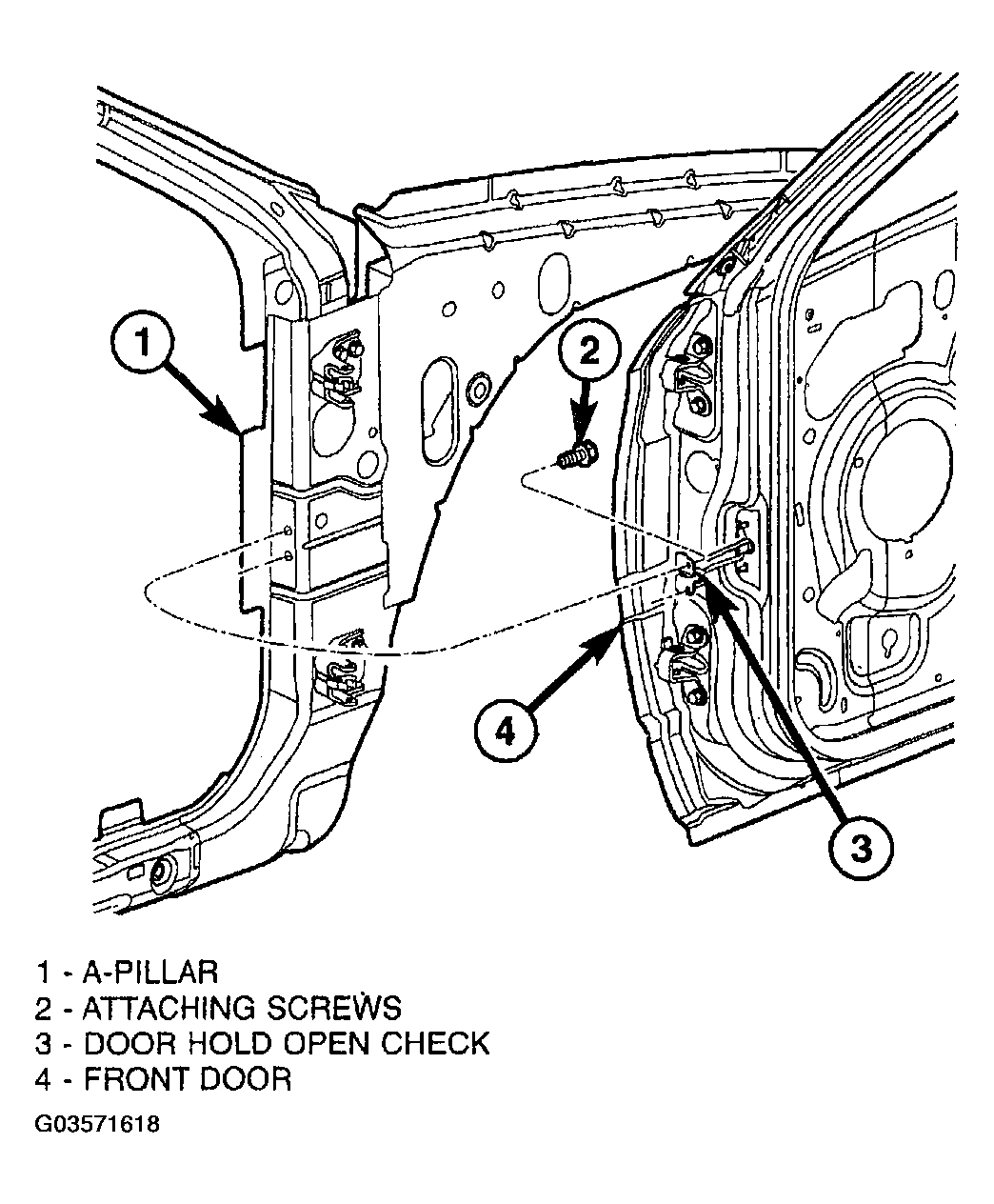

    Fig 1: Removing Screws Attaching Door Check Strap To A-Pillar
    G03571618Courtesy of DAIMLERCHRYSLER CORP.

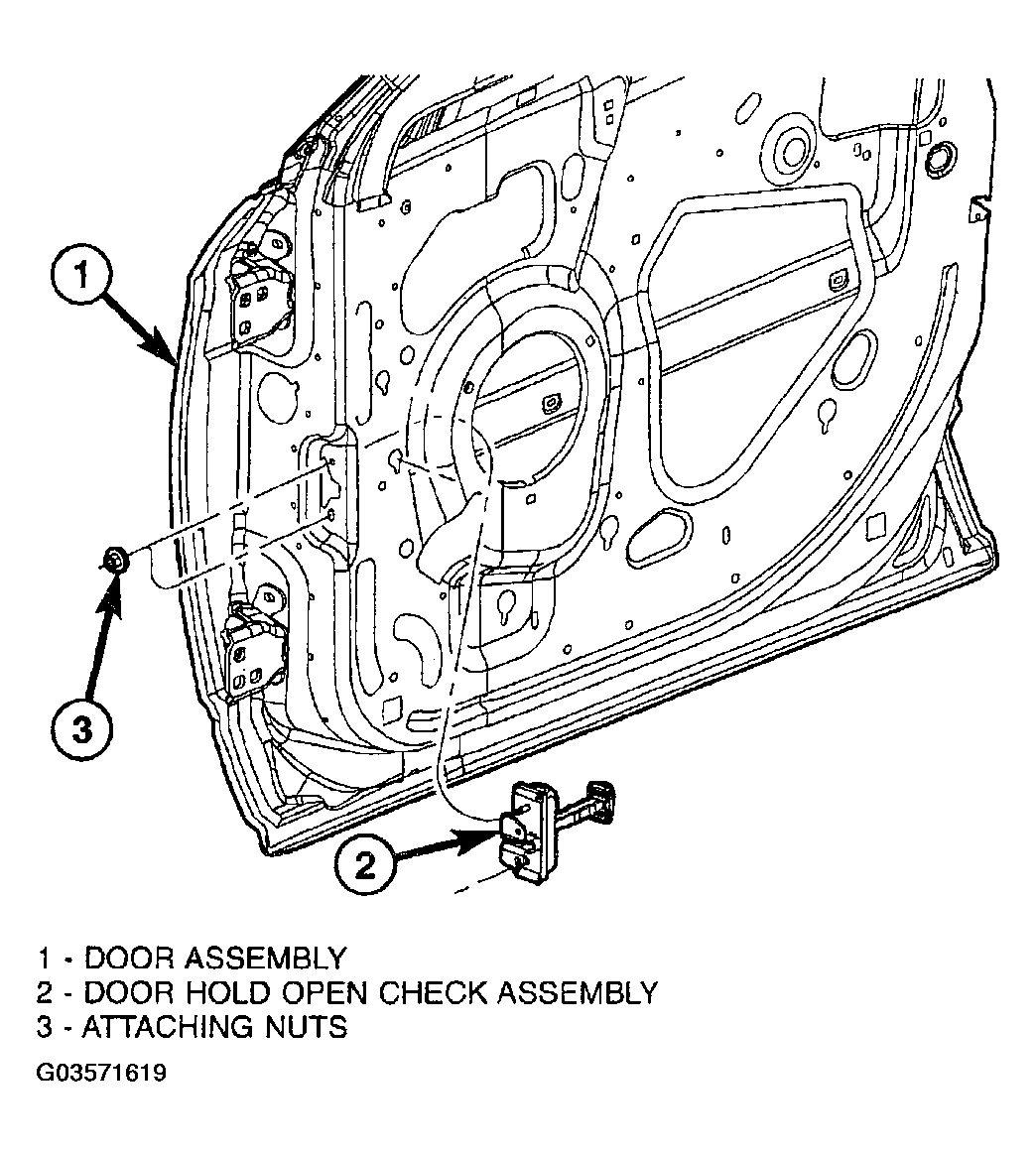

    Fig 2: Removing Nuts Attaching Check Strap To Door End Frame
    G03571619Courtesy of DAIMLERCHRYSLER CORP.
