Front Seat Back: Installation

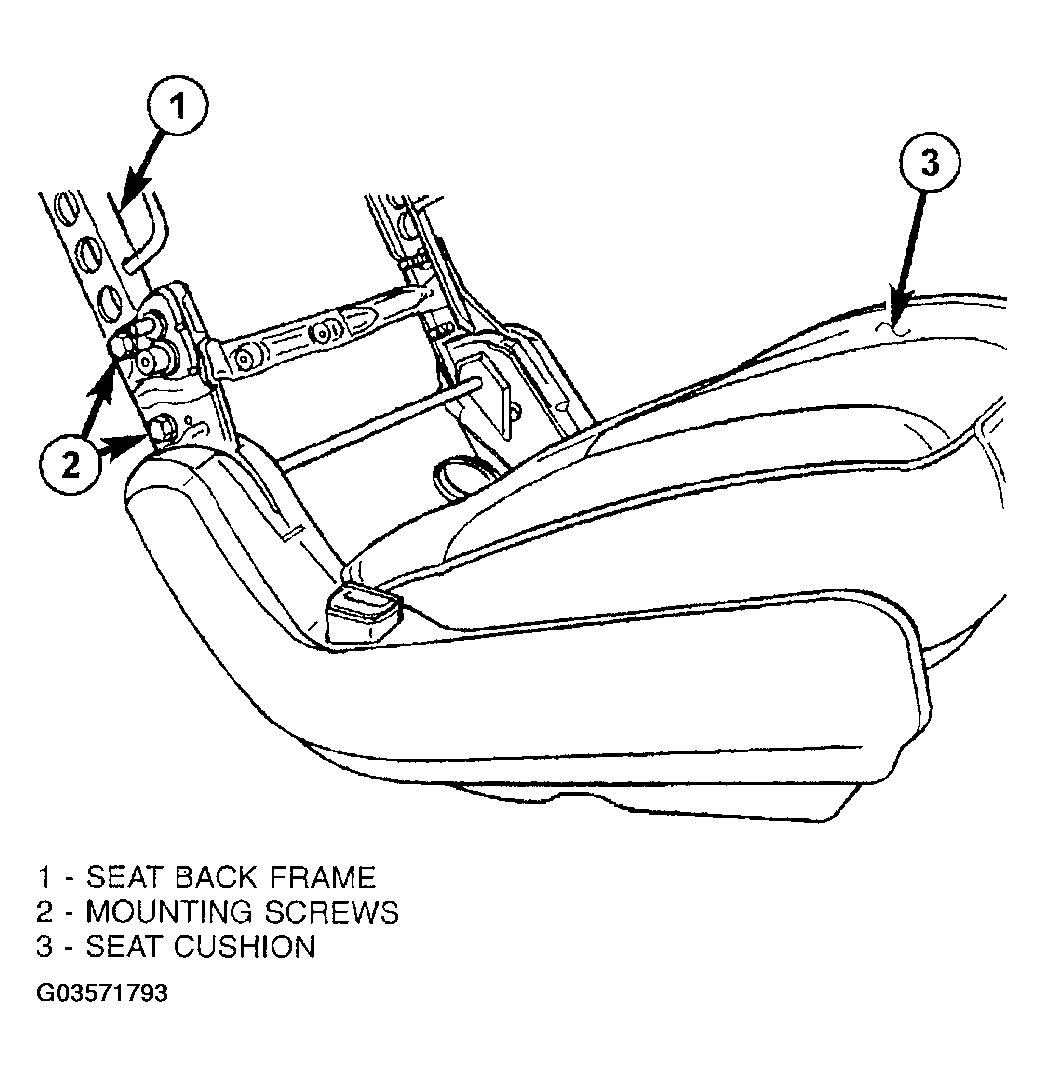

  1. Install seat back by slide it downward onto the seat assembly (Figure ).
  2. Install seat back mounting screws (Figure ).

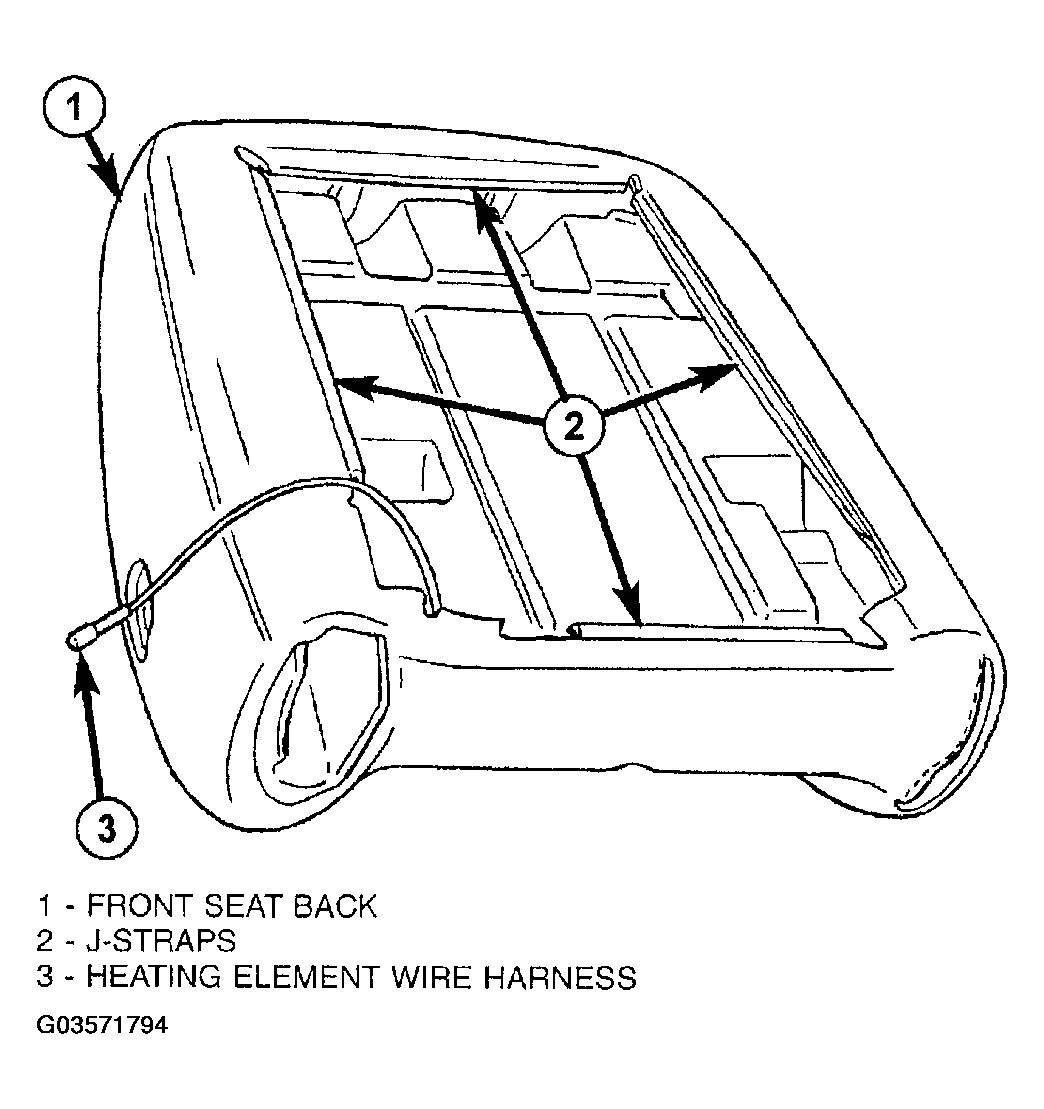

  3. Install seat back cover and engage J-straps.
  4. Install three screw attaching side cushion cover. (Refer to INSTALLATION  )
  5. Install seat back panel onto seat. (Refer to INSTALLATION  )
  6. Install screw attaching front cushion shield.
  7. Remove the armrest. (Refer to INSTALLATION  ).
  8. Install front seat into vehicle. (Refer to INSTALLATION  ).
  9. Connect battery negative cable.
