Front Seat: Installation
- Place front seat into vehicle.

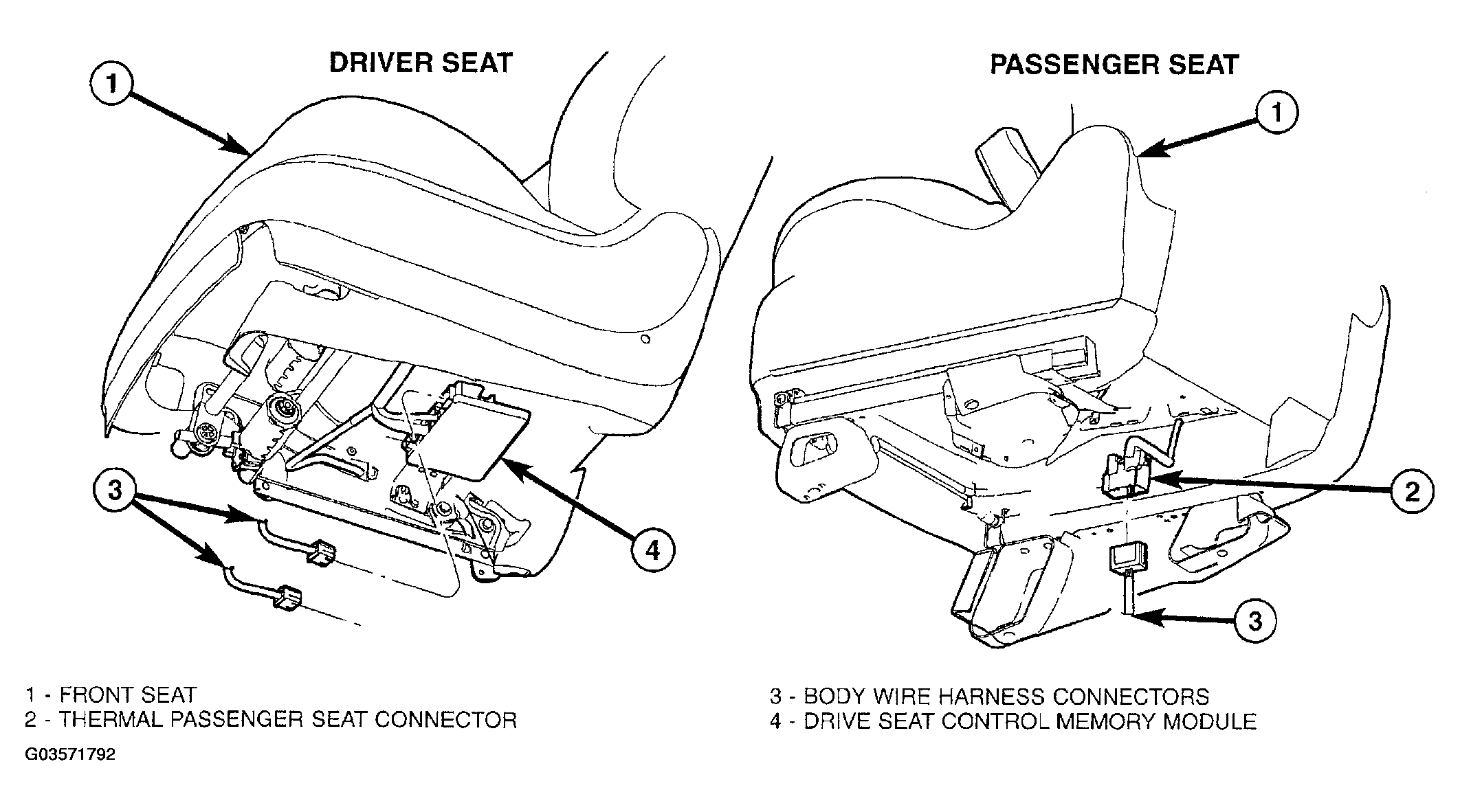

- Connect wire connectors under seat (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Place front seat studs into mounting holes.
- Raise and support vehicle.

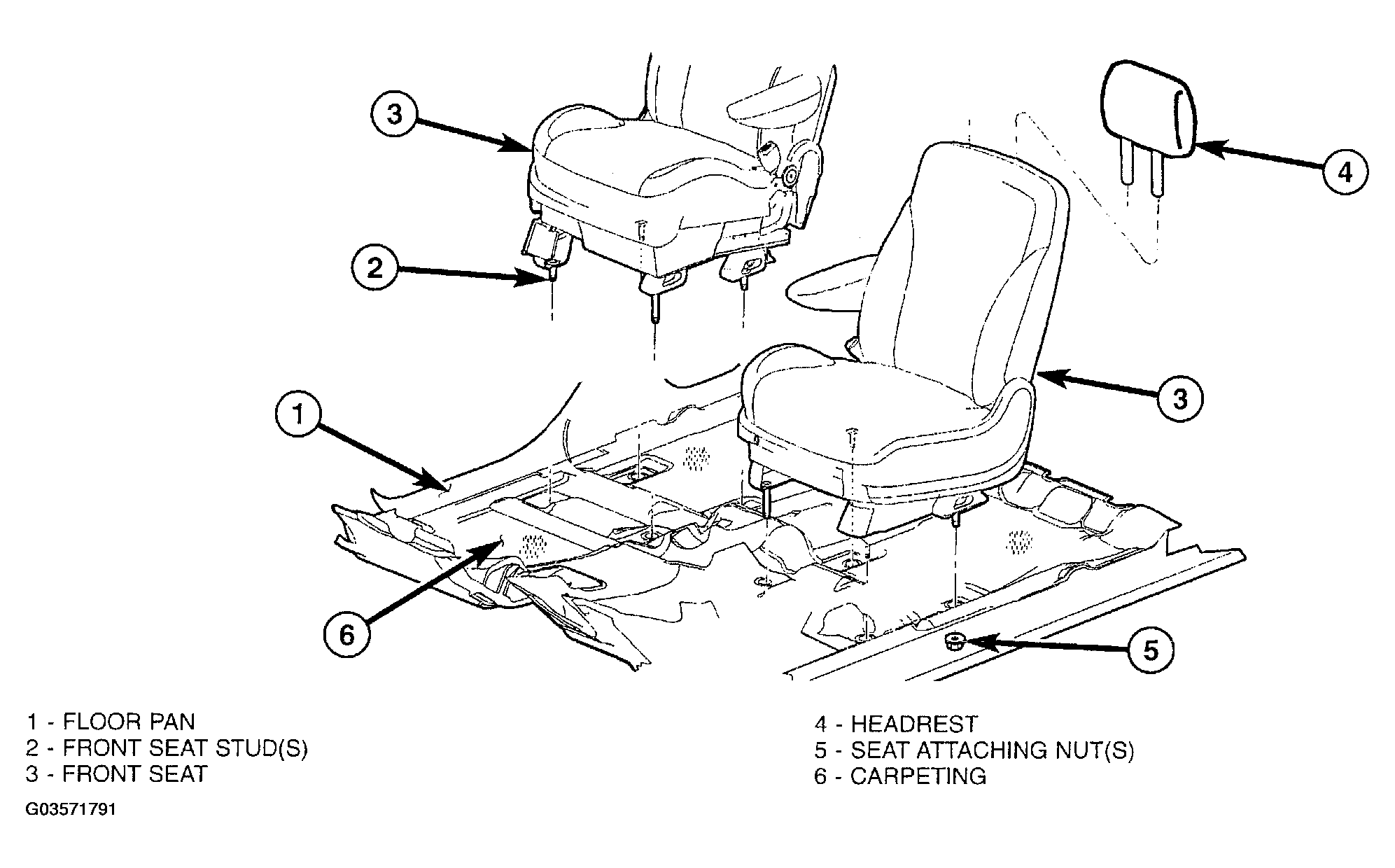

- Install four nuts attaching seat to floor pan (Figure
).
- Tighten nuts to 68 N.m (50 ft. lbs.) torque.
- For right side front seat, install muffler to body heat shield. (Refer to HEAT SHIELDS
).
- For left side front seat, install vapor canister. (Refer to VAPOR CANISTER
).
- Remove vehicle supports and lower vehicle.
- Install front seat headrest. (Refer to INSTALLATION
).
- Connect battery negative cable.
