First Row Seat: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove headrest. (Refer to REMOVAL  ).
  3. Remove two nuts attaching seat to floor pan (Fig 1 ).

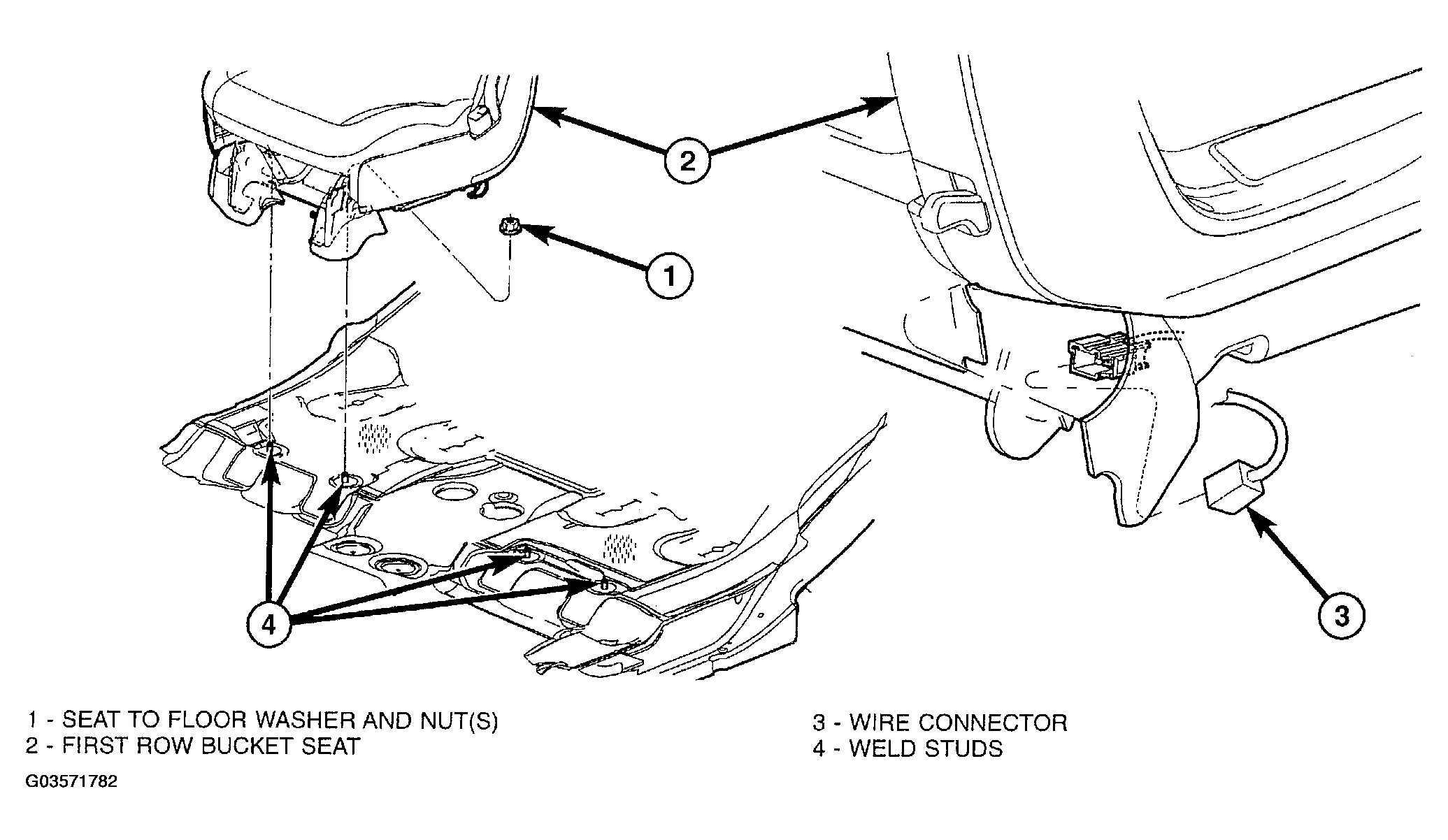

    4. Fig 1: Removing First Row Seats
    G03571782Courtesy of DAIMLERCHRYSLER CORP.
  4. Tilt seat forward and disconnect heated. seat wire connector.
  5. Remove seat from vehicle.
