Seat System: Headrest: Removal

  1. Lift head restraint to top of travel.
  2. Depress lock button on side of sleeve at top of seat back (Fig 1 ).

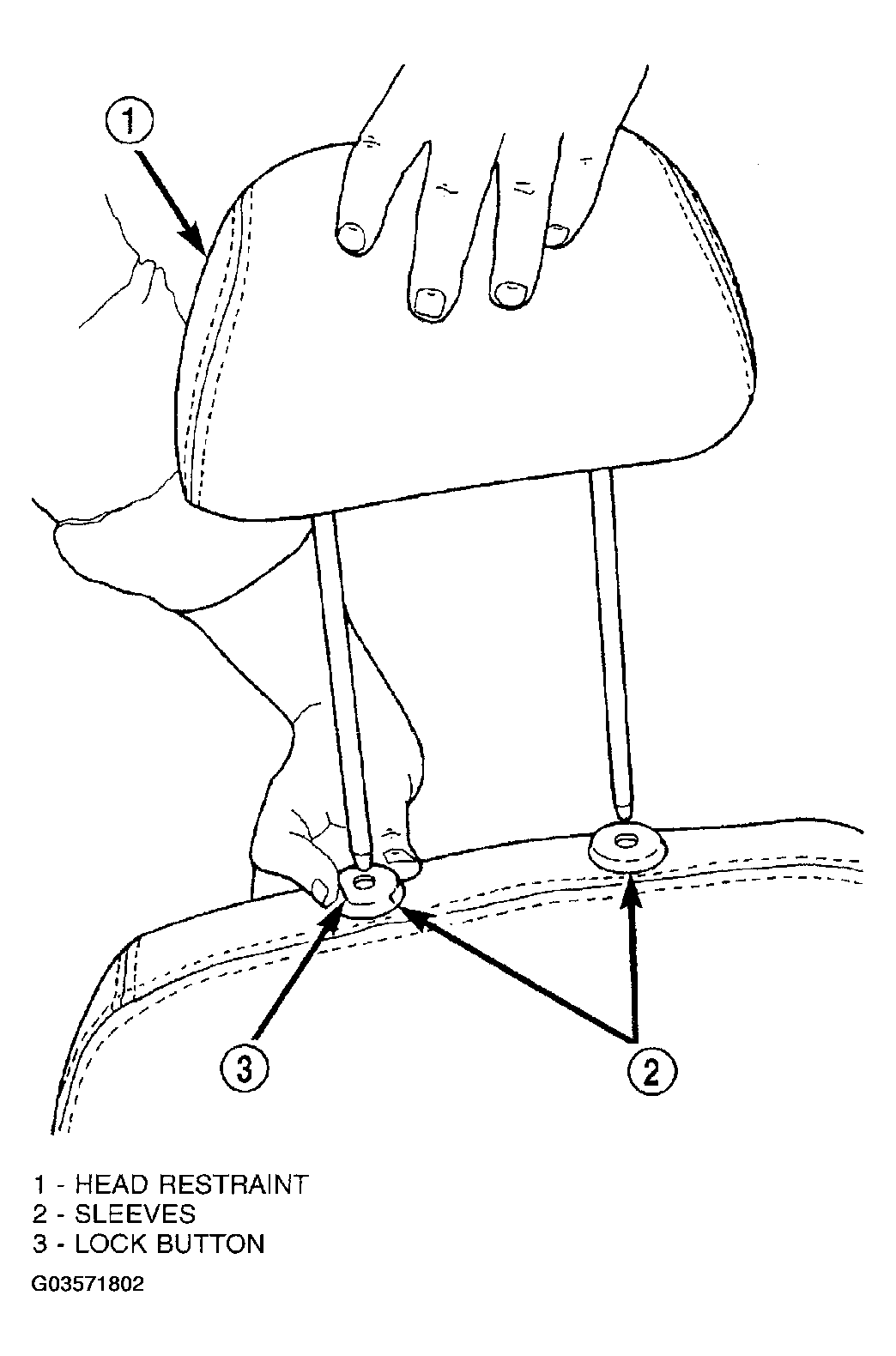

    3. Fig 1: Removing Head Restraint
    G03571802Courtesy of DAIMLERCHRYSLER CORP.
  3. Pull head restraint from top of seat back.
