No Communication With Engine Control Module/Powertrain Control Module: Description

A diagnostic output is made from the ECM (M/T) or PCM (A/T) terminal No. 85 to the diagnostic output terminal No. 7 of the data link connector. See Fig 1.

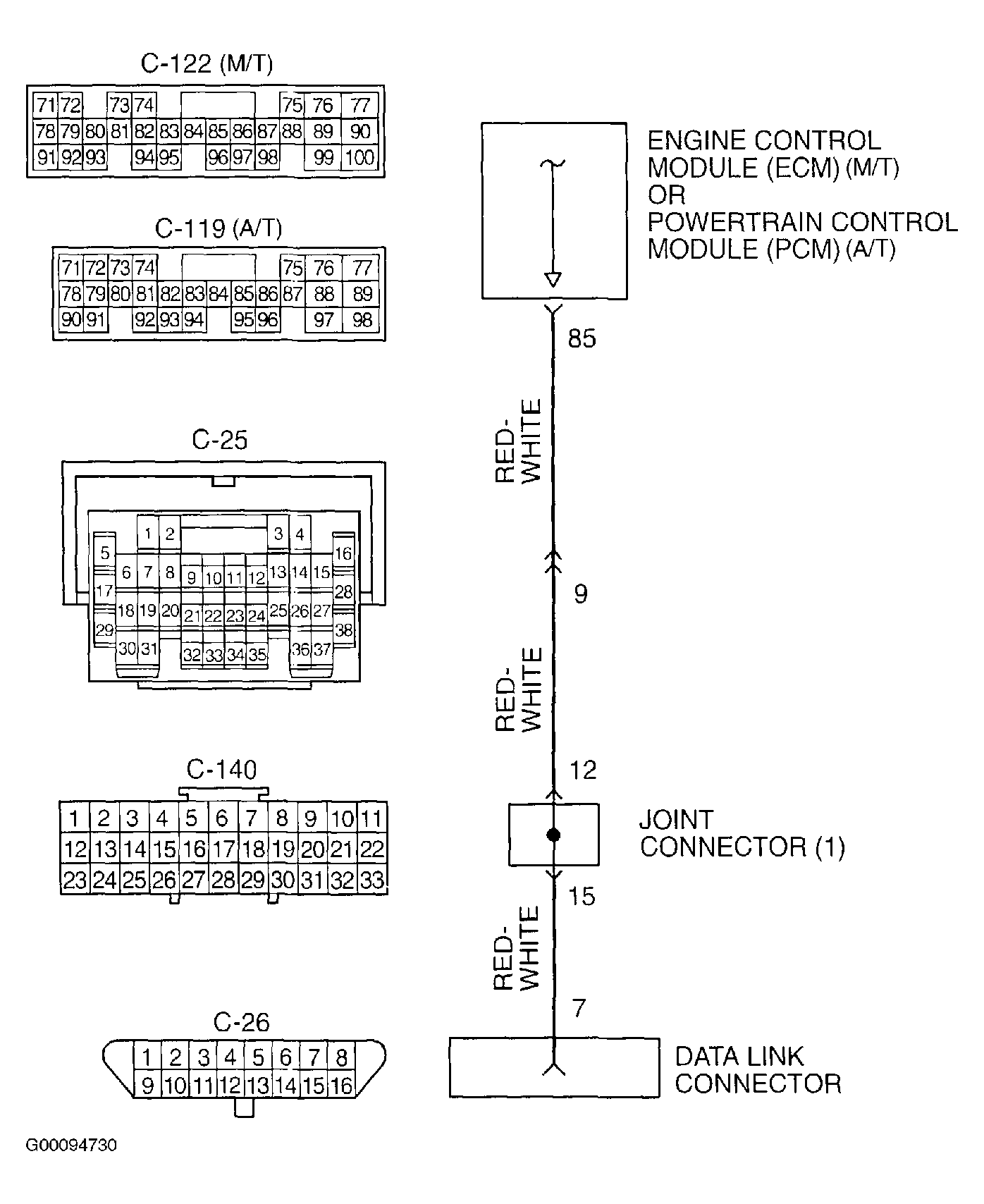

Fig 1: Identifying Data Link Connector Serial Circuit

Courtesy of CHRYSLER CORP.
