Engine Intake System - Coupe
>>
Intake Manifold Plenum
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

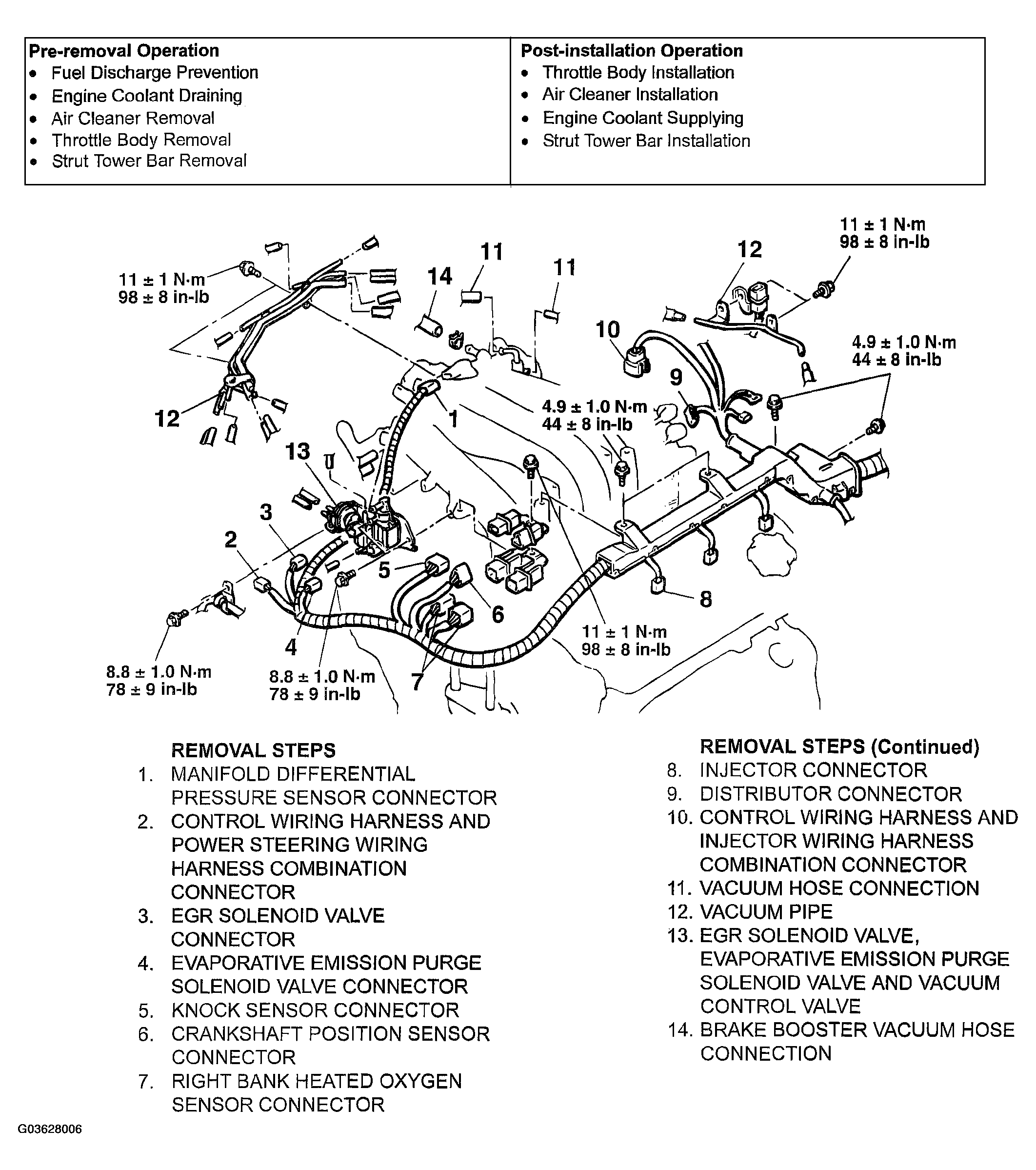

Fig 1: Removing & Installing Intake Manifold Plenum (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

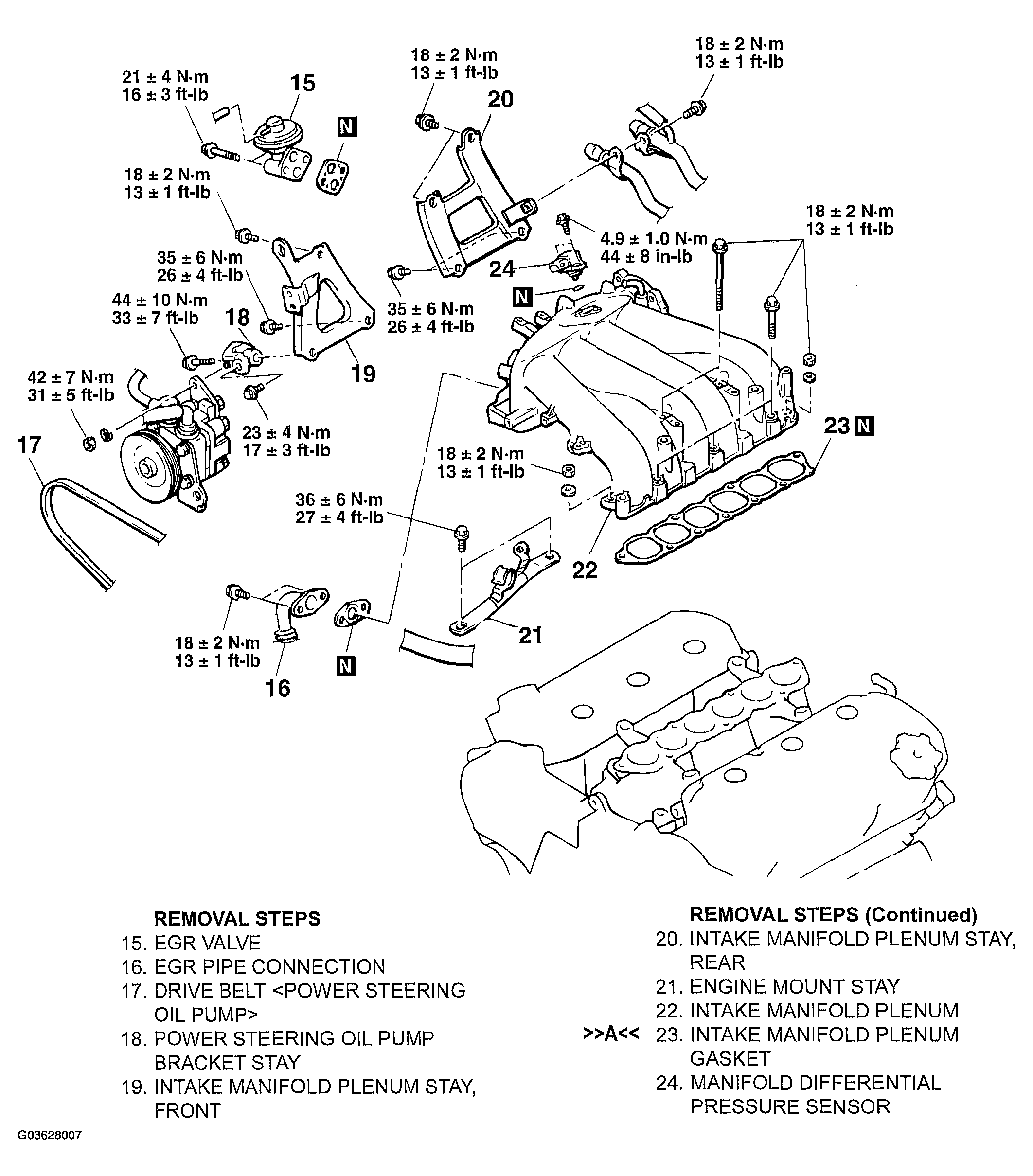

Fig 2: Removing & Installing Intake Manifold Plenum (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
