Door System - Rear: Hinge: Removal

  1. Mark outline of hinge on B-pillar and door end frame.
  2. Remove nut and bolt attaching hinge to B-pillar. Refer to REMOVAL  .
  3. Remove nut and bolt attaching hinge to door end frame (Fig 1 ).
  4. Remove hinge from door.

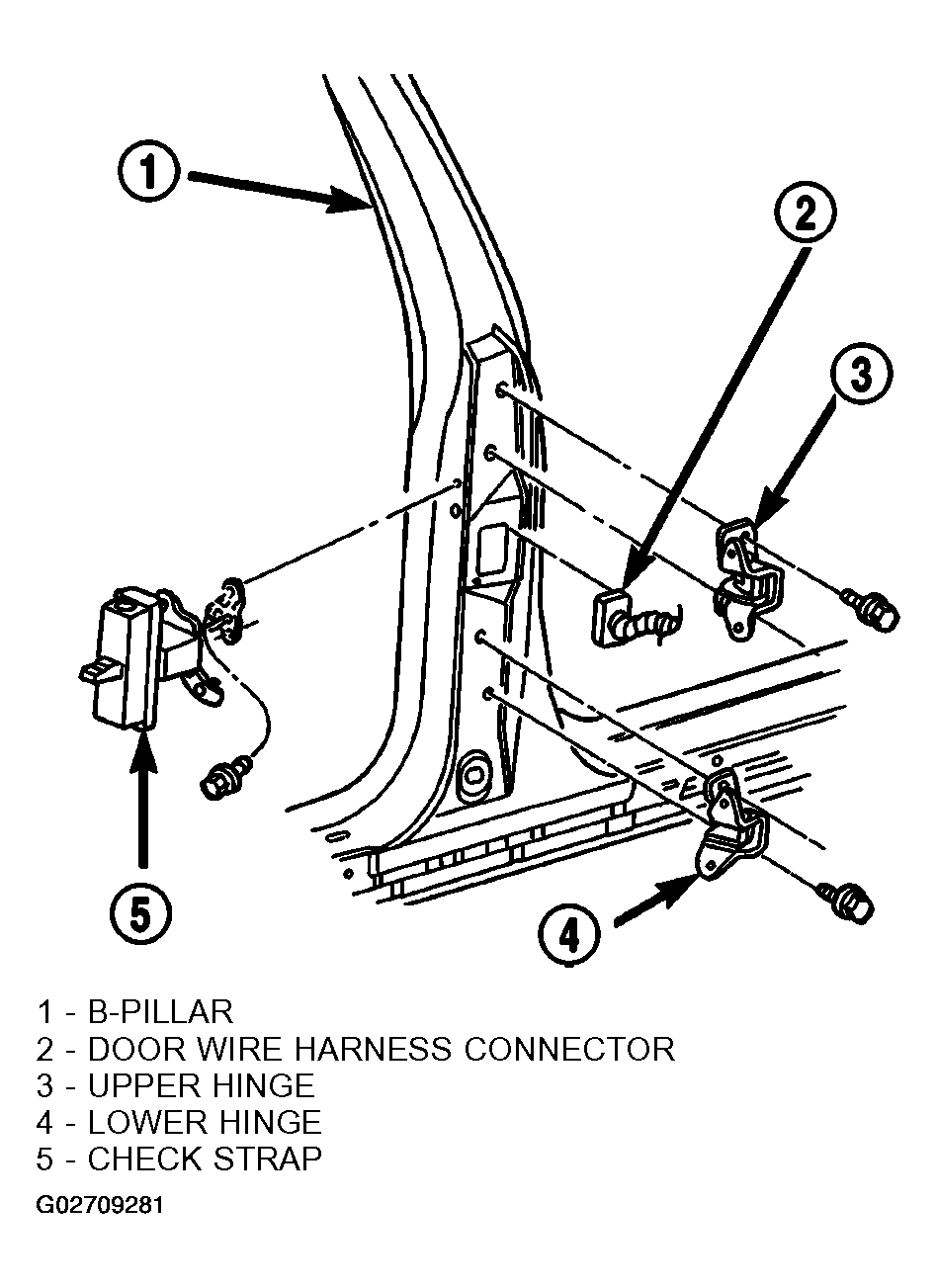

    Fig 1: Removing Rear Door Hinge
    G02709281Courtesy of DAIMLERCHRYSLER CORP.
