Rear Power Module: Removal
WARNING: This page is about a different car, the 2001 Dodge Grand Caravan and 2001 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable. Remove the right quarter trim panel and right D-pillar trim panel from the quarter inner panel:
- Remove rear header trim cover.
- Remove liftgate sill plate.
- Remove second row seat belt turning loop on long wheel base vehicle.
- Remove bolt attaching second row seat belt, anchor to quarter on short wheel base vehicle.
- Disengage hidden clips attaching trim to D-pillar.
- Remove D-pillar trim panel from D-pillar.
- Disconnect speaker wire connector, if equipped.
- Pass second row seat belt, if equipped, through slot in trim panel on short wheel base vehicle.
- Remove D-pillar trim from vehicle.

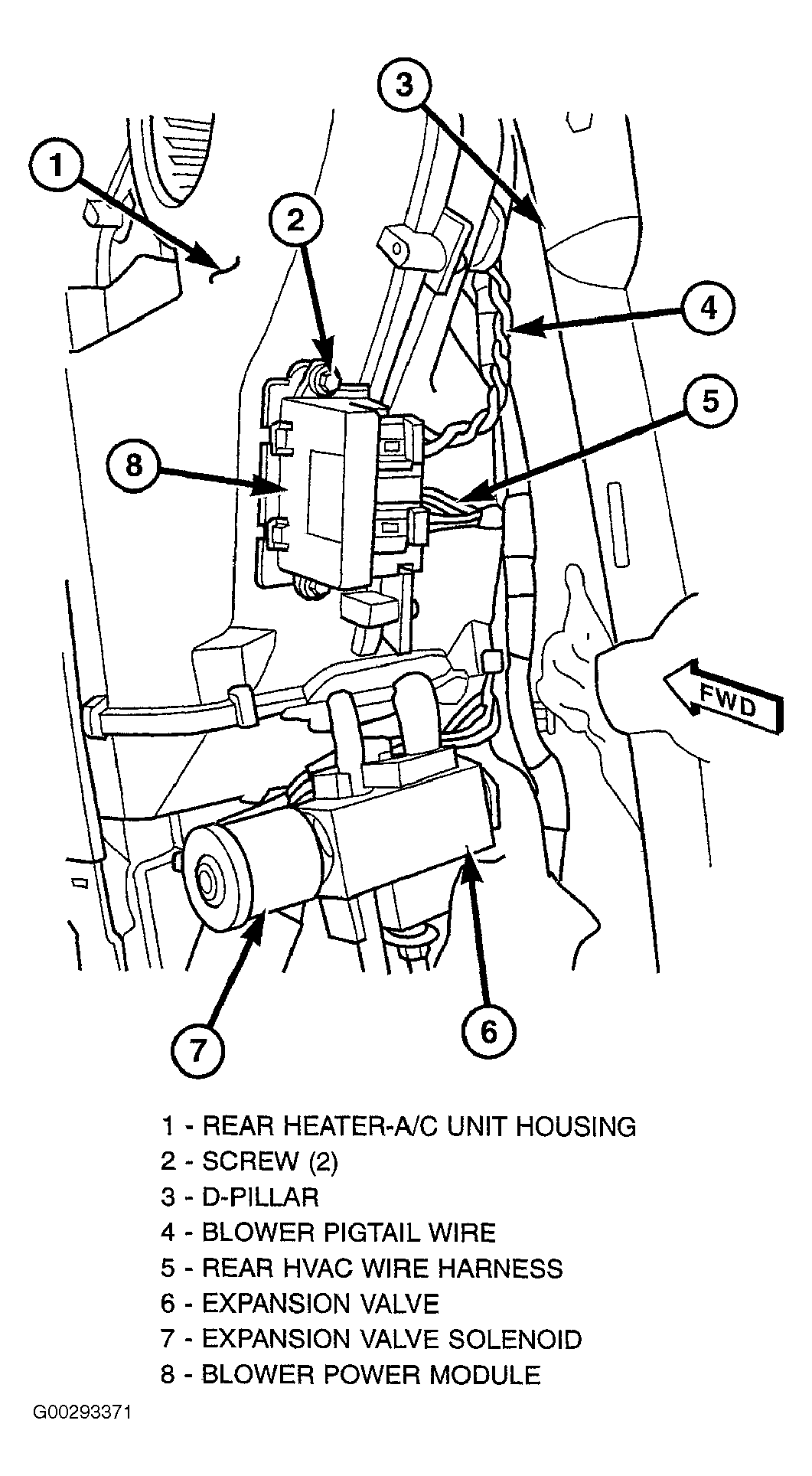

- Disconnect the rear HVAC wire harness connector for the blower power module from the resistor connector receptacle. See Fig 1.
- Disconnect the blower motor pigtail wire connector from the blower power module connector receptacle. Remove the two screws that secure the blower power module to the rear heater-A/C unit housing.
- Remove the blower power module from the rear heater-A/C unit housing.
