Steering Column: Installation

Install steering column onto steering column support bracket. See Fig 2 . Loosely install 2 steering column attaching nuts. Loosely tighten steering column upper mounting nuts to hold column in place. Center steering column into place and install 2 lower support bracket mounting bolts. Equally tighten both upper mounting nuts until steering column mounting bracket is seated against support bracket, then tighten lower mounting bolts. Tighten bolts and nuts to specification. See TORQUE SPECIFICATIONS . See Fig 2 .
Assemble intermediate steering shaft to steering column flex coupler. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure. Ensure clockspring is centered when installed. See CENTERING CLOCKSPRING under ADJUSTMENTS.
If steering column is being replaced, install NEW shift interlock cassette and perform proper adjustment on shift interlock cable. See LOCK CYLINDER & SHIFT INTERLOCK CASSETTE .

CAUTION: Airbag system fasteners, screws and bolts are specifically designed for airbag system. They must never be replaced with any substitutes.

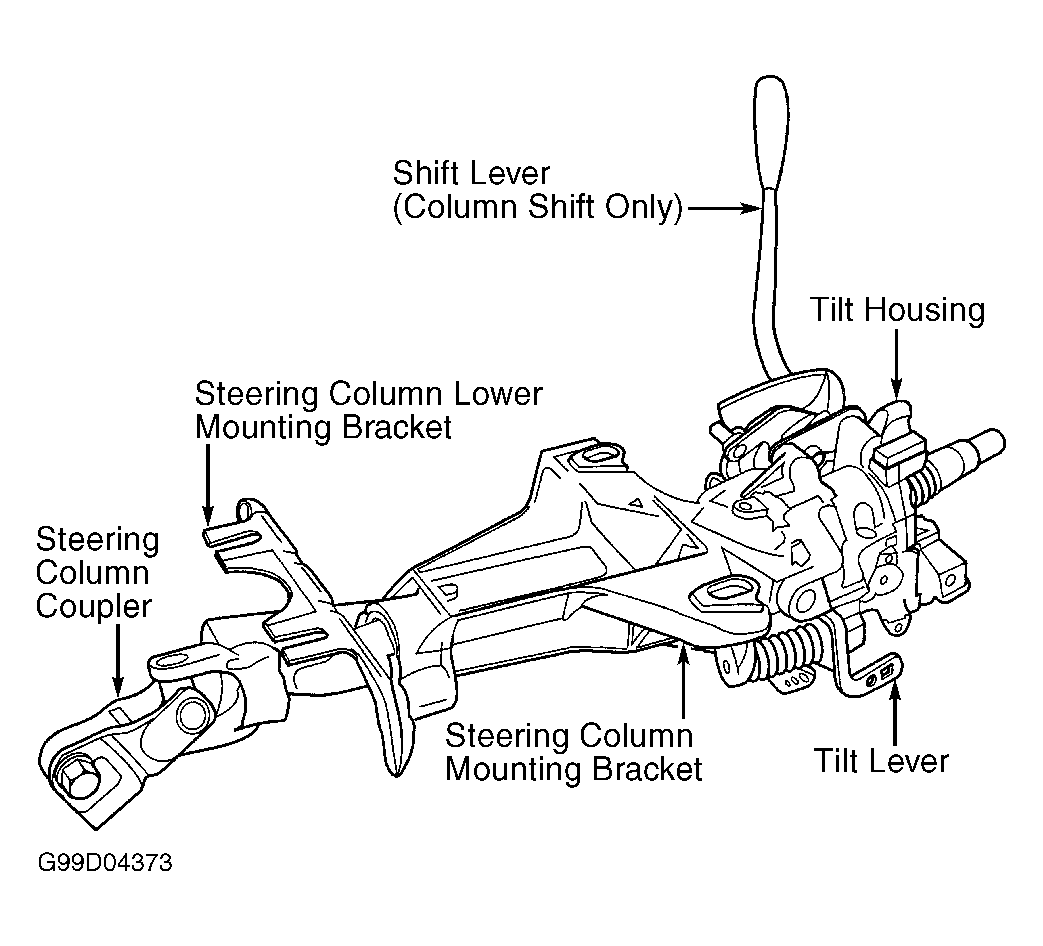

Fig 1: View Of Steering Column Assembly & Coupler

Courtesy of CHRYSLER CORP.

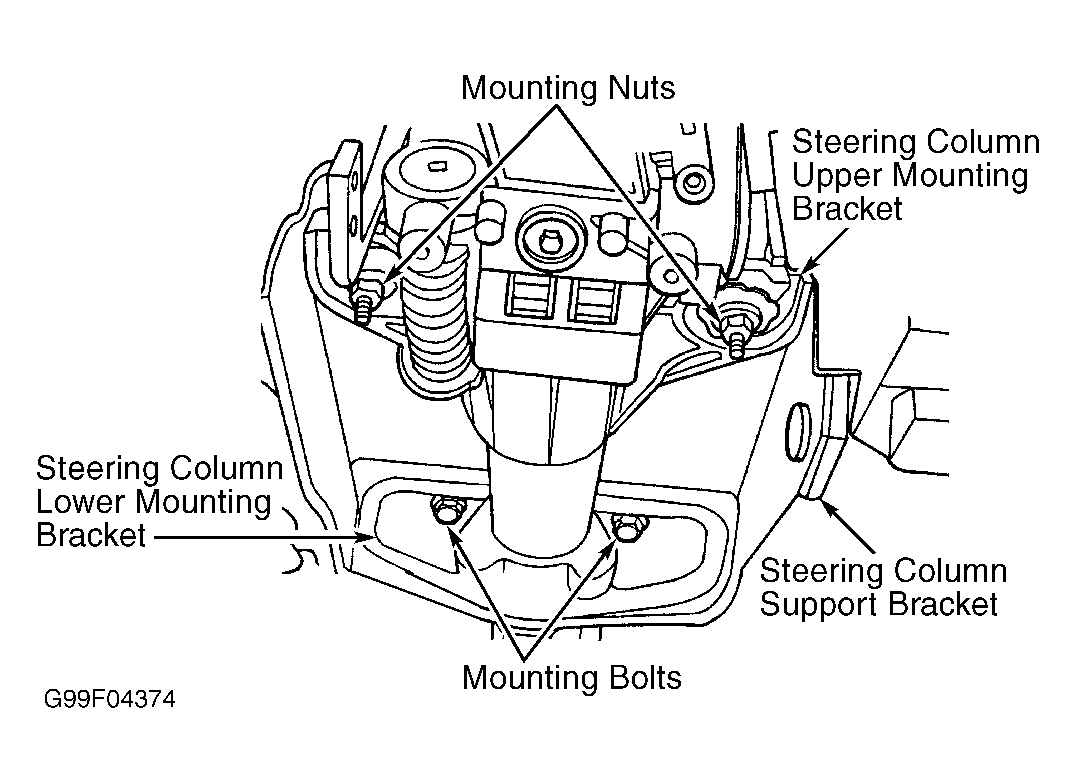

Fig 2: Identifying Steering Column Mounting Brackets

Courtesy of CHRYSLER CORP.

Activate air bag system. Check for proper air bag system function. See DISABLING & ACTIVATING AIR BAG SYSTEM . Check operation of horn and cruise control switches. Road test vehicle to ensure proper operation of steering column and accessories.
