Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

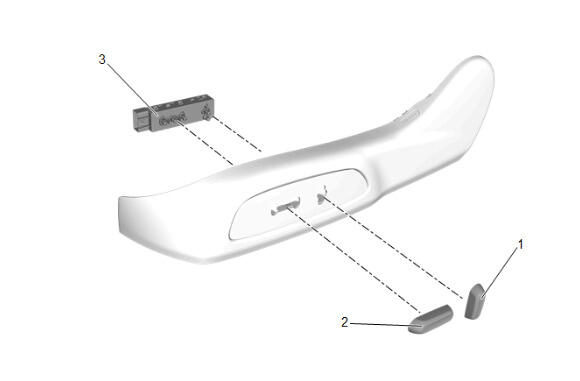

Driver Seat Adjuster Switch (3) - Install
Front Seat Adjuster Switch Knob (2) - Install
Front Seat Recliner Knob (1) - Install
Secure the retaining tabs.
Courtesy of GENERAL MOTORS COMPANY

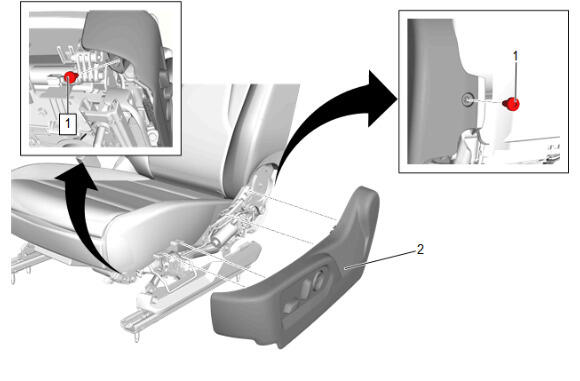

Front Seat Cushion Outer Finish Cover (2) - Install

CAUTION:

Refer to Fastener Caution .

Front Seat Outer Adjuster Front Finish Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
