Fastener Specifications

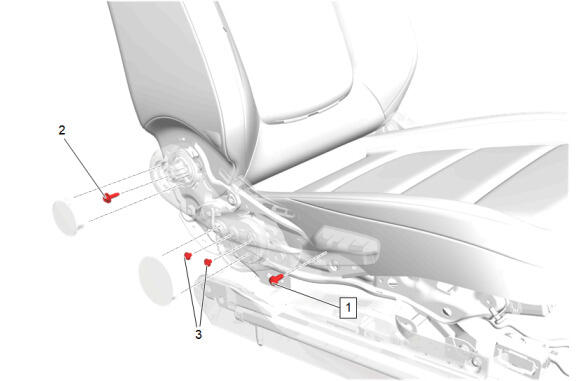

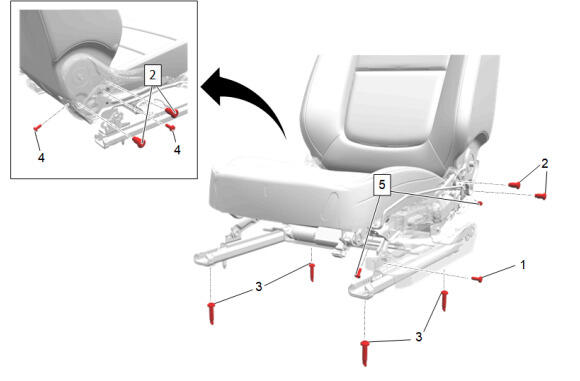

Front Seat - Common
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Adjuster Finish Cover Bolt | - | - | 3 N.m (27 lb in) | Front Seat Adjuster Finish Cover Replacement |
| 2 | Front Seat Back Frame Bolt [4x] | - | Yes | 35 N.m (26 lb ft) | Front Seat Back Frame Replacement |
| 3 | Front Seat Bolt [4x] | - | - | 45 N.m (33 lb ft) | Front Seat Removal and Installation |
| 4 | Front Seat Inner Recliner Finish Cover Bolt [2x] | - | - | 3 N.m (27 lb in) | Front Seat Inner Recliner Finish Cover Replacement |
| 5 | Front Seat Cushion Outer Finish Cover Bolt [2x] | - | - | 4 N.m (35 lb in) | Front Seat Cushion Outer Finish Cover Replacement (Manual) , or Front Seat Cushion Outer Finish Cover Replacement (Power) |
Front Seat - Manual Seat Only
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Cushion Outer Finish Cover Bolt | - | - | 4 N.m (35 lb in) | Front Seat Cushion Outer Finish Cover Replacement (Manual) |
| 2 | Front Seat Recliner Handle Bolt | - | - | 5 N.m (44 lb in) | Front Seat Recliner Handle Replacement |
| 3 | Front Seat Vertical Actuator Handle Bolt [2x] | - | - | 5 N.m (44 lb in) | Front Seat Vertical Actuator Handle Replacement |

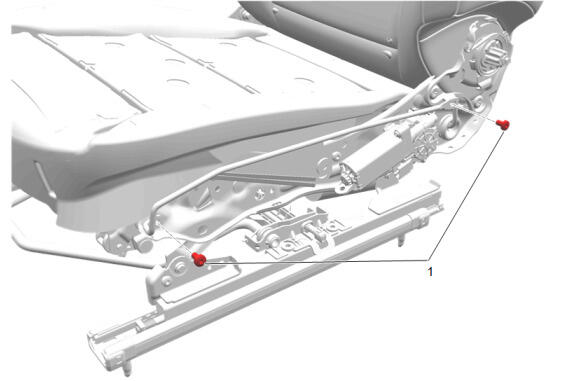

Front Seat - Power Seat Only
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Adjuster Finish Cover Retainer Bolt [2x] | - | - | 4 N.m (35 lb in) | Front Seat Adjuster Finish Cover Retainer Replacement |
| 2 | Front Seat Adjuster Stop [2x] | - | - | - | Front Seat Cushion Frame Replacement (Power) |

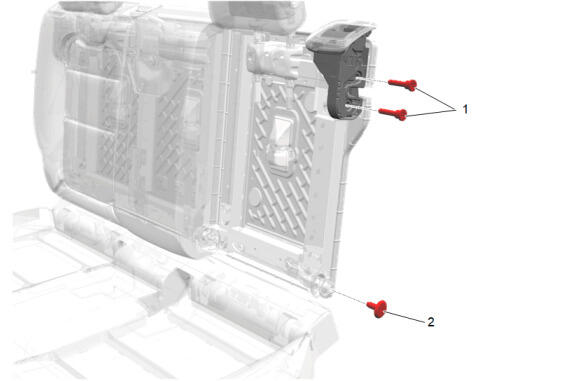

Rear Seat
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Seat Back Latch Bolt [2x] | - | - | 28 N.m (21 lb ft) | Rear Seat Back Latch Replacement (40 Percent Seat) , or Rear Seat Back Latch Replacement (60 Percent Seat without Armrest) , or Rear Seat Back Latch Replacement (60 Percent Seat with Armrest) |
| 2 | Rear Seat Back Outer Pivot Bolt | - | - | 45 N.m (33 lb ft) | Rear Seat Back Frame Replacement (40 Percent Seat) , or Rear Seat Back Frame Replacement (60 Percent Seat without Armrest) , or Rear Seat Back Frame Replacement (60 Percent Seat with Armrest) |
