Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

NOTE:
The correct thread engagement is critical, hand start the fitting. Cross-threaded fittings can achieve proper tightness and still leak.

Transmission Fluid Cooler Pipe Connector (1) @ Transmission - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

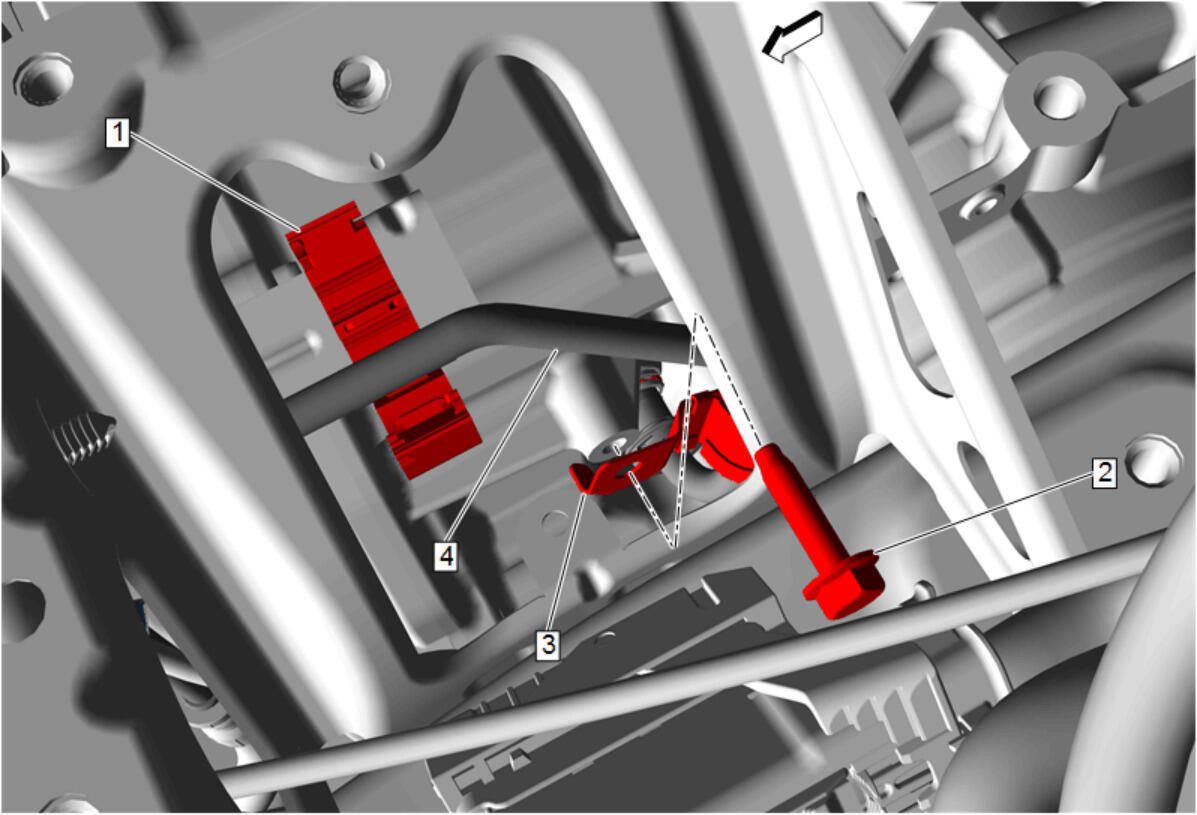

Transmission Fluid Cooler Inlet Pipe (4) @ Transmission - Connect - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
Transmission Fluid Cooler Pipe Bracket (3) - Install
Transmission Fluid Cooler Pipe Bracket Bolt (2) - Install and tighten - Fastener Specifications
Transmission Fluid Cooler Pipe Clip (1) - Clip
Raise the transmission.
Courtesy of GENERAL MOTORS COMPANY

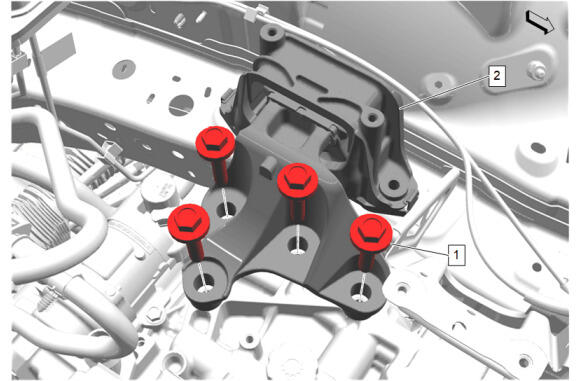

Transmission Mount (2) - Install

CAUTION:

The stated fastener removal or installation sequence must be followed to avoid damage to the components of the mount assembly.

Transmission Mount Transmission Side Bolt (1) - Install and tighten in sequence [4x] - Fastener Specifications and BOLT TIGHTENING SEQUENCE
Courtesy of GENERAL MOTORS COMPANY

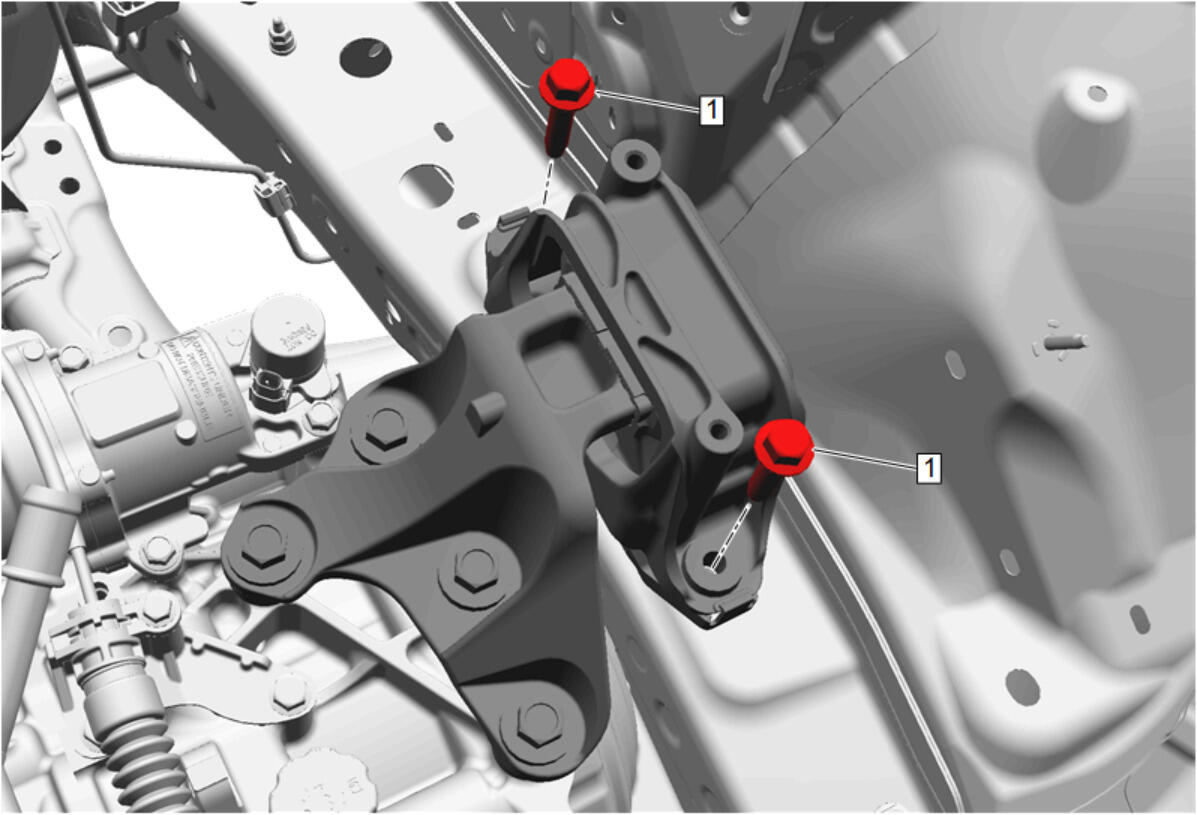

Transmission Mount Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

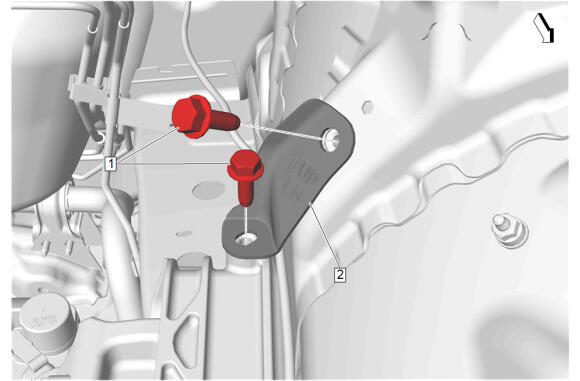

Transmission Mount Brace (2) - Install
Transmission Mount Brace Bolt (1) - Install and tighten [2x] - Fastener Specifications
Remove the transmission jack.
Courtesy of GENERAL MOTORS COMPANY

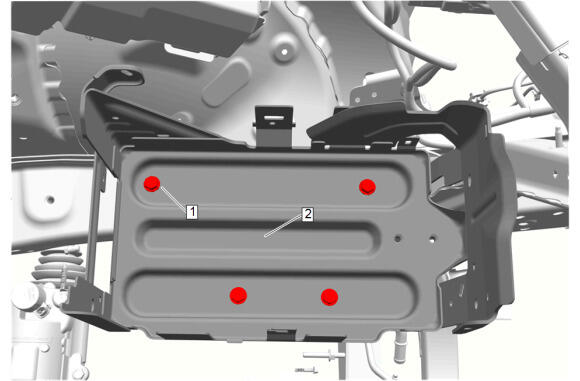

Battery Tray (2) - Install
Install the retainers.
Battery Tray Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

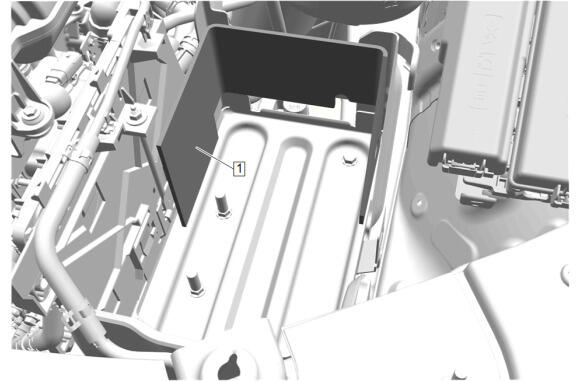

Battery Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

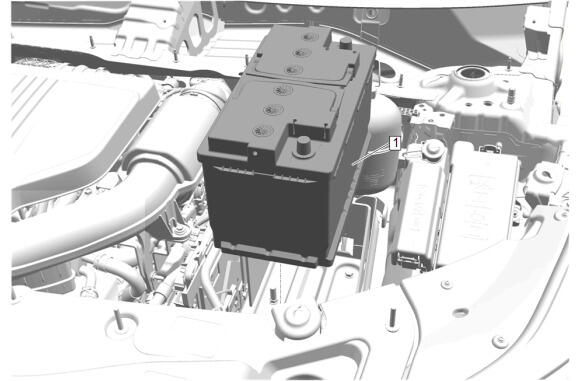

Battery (1) - Install
Courtesy of GENERAL MOTORS COMPANY

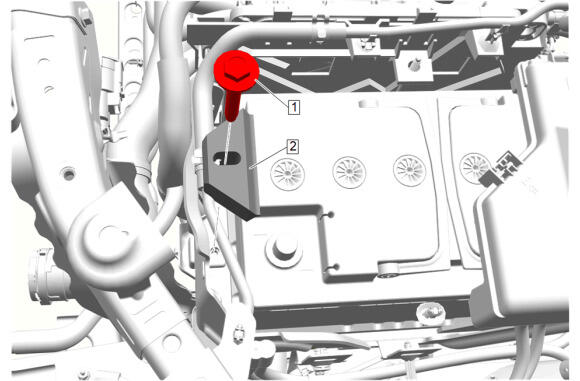

Battery Hold Down Retainer (2) - Install
Battery Hold Down Retainer Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

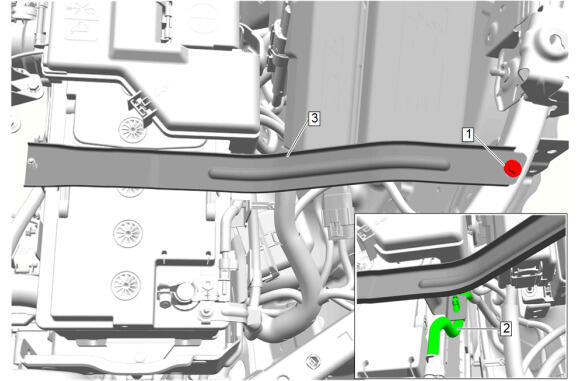

Battery Hold Down Retainer (3) - Install
Install the electrical connector (2).
Battery Hold Down Retainer Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Engine Control Module Bracket (2) - Install
Battery Hold Down Retainer Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the wiring harness retainers as necessary.
Radiator Surge Tank Outlet Hose Clip (1, 2) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Engine Control Module (2) - Install
Connect the electrical connectors. (1)
Courtesy of GENERAL MOTORS COMPANY

Battery Distribution Engine Compartment Fuse Block (5) - Install
Connect the electrical connector.
Install wiring harness terminals.
Battery Negative Post Clamp Nut (4) - Install and tighten - Fastener Specifications
Battery Positive Cable Junction Block Nut (3) - Install and tighten [2x] - Fastener Specifications
Engine Wiring Harness Fuse Block Nut (2) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Power Distributor Fuse Block Cover (1) - Install
Connect the electrical connectors as necessary.
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Fill the transmission to the proper level with NEW transmission fluid. Transmission Fluid Level and Condition Check
Inspect for transmission fluid leaks.
Remove the drain pan.
Install underbody panels as necessary. Underbody Panel Component Locator
